524 WE (31AM63TR756) - Cub Cadet 24" Snow Thrower (2012) .Quick Reference Parts Diagram

24" Snow Thrower

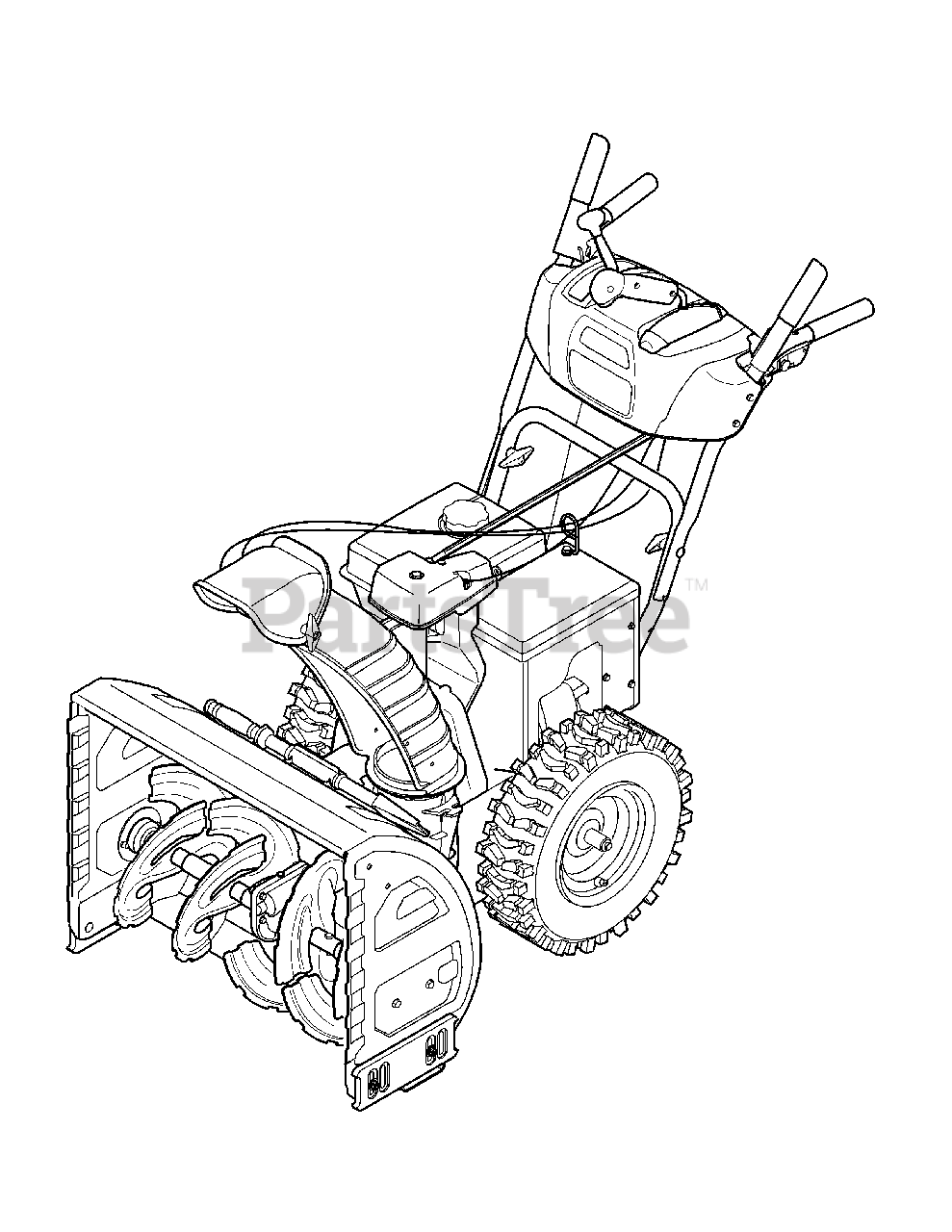

.Quick Reference Parts Diagram

  • Title

Cub Cadet 951-10292

Spark Plug
(Superseded to 951-10292A)

$3.99

$

In Stock, Qty 20+

0

Cub Cadet 951-10630

Key

$6.99

$

In Stock, Qty 6

0

Cub Cadet 929-0071A

Extension Cord
(Superseded to 929-0071B)

$22.99

$

In Stock, Qty 6

0

Cub Cadet 931-2643

Snow Removal Tool

$20.99

$

In Stock, only 2 left!

0

Cub Cadet 946-04229B

Drive Cable

$22.99

$

In Stock, Qty 20+

0

Cub Cadet 946-04230A

Auger Cable
(Superseded to 946-04230B)

$24.99

$

In Stock, Qty 14

0

Cub Cadet 946-04396A

Speed Cable

$21.99

$

In Stock, Qty 18

0

Cub Cadet 684-04107-0637

Auger Assembly - LH
(Superseded to 684-04107A-0637)

$94.99

$

In Stock, only 3 left!

0

Cub Cadet 684-04108-0637

Auger Assembly - RH
(Superseded to 684-04108A-0637)

$100.99

$

In Stock, only 4 left!

0

Cub Cadet 684-04057A-0637

Impeller Assembly
(Superseded to 684-04057C-0637)

$78.99

$

In Stock, Qty 12

0

Cub Cadet 790-00120-4021

Shave Plate
(Superseded to 790-00120-0637)

$36.99

$

In Stock, only 4 left!

0

Cub Cadet 731-06931

Slide Shoe
(Superseded to 731-11514)

$30.99

$

In Stock, only 2 left!

0

Cub Cadet 738-04124A

Shear Pin

$1.99

$

In Stock, Qty 20+

0

Cub Cadet 714-04040

Bow Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

Cub Cadet 925-1629

Lamp

$11.99

$

In Stock, only 3 left!

0

Cub Cadet 954-04050

Auger Drive Belt
(Superseded to 954-04050A)

$28.99

$

In Stock, Qty 12

0

Cub Cadet 954-04260

Wheel Drive Belt

$30.99

$

In Stock, Qty 20+

0

Cub Cadet 684-04153

Friction Wheel Assembly
(Superseded to 684-04153C)

$107.99

$

In Stock, only 2 left!

0

Cub Cadet 935-04054

Friction Wheel Rubber
(Superseded to 935-04054A)

$42.99

$

In Stock, Qty 20+

0

Cub Cadet 634-04147A-0931

Wheel - LH
(Superseded to 634Z07717-0499)

$206.99

$

Usually ships in 0 days

0

Cub Cadet 634-04148A-0931

Wheel - RH

$

$

Not available

Cub Cadet 490-290-0010

Snow Cover

Note: Optional

$49.99

$

In Stock, only 4 left!

0

Cub Cadet 490-241-0032

Snow Cab

Note: Optional

$170.99

$

Usually ships in 3-6 days

0

Cub Cadet 490-241-C034

Garage Floor Mat
(Superseded to 735-04257)

Note: Optional

$

$

Not available

Cub Cadet 490-850-0008

Gas & Oil Siphon

Note: Optional

$19.99

$

In Stock, Qty 9

0
