52431x92A - Murray 52" Garden Tractor (1998) Electrical System Parts Diagram

52" Garden Tractor

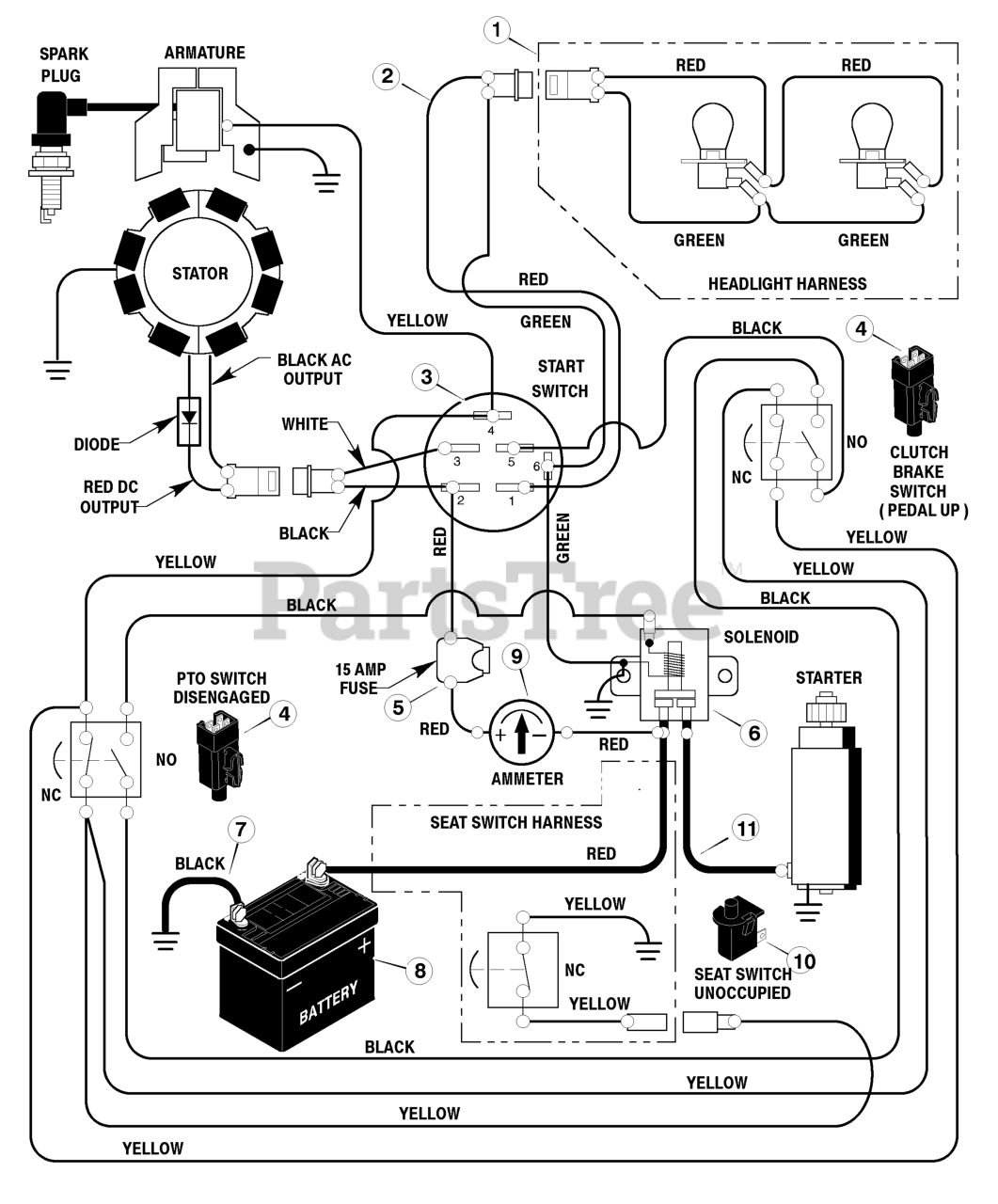

Electrical System Parts Diagram

  • Title

1

Murray 250X40MA

Harness, Light Wire

$27.99

$

Usually ships in 2-12 days

0

--

Murray 092372

Socket, Light

$8.49

$

Usually ships in 2-12 days

0

--

Murray 090084MA

Bulb, Light
(Superseded to 1677371SM)

$32.99

$

Usually ships in 2-12 days

0

2

Murray 250X62

Harness, Chassis Wire

$

$

Currently unavailable

3

Murray 092377MA

Switch, Ignition

$25.99

$

In Stock, only 4 left!

0

--

Murray 020729

Key, Ignition

$5.49

$

In Stock, Qty 7

0

--

Murray 091489MA

Nut, Hex
(Superseded to 847144)

$10.99

$

Usually ships in 2-12 days

0

--

Murray 091488

Cap, Ignition
(Superseded to 091488MA)

$5.49

$

Usually ships in 2-12 days

0

4

Murray 091299MA

Switch, Limit
(Superseded to 1717050SM)

$18.99

$

Usually ships in 2-12 days

0

5

Murray 054212

Fuse

$7.49

$

Usually ships in 2-12 days

0

--

Murray 407078MA

Holder, Fuse

$21.99

$

Usually ships in 2-12 days

0

6

Murray 024285

Solenoid

$

$

Currently unavailable

--

Murray 26X233MA

Screw, Mounting

$3.99

$

Usually ships in 2-12 days

0

--

Murray 15X116MA

Locknut
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

7

Murray 024X30

Cable, Battery Ground

$7.99

$

Usually ships in 2-12 days

0

--

Murray 26X249MA

Screw, Ground Cable

$

$

Not available

8

Murray 021075

Battery

$

$

Not available

--

Murray 001X38MA

Bolt, Hex

$4.49

$

In Stock, Qty 12

0

--

Murray 15X116MA

Locknut
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

9

Murray 093156MA

Ammeter

$8.99

$

Usually ships in 2-12 days

0

10

Murray 091031

Switch, Seat Sensor

$

$

Currently unavailable

11

Murray 024X29MA

Cable

$15.99

$

Usually ships in 2-12 days

0
