52461x89A - Yard King 52" Garden Tractor (1998) Mower Housing Parts Diagram

52" Garden Tractor

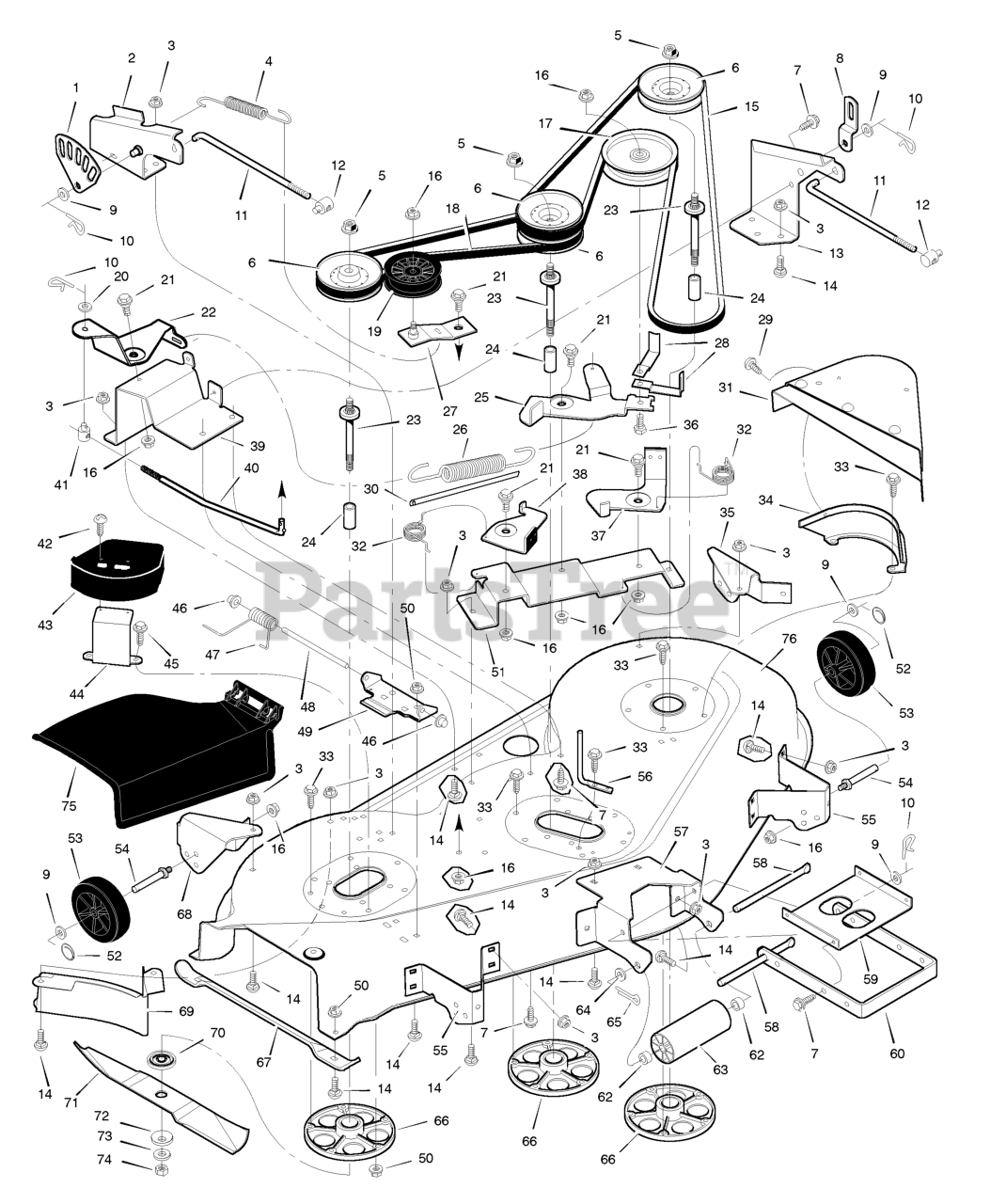

Mower Housing Parts Diagram

  • Title

1

Murray 094822E700

Plate, Adjuster

$

$

Currently unavailable

2

Murray 094818E700

Bracket Assembly, RH Lifter

$

$

Currently unavailable

3

Murray 015X79MA

Nut, Flange
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

4

Murray 165X79MA

Spring, Extension

$6.49

$

In Stock, Qty 10

0

5

Murray 15X121

Nut, Flange

$9.99

$

In Stock, only 1 left!

0

6

Murray 094856

Pulley

$

$

Currently unavailable

7

Murray 26X249MA

Screw

$

$

Not available

8

Murray 094823E700

Link, Suspension

$

$

Currently unavailable

9

Murray 017X91MA

Washer

$5.49

$

In Stock, only 4 left!

0

10

Murray 0031X4MA

Hair Pin
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

11

Murray 092134 Z

Rod, Adjusting

$

$

Currently unavailable

12

Murray 092132MA

NUT, Adjusting, 1/2-13
(Superseded to 092132ZMA)

$14.99

$

Usually ships in 2-12 days

0

13

Murray 094820E701

Bracket Assembly, LH Lifter

$

$

Currently unavailable

14

Murray 002X53MA

Bolt, Carriage
(Superseded to 703159)

$3.99

$

In Stock, Qty 20+

0

15

Murray 037X93MA

Belt, Primary Blade Drive

$64.99

$

In Stock, only 1 left!

0

16

Murray 015X84MA

Nut, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

17

Murray 095068MA

Pulley, Idler

$52.99

$

Usually ships in 2-12 days

0

18

Murray 037X92MA

Belt, Secondary Blade Drive

$27.99

$

In Stock, Qty 5

0

19

Murray 091590

Pulley, Backside Idler

$28.99

$

In Stock, only 1 left!

0

20

Murray 17X124MA

Washer

$4.49

$

Usually ships in 2-12 days

0

21

Murray 009X39MA

Bolt, Shoulder

$6.49

$

In Stock, Qty 10

0

22

Murray 094875E700

Bellcrank, PTO

$

$

Currently unavailable

23

Murray 094129

Shaft, Splined

$21.99

$

In Stock, only 2 left!

0

24

Murray 094130MA

Spacer

$5.99

$

In Stock, only 3 left!

0

25

Murray 094873E700

Arm-Idler, Clutching

$

$

Currently unavailable

26

Murray 165X126MA

Spring, Extension

$17.99

$

Usually ships in 2-12 days

0

27

Murray 94701

Arm Assembly, RH Idler

$

$

Currently unavailable

28

Murray 094809MA

Guide, Belt

$5.49

$

In Stock, only 1 left!

0

29

Murray 26X277MA

Screw

$4.99

$

Usually ships in 2-12 days

0

30

Murray 092163MA

Strip, Indicator

$6.99

$

Usually ships in 2-12 days

0

31

Murray 095044E700

Cover, LH Pulley and Extension

$

$

Currently unavailable

32

Murray 166X41MA

Spring, Torsion

$4.99

$

In Stock, only 1 left!

0

33

Murray 0025X7MA

Screw
(Superseded to 2828635SM)

$4.99

$

In Stock, Qty 20+

0

34

Murray 94643E700

Bracket, Pulley Cover

$

$

Not available

35

Murray 094717E700

Bracket, Left Rear Gauge Wheel

$

$

Not available

36

Murray 01X111MA

Bolt, Idler Pulley

$4.49

$

In Stock, only 1 left!

0

37

Murray 95074

Brake Assembly, Left
(Superseded to 691141)

$3.99

$

In Stock, only 2 left!

0

38

Murray 94698

Brake Assembly, Right

$

$

Currently unavailable

39

Murray 094874E700

Bracket, Bellcrank

$

$

Currently unavailable

40

Murray 094897 Z

Link, PTO

$

$

Currently unavailable

41

Murray 021920ZMA

Nut, Adjusting

$17.99

$

Usually ships in 2-12 days

0

42

Murray 26X250MA

Screw
(Superseded to 703994)

$4.49

$

In Stock, only 3 left!

0

43

Murray 092145MA

Cover, Right Pulley

$17.99

$

Usually ships in 2-12 days

0

44

Murray 094964E700

Bracket, Right Pulley Cover

$

$

Currently unavailable

45

Murray 001X84MA

CAPSCREW, Hex Head, 5/16-18 x 1
(Superseded to 703585)

$4.99

$

In Stock, Qty 16

0

46

Murray 028X23MA

Push On Cap
(Superseded to 703948)

$4.49

$

In Stock, Qty 19

0

47

Murray 166X34MA

Spring, Torsion

$9.49

$

Usually ships in 2-12 days

0

48

Murray 092159ZMA

Rod, Deflector

$

$

Not available

49

Murray 092104E701MA

Bracket, Hinge

$9.99

$

Usually ships in 2-12 days

0

50

Murray 015X88MA

Nut, Flange
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

51

Murray 094699E700

Plate, Brake Arm

$

$

Currently unavailable

52

Murray 031X11MA

Ring, Locking

$4.49

$

In Stock, only 2 left!

0

53

Murray 092683MA

Wheel, Gauge

$15.99

$

In Stock, Qty 10

0

54

Murray 094025MA

BOLT, Gauge Wheel

$11.99

$

In Stock, only 2 left!

0

55

Murray 095180E700

Bracket, Front Gauge Wheel

$

$

Currently unavailable

56

Murray 92424

Guide, Belt

$49.99

$

Usually ships in 2-12 days

0

57

Murray 094693E700MA

Bracket, Front Deck
(Superseded to 7300802DYP)

$66.99

$

Usually ships in 2-12 days

0

58

Murray 94996 Z

Rod, Roller

$

$

Currently unavailable

59

Murray 094604E700

Stiffener

$

$

Currently unavailable

60

Murray 094765E700

Bracket, Front Suspension

$

$

Currently unavailable

62

Murray 091925MA

Spacer

$12.99

$

In Stock, only 2 left!

0

63

Murray 092137MA

Roller

$32.99

$

Usually ships in 2-12 days

0

64

Murray 17X103MA

Washer

$4.99

$

In Stock, Qty 7

0

65

Murray 030X49MA

Pin, Cotter

$4.49

$

In Stock, Qty 12

0

66

Murray 092574

Housing, Jackshaft

$

$

Currently unavailable

67

Murray 94715E700

Guard, Horn

$

$

Currently unavailable

68

Murray 094716E701

Bracket, Right Rear Gauge Wheel

$

$

Not available

69

Murray 094965E700

Baffle, Housing

$

$

Currently unavailable

70

Murray 092466MA

Adapter, Blade

$9.99

$

In Stock, Qty 10

0

71

Murray 094692E701MA

Blade
(Superseded to 721334AYP)

$27.99

$

In Stock, only 2 left!

0

72

Murray 17X166MA

Washer, Belleville

$13.99

$

In Stock, Qty 7

0

73

Murray 17X165MA

Washer

$16.99

$

In Stock, Qty 5

0

74

Murray 15X100MA

Nut, Hex

$3.99

$

In Stock, Qty 7

0

75

Murray 092100MA

Deflector, Chute

$93.99

$

Usually ships in 2-12 days

0

76

Murray 094986E700

Housing, Blade

$

$

Currently unavailable
