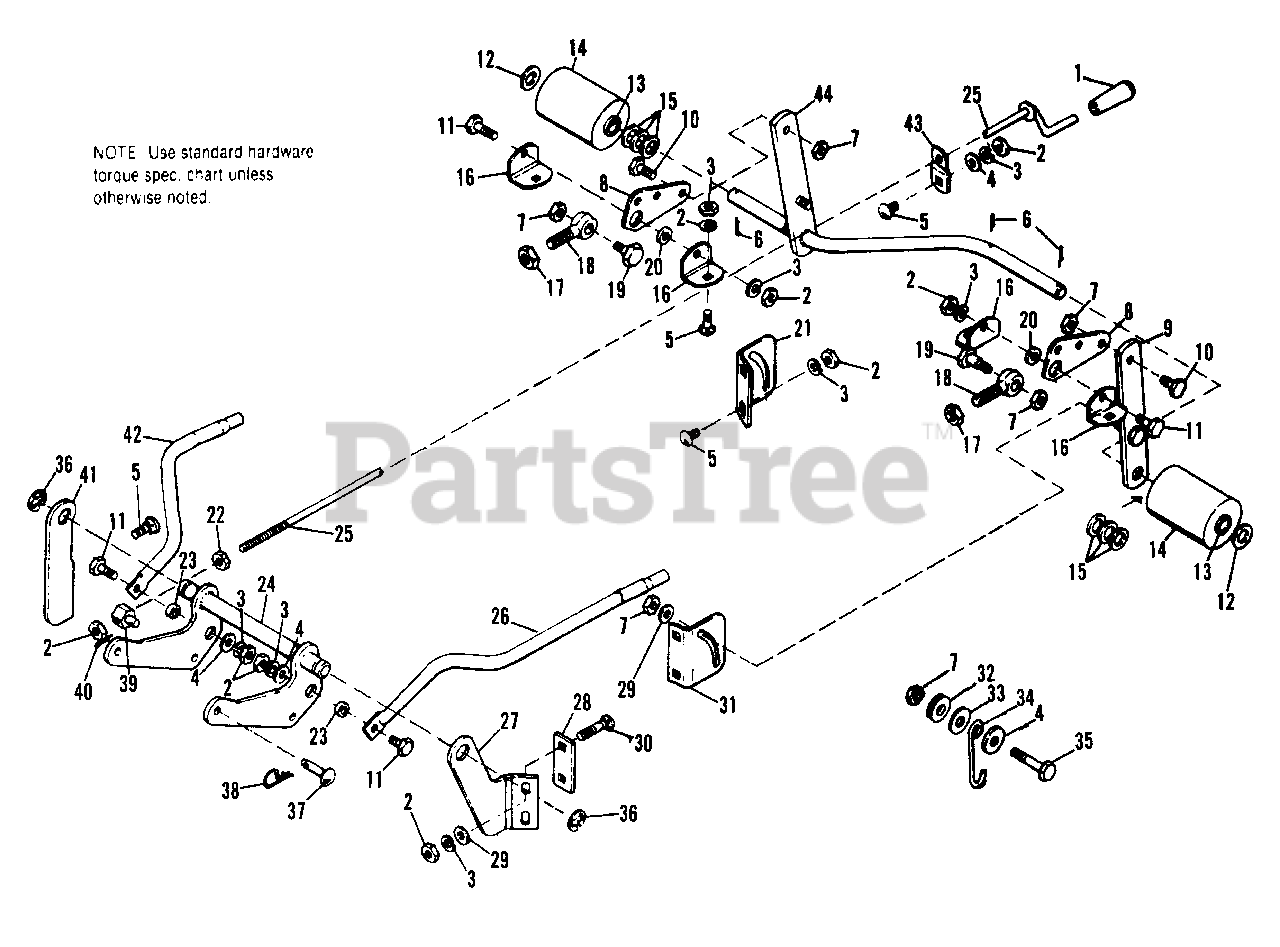

525 (990580) - Simplicity Serf Lawn Tractor, Manual Mower Lift & Hitch Group Parts Diagram

Serf Lawn Tractor, Manual

Mower Lift & Hitch Group Parts Diagram

  • Title

1

Simplicity 108547

CAP, End

$

$

Not available

2

Simplicity 2816950SM

NUT, Hex, Full, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 12

0

3

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 20+

0

4

Simplicity 1924940SM

WASHER, Plain, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

5

Simplicity 2822110

BOLT, Carriage, 3/8-16 x 3/4

$

$

Not available

6

Simplicity 2818458

PIN, Cotter, 3/16 x 1

$

$

Not available

7

Simplicity 1930645SM

LOCKNUT, Hex, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

8

Simplicity 108161

LEVER, Rear

$

$

Not available

9

Simplicity 2108256

BAR ASSY., Roller

$

$

Not available

10

Simplicity 2821966

CAPSCREW, Hex Hd., 3/8-16 x 7/8

$

$

Not available

11

Simplicity 2821210

CAPSCREW, Hex Hd., 3/8-16 x 1

$

$

Not available

12

Simplicity 2116001

WASHER

$

$

Not available

13

Simplicity 2108419

BUSHING

$

$

Not available

14

Simplicity 1668513SM

ROLLER ASSY.

$11.99

$

In Stock, Qty 20+

0

15

Simplicity 2860164SM

WASHER

$4.49

$

In Stock, only 3 left!

0

16

Simplicity 108513

BRACKET, Pivot

$

$

Not available

17

Simplicity 2819262

LOCKNUT, Hex, Jam, 1/2-20

$

$

Not available

18

Simplicity 2157215SM

EYEBOLT

$

$

Not available

19

Simplicity 2108412

BOLT, Shoulder

$

$

Not available

20

Simplicity 108511

SPACER

$

$

Not available

21

Simplicity 108517

BRACKET, Roller, R.H.

$

$

Not available

22

Simplicity 2817421

LOCKNUT, Hex, Jam, 3/8-16

$

$

Not available

23

Simplicity 2121349

SPACER

$

$

Not available

24

Simplicity 108552

HITCH ASSY., Mower

$

$

Not available

25

Simplicity 108526

SCREW ASSY., Adjusting

$

$

Not available

26

Simplicity 108520

ARM, Adjusting, L.H.

$

$

Not available

27

Simplicity 108518

BRACKET, Front, L.H.

$

$

Not available

28

Simplicity 108509

SPACER

$

$

Not available

29

Simplicity 2817642

WASHER, Plain, 5/16

$

$

Not available

30

Simplicity 2821933

BOLT, Carriage, 3/8-16 x 1-1/4

$

$

Not available

31

Simplicity 108516

BRACKET, Roller, L.H.

$

$

Not available

32

Simplicity 930667

LOCKWASHER, Double, 3/8

$

$

Not available

33

Simplicity 2159134

WASHER, Nylon

$

$

Not available

34

Simplicity 108551

LIFT, Mower

$

$

Not available

35

Simplicity 1920415SM

CAPSCREW, Hex Hd., 3/8-16 x 1-1/4
(Superseded to 5025013X10SM)

$4.49

$

In Stock, Qty 20+

0

36

Simplicity 2157286

RING, Retaining

$

$

Not available

37

Simplicity 2156306SM

PIN

$7.99

$

In Stock, Qty 7

0

38

Simplicity 1918196SM

CLIP, Spring
(Superseded to 5025210YP)

$3.99

$

In Stock, Qty 20+

0

39

Simplicity 2108512SM

PIVOT

$37.99

$

In Stock, Qty 5

0

40

Simplicity 2818447

PIN, Cotter, 3/32 x 3/4

$

$

Not available

41

Simplicity 108519

BRACKET, Front, R.H.

$

$

Not available

42

Simplicity 108521

ARM, Adjusting, R.H.

$

$

Not available

43

Simplicity 108510

BRACKET, Screw, Adjusting

$

$

Not available

44

Simplicity 108528

SHAFT ASSY., Roller Bar

$

$

Not available
