525 BX (967284201) - Husqvarna Handheld Blower (2015-01) CYLINDER Parts Diagram

Handheld Blower

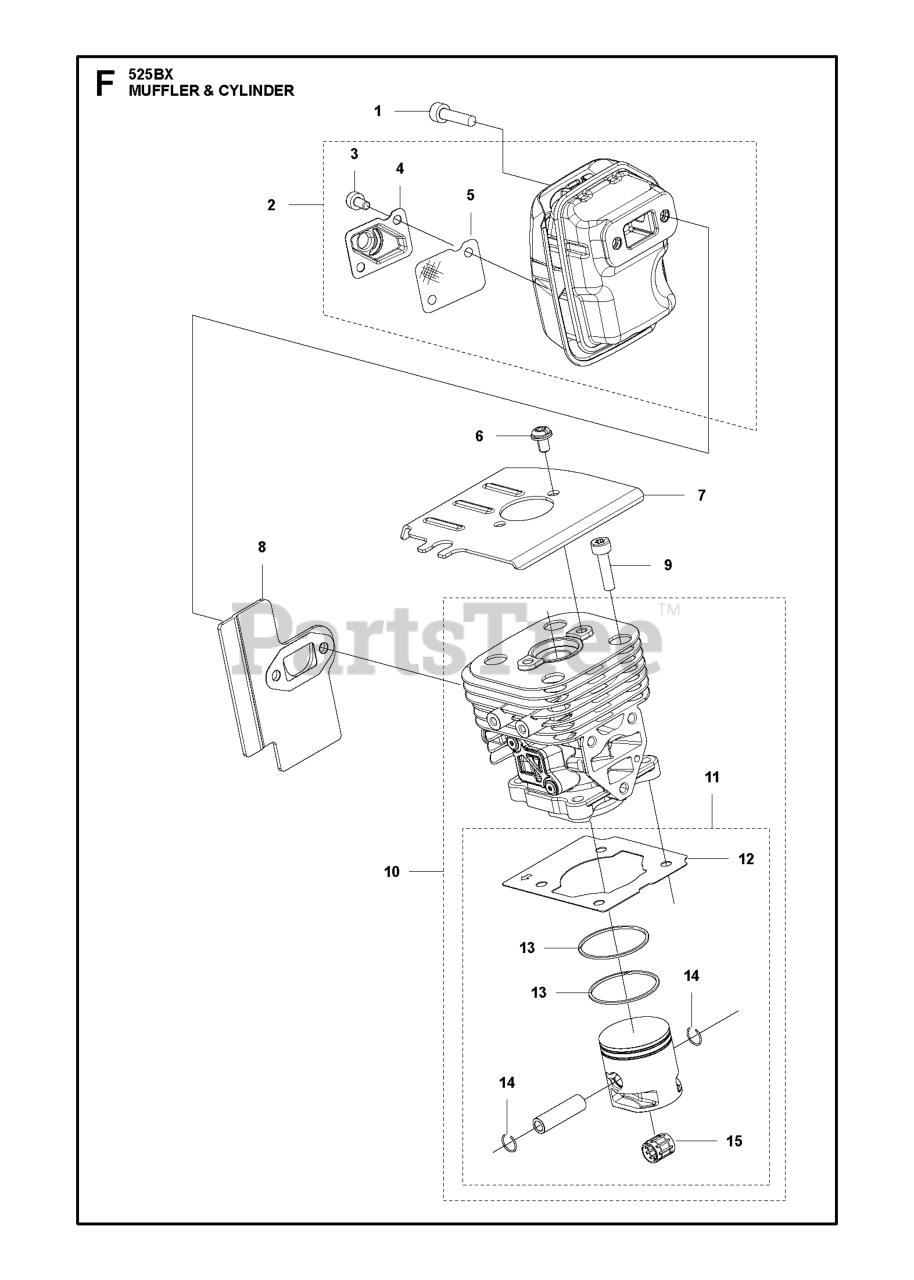

CYLINDER Parts Diagram

  • Title

1

Husqvarna 504114301

BOLT
(Superseded to 506689001)

$4.99

$

In Stock, Qty 20+

0

2

Husqvarna 585627401

MUFFLER ASSY
(Superseded to 585627403)

$131.99

$

Usually ships in 3-10 days

0

3

Husqvarna 544362701

BOLT

Note: . 2

$3.99

$

In Stock, Qty 12

0

4

Husqvarna 585630301

EXHAUST COVER

Note: . 2

$17.99

$

Usually ships in 3-10 days

0

5

Husqvarna 585630201

SPARK ARRESTER

Note: . 2

$5.99

$

Usually ships in 3-10 days

0

6

Husqvarna 544256801

SCREW

$3.99

$

In Stock, Qty 12

0

7

Husqvarna 585601901

PLATE CYLINDER

$7.49

$

Usually ships in 3-10 days

0

8

Husqvarna 585603901

GASKET MUFFLER

$14.99

$

Usually ships in 3-10 days

0

9

Husqvarna 504114301

BOLT
(Superseded to 506689001)

$4.99

$

In Stock, Qty 20+

0

10

Husqvarna 588098201

KIT CYLINDER & PISTON

$131.99

$

In Stock, only 1 left!

0

11

Husqvarna 588098101

KIT PISTON

Note: . 10

$59.99

$

Usually ships in 3-10 days

0

12

Husqvarna 585601801

GASKET BASE

Note: . 11

$3.99

$

Usually ships in 3-10 days

0

13

Husqvarna 506618101

RING

Note: . 11

$8.49

$

In Stock, Qty 20+

0

14

Husqvarna 505045201

RING

Note: . 11

$2.49

$

In Stock, only 2 left!

0

15

Husqvarna 576402701

BEARING

Note: . 11

$14.99

$

In Stock, only 1 left!

0
