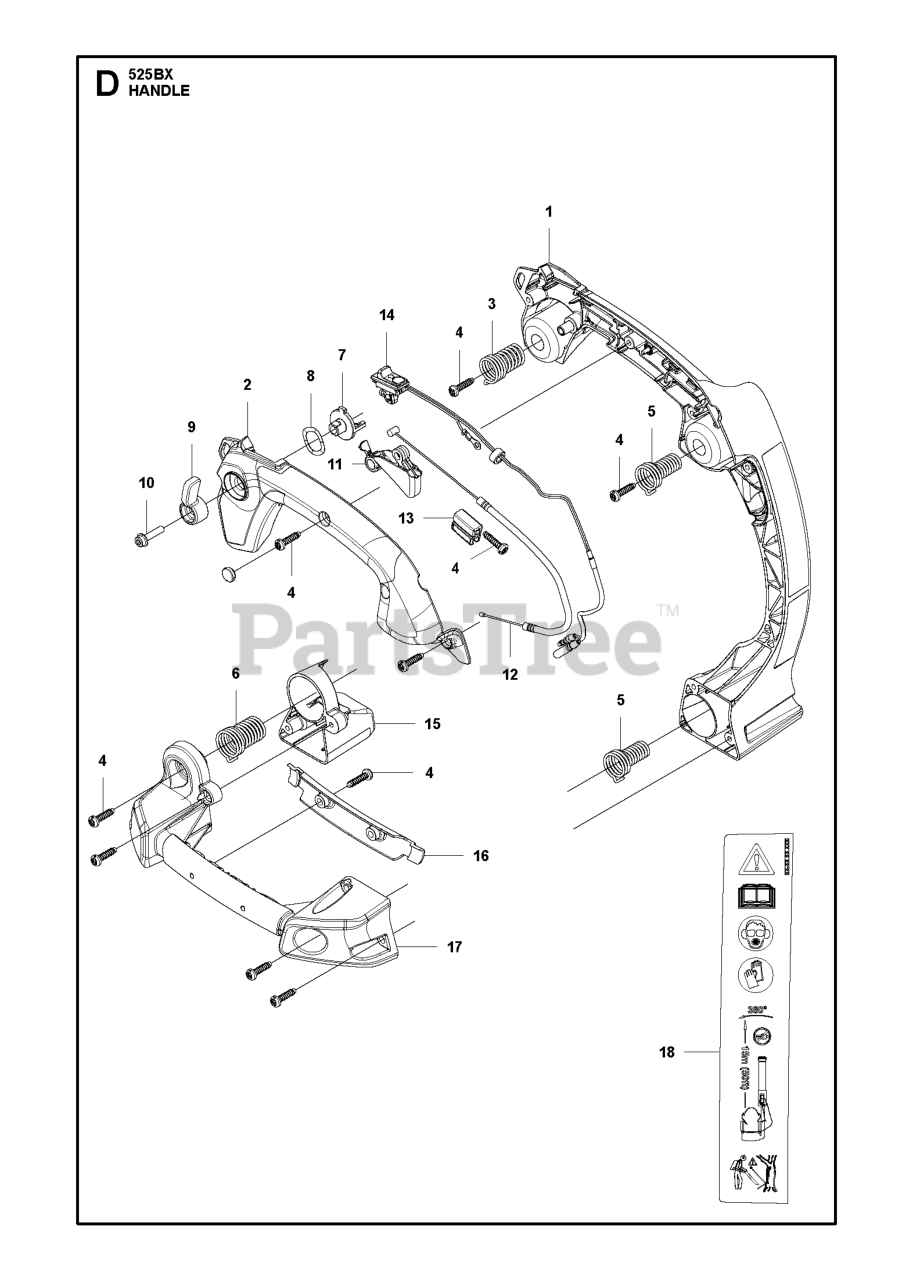

525 BX (967284201) - Husqvarna Handheld Blower (2015-01) HANDLE Parts Diagram

Handheld Blower

HANDLE Parts Diagram

  • Title

1

Husqvarna 585624001

HANDLE RIGHT

$41.99

$

Usually ships in 3-10 days

0

2

Husqvarna 585624101

HANDLE LEFT

$29.99

$

Usually ships in 3-10 days

0

3

Husqvarna 587110401

SPRING
(Superseded to 587110402)

$5.99

$

In Stock, only 2 left!

0

4

Husqvarna 521863601

SCREW, TORX (RPLS T4970-52001)

$2.49

$

Usually ships in 3-10 days

0

5

Husqvarna 585623901

SPRING

$

$

Not available

6

Husqvarna 587110301

SPRING
(Superseded to 587110302)

$5.99

$

Usually ships in 3-10 days

0

7

Husqvarna 585624701

RATCHET

$5.99

$

Usually ships in 3-10 days

0

8

Husqvarna 585624801

WASHER

$3.99

$

In Stock, only 3 left!

0

9

Husqvarna 585624601

CONTROL LEVER

$7.49

$

Usually ships in 3-10 days

0

10

Husqvarna 506745201

BOLT

$4.99

$

In Stock, Qty 13

0

11

Husqvarna 585624501

THROTTLE LEVER

$7.49

$

Usually ships in 3-10 days

0

12

Husqvarna 585625001

THROTTLE CABLE

$13.99

$

In Stock, Qty 6

0

13

Husqvarna 585625101

ADJUSTER

$4.99

$

Usually ships in 3-10 days

0

14

Husqvarna 585624901

CORD COMP

$

$

Not available

15

Husqvarna 585624301

HANDLE SUPPORT REAR

$21.99

$

Usually ships in 3-10 days

0

16

Husqvarna 585624401

HANDLE SUPPORT COVER

$5.99

$

In Stock, only 2 left!

0

17

Husqvarna 585624201

HANDLE SUPPORT

$27.99

$

In Stock, only 1 left!

0

18

Husqvarna 587243001

LABEL WARNING

$5.99

$

Usually ships in 3-10 days

0
