525 HE 3 - Husqvarna Hedge Trimmer IGNITION SYSTEM & CLUTCH Parts Diagram

Hedge Trimmer

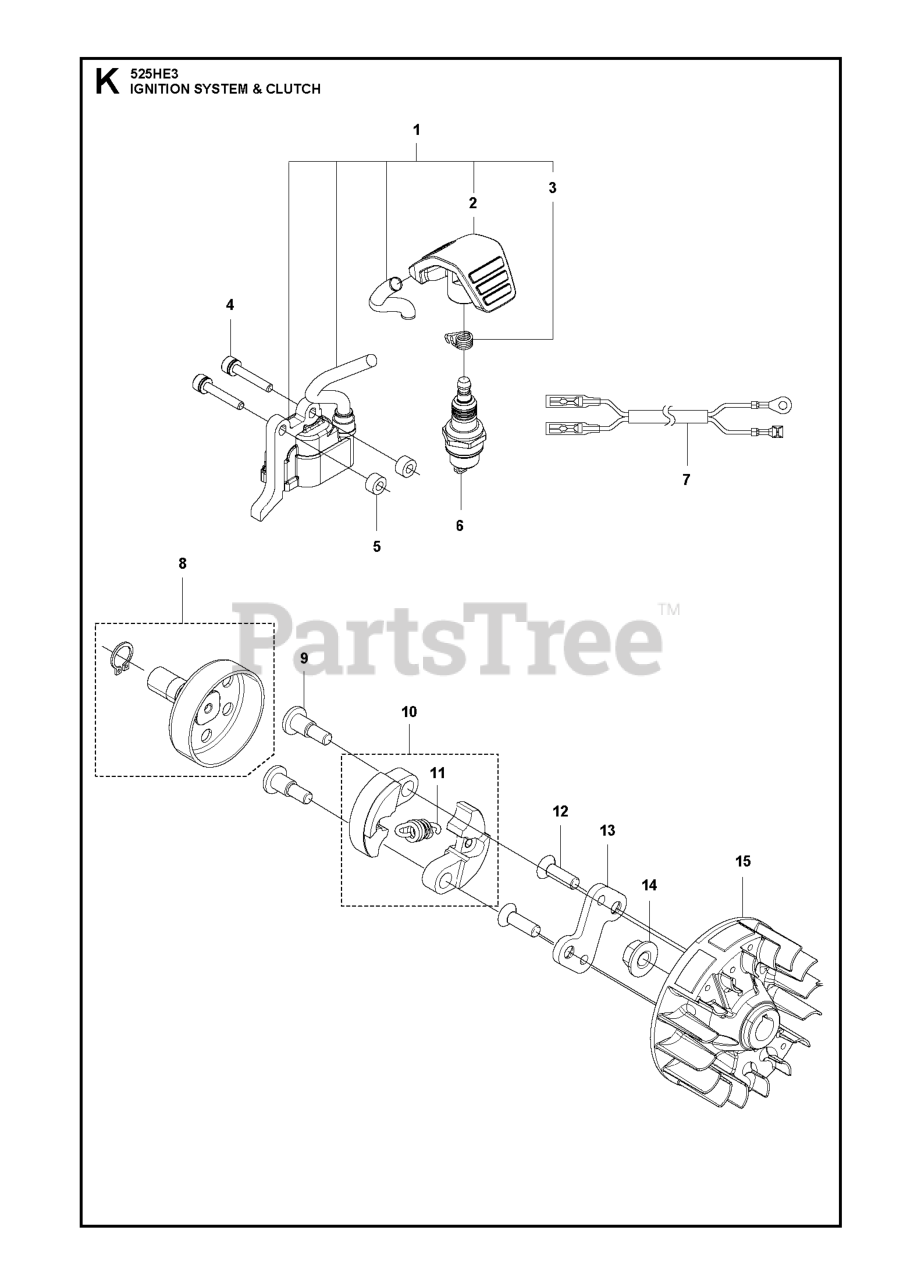

IGNITION SYSTEM & CLUTCH Parts Diagram

  • Title

14

Husqvarna 504118001

NUT
(Superseded to 516437401)

$

$

Not available

11

Husqvarna 503145101

CLUTCH SPRING

$12.99

$

In Stock, Qty 17

0

13

Husqvarna 580355401

CLUTCH HUB

$10.99

$

Usually ships in 3-10 days

0

15

Husqvarna 578967801

FLYWHEEL

$95.99

$

Usually ships in 3-10 days

0

1

Husqvarna 588141201

IGNITION COIL ASSY

$95.99

$

In Stock, only 2 left!

0

4

Husqvarna 521515801

BOLT M4 X 25

$3.49

$

Usually ships in 3-10 days

0

9

Husqvarna 525615401

SCREW CLUTCH

$3.99

$

Usually ships in 3-10 days

0

7

Husqvarna 587188701

SHORT CIRCUIT CABLE

$11.99

$

Usually ships in 3-10 days

0

8

Husqvarna 586829701

KIT CLUTCH DRUM ASSY

$35.99

$

Usually ships in 3-10 days

0

2

Husqvarna 586107201

SPARK PLUG CAP

$11.99

$

In Stock, only 3 left!

0

10

Husqvarna 537040102

CLUTCH

$47.99

$

Usually ships in 3-10 days

0

6

Husqvarna 590710101

SPARK PLUG HQT-2 RESISTOR

Note: HQT-2

$8.49

$

In Stock, Qty 20+

0

12

Husqvarna 580429201

SCREW

$3.99

$

Usually ships in 3-10 days

0

5

Husqvarna 588171401

SPACER

$3.99

$

In Stock, Qty 14

0

3

Husqvarna 588176201

SPRING

$4.99

$

Usually ships in 3-10 days

0
