525 HE 4 - Husqvarna Hedge Trimmer CARBURETOR Parts Diagram

Hedge Trimmer

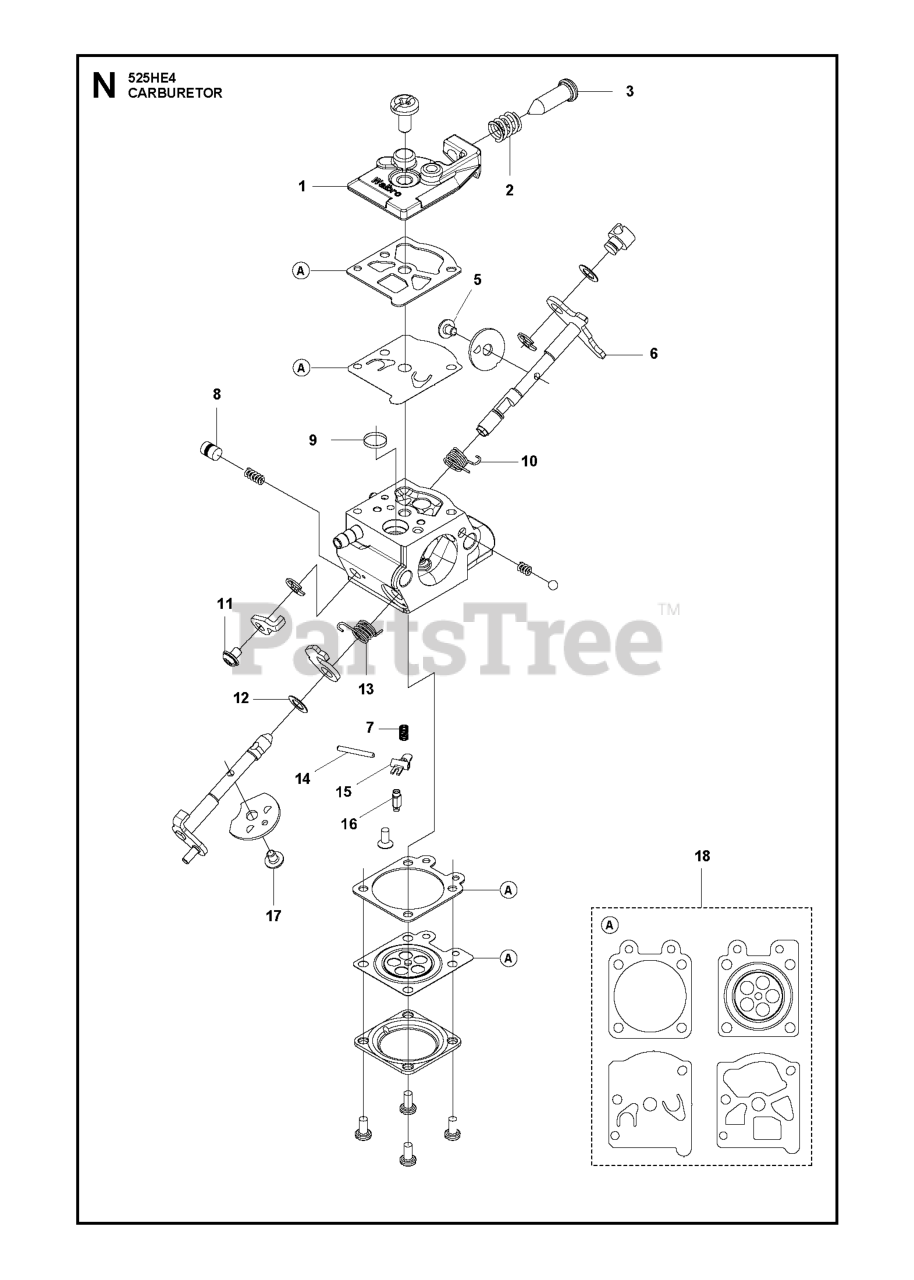

CARBURETOR Parts Diagram

  • Title

3

Husqvarna 577815701

SCREW, IDLE

$11.99

$

Usually ships in 3-10 days

0

13

Husqvarna 579191101

SPRING

$10.99

$

Usually ships in 3-10 days

0

18

Husqvarna 580684801

GASKET KIT

Note: Gasket & Diaphragm kit

$60.99

$

In Stock, only 1 left!

0

2

Husqvarna 513593201

SPRING

$6.49

$

Usually ships in 3-10 days

0

16

Husqvarna 521085401

VALVE INLET

$27.99

$

Usually ships in 3-10 days

0

7

Husqvarna 578895401

SPRING

$3.99

$

Usually ships in 3-10 days

0

6

Husqvarna 579190701

SHAFT ASSEMBLY,THROTTLE

$36.99

$

Usually ships in 3-10 days

0

8

Husqvarna 584901201

PISTON ASSY

$14.99

$

Usually ships in 3-10 days

0

11

Husqvarna 520759801

SCREW

$3.99

$

Usually ships in 3-10 days

0

9

Husqvarna 520957001

SCREEN
(Superseded to 574012501)

$4.99

$

Usually ships in 3-10 days

0

5

Husqvarna 520759801

SCREW

$3.99

$

Usually ships in 3-10 days

0

1

Husqvarna 579190601

COVER PUMP

$44.99

$

In Stock, only 1 left!

0

17

Husqvarna 520759801

SCREW

$3.99

$

Usually ships in 3-10 days

0

10

Husqvarna 577815501

SPRING

$6.49

$

Usually ships in 3-10 days

0

12

Husqvarna 516524201

WASHER

$3.99

$

In Stock, only 2 left!

0

14

Husqvarna 520977401

PIN

$6.49

$

Usually ships in 3-10 days

0

15

Husqvarna 577807201

LEVER

$2.49

$

Usually ships in 3-10 days

0
