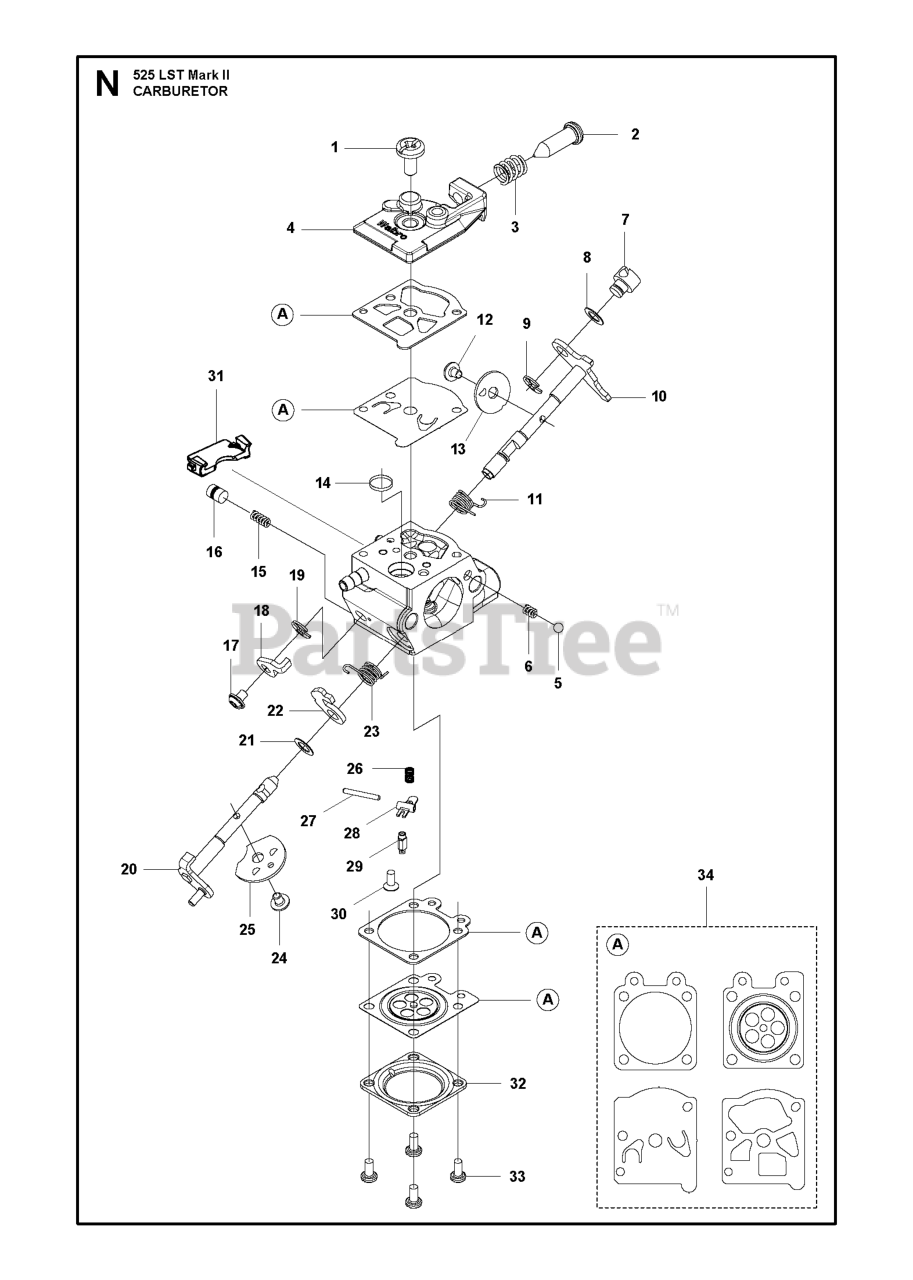

525 LST Mark II - Husqvarna Brush Cutter CARBURETOR Parts Diagram

Brush Cutter

CARBURETOR Parts Diagram

  • Title

27

Husqvarna 520977401

PIN

$6.49

$

Usually ships in 3-10 days

0

22

Husqvarna 584901301

LEVER

$34.99

$

Usually ships in 3-10 days

0

6

Husqvarna 514243301

CHOKE SPRING

$10.99

$

Usually ships in 3-10 days

0

11

Husqvarna 577815501

SPRING

$6.49

$

Usually ships in 3-10 days

0

24

Husqvarna 520759801

SCREW

$3.99

$

Usually ships in 3-10 days

0

3

Husqvarna 513593201

SPRING

$6.49

$

Usually ships in 3-10 days

0

18

Husqvarna 579190801

LEVER THROTTLE

$36.99

$

Usually ships in 3-10 days

0

19

Husqvarna 505056501

E-RING

$2.49

$

Usually ships in 3-10 days

0

14

Husqvarna 520957001

SCREEN
(Superseded to 574012501)

$4.99

$

Usually ships in 3-10 days

0

8

Husqvarna 516524201

WASHER

$3.99

$

In Stock, only 2 left!

0

5

Husqvarna 514242601

BALL

$8.99

$

In Stock, only 1 left!

0

2

Husqvarna 577815701

SCREW, IDLE

$11.99

$

Usually ships in 3-10 days

0

34

Husqvarna 580684801

GASKET KIT

$60.99

$

In Stock, only 1 left!

0

23

Husqvarna 579191101

SPRING

$10.99

$

Usually ships in 3-10 days

0

10

Husqvarna 579190701

SHAFT ASSEMBLY,THROTTLE

$36.99

$

Usually ships in 3-10 days

0

25

Husqvarna 529878001

VALVE CHOKE

$2.49

$

Usually ships in 3-10 days

0

17

Husqvarna 520759801

SCREW

$3.99

$

Usually ships in 3-10 days

0

15

Husqvarna 505057901

SPRING

$4.99

$

Usually ships in 3-10 days

0

32

Husqvarna 514189201

COVER

$10.99

$

Usually ships in 3-10 days

0

20

Husqvarna 579191001

SHAFT ASSEMBLY,CHOKE

$34.99

$

Usually ships in 3-10 days

0

31

Husqvarna 529878101

PLATE

$6.99

$

Usually ships in 3-10 days

0

13

Husqvarna 514251901

VALVE, THROTTLE

$9.99

$

Usually ships in 3-10 days

0

4

Husqvarna 579190601

COVER PUMP

$44.99

$

In Stock, only 1 left!

0

33

Husqvarna 520978801

SCREW ASSY

$3.99

$

Usually ships in 3-10 days

0

7

Husqvarna 513400801

SWIVEL

$27.99

$

Usually ships in 3-10 days

0

16

Husqvarna 521578301

PISTON

$

$

Not available

21

Husqvarna 516524201

WASHER

$3.99

$

In Stock, only 2 left!

0

28

Husqvarna 577807201

LEVER

$2.49

$

Usually ships in 3-10 days

0

29

Husqvarna 521085401

VALVE INLET

$27.99

$

Usually ships in 3-10 days

0

12

Husqvarna 520759801

SCREW

$3.99

$

Usually ships in 3-10 days

0

1

Husqvarna 520976301

SCREW

$4.99

$

Usually ships in 3-10 days

0

26

Husqvarna 578895401

SPRING

$3.99

$

Usually ships in 3-10 days

0

30

Husqvarna 577807101

SCREW

$3.99

$

Usually ships in 3-10 days

0

9

Husqvarna 506738601

RING

$2.49

$

Usually ships in 3-10 days

0
