525 LX - Husqvarna Brush Cutter SHORT BLOCK Parts Diagram

Brush Cutter

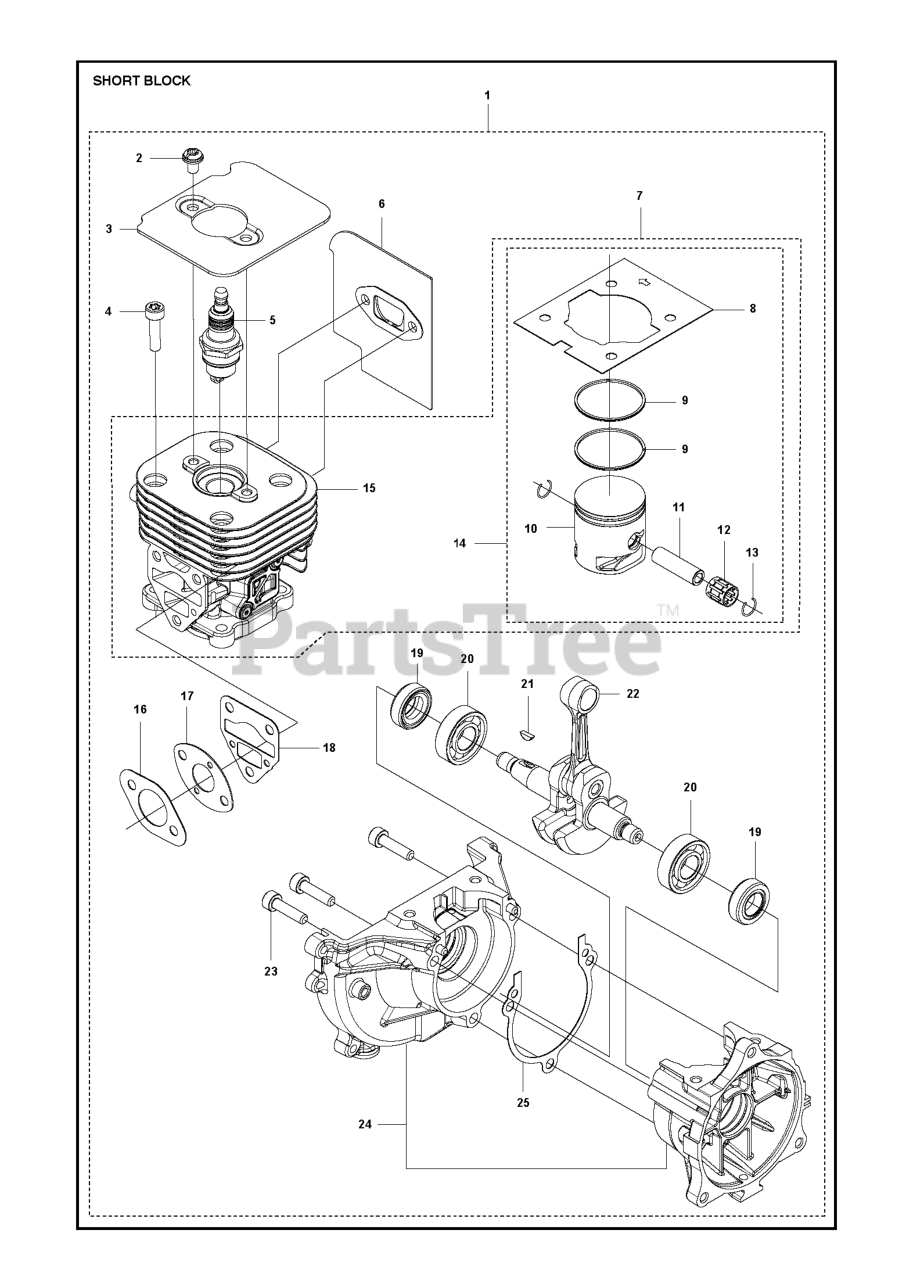

SHORT BLOCK Parts Diagram

  • Title

3

Husqvarna 578785301

PLATE CYLINDER

$14.99

$

Usually ships in 3-10 days

0

23

Husqvarna 504114301

BOLT
(Superseded to 506689001)

$4.99

$

In Stock, Qty 20+

0

21

Husqvarna 506689401

KEY

$3.49

$

In Stock, Qty 20+

0

8

Husqvarna 576398702

GASKET BASE

$5.99

$

In Stock, Qty 20+

0

1

Husqvarna 592776401

SHORTBLOCK
(Superseded to 596940601)

$239.99

$

Usually ships in 3-10 days

0

13

Husqvarna 505045201

RING

$2.49

$

In Stock, only 2 left!

0

6

Husqvarna 578408101

GASKET MUFFLER

$14.99

$

Usually ships in 3-10 days

0

9

Husqvarna 506618101

RING

$8.49

$

In Stock, Qty 20+

0

7

Husqvarna 588098202

SERVICE KIT
(Superseded to 596940701)

$

$

Not available

24

Husqvarna 581308602

CRANKCASE COMP

$62.99

$

In Stock, only 1 left!

0

17

Husqvarna 576399102

GASKET CARBURETOR

$7.49

$

In Stock, only 1 left!

0

15

Husqvarna 577979001

CYLINDER COMP

$95.99

$

In Stock, Qty 5

0

19

Husqvarna 504121501

SEAL

$9.49

$

In Stock, Qty 20+

0

18

Husqvarna 576398901

GASKET

$7.49

$

Usually ships in 3-10 days

0

20

Husqvarna 506610301

BEARING

$10.99

$

In Stock, only 1 left!

0

10

Husqvarna 577917401

PISTON

$51.99

$

In Stock, only 1 left!

0

25

Husqvarna 576399502

GASKET CASE

$5.99

$

Usually ships in 3-10 days

0

12

Husqvarna 576402701

BEARING

$14.99

$

Usually ships in 3-10 days

0

11

Husqvarna 505040701

PIN

$7.49

$

In Stock, only 1 left!

0

5

Husqvarna 584968101

SPARK PLUG NGK BPMR-8Y
(Superseded to 590710101)

$8.49

$

In Stock, Qty 20+

0

16

Husqvarna 577882402

GASKET

$4.99

$

In Stock, Qty 11

0

14

Husqvarna 588098102

SERVICE KIT PISTON 525 TRIMMER

$39.99

$

Usually ships in 3-10 days

0

22

Husqvarna 579223201

CRANKSHAFT COMPLETE
(Superseded to 586656602)

$119.99

$

Usually ships in 3-10 days

0

2

Husqvarna 544256801

SCREW

$3.99

$

In Stock, Qty 12

0

4

Husqvarna 504114301

BOLT
(Superseded to 506689001)

$4.99

$

In Stock, Qty 20+

0
