525 P5S - Husqvarna Pole Saw SHAFT Parts Diagram

Pole Saw

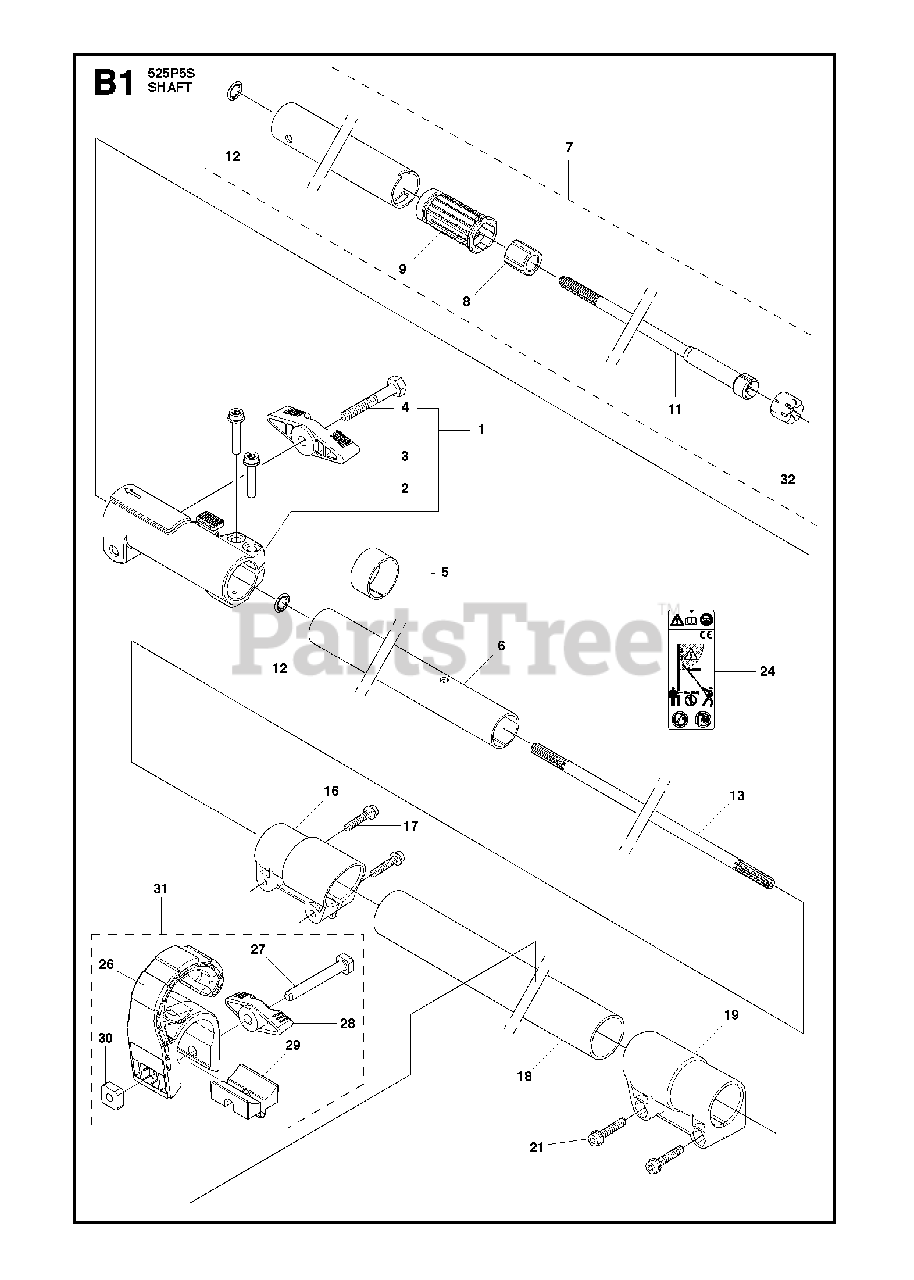

SHAFT Parts Diagram

  • Title

1

Husqvarna 576282601

CLAMPING SLEEVE ASSY

$28.99

$

In Stock, only 2 left!

0

2

Husqvarna 525755104

SCREW

Note: . 1

$3.49

$

In Stock, only 2 left!

0

3

Husqvarna 576282401

KNOB CLAMPING SLEEVE

Note: . 1

$4.99

$

In Stock, only 2 left!

0

4

Husqvarna 725237651

BOLT FLANGE

Note: . 1

$3.49

$

In Stock, only 3 left!

0

5

Husqvarna 537245101

SEALING

$3.49

$

Usually ships in 3-10 days

0

6

Husqvarna 587967502

TUBE ASSY INNER SPARE PART

Note: 24 mm L 1650 mm

$74.99

$

Usually ships in 3-10 days

0

7

Husqvarna 587972102

TUBE
(Superseded to 587972104)

Note: 24 mm L 1100 mm

$148.99

$

In Stock, only 1 left!

0

8

Husqvarna 503785202

BUSHING

Note: . 7

$13.99

$

In Stock, only 2 left!

0

9

Husqvarna 587414601

PLUG

Note: . 7

$3.49

$

In Stock, only 4 left!

0

11

Husqvarna 587411702

DRIVE SHAFT

Note: 7 mm L 1114 mm. 7

$68.99

$

Usually ships in 3-10 days

0

12

Husqvarna 735580810

WASHER

Note: . 7

$3.49

$

In Stock, Qty 14

0

13

Husqvarna 581161703

DRIVESHAFT

$45.99

$

Usually ships in 3-10 days

0

16

Husqvarna 537272901

LOCKING SLEEVE

$7.99

$

Usually ships in 3-10 days

0

17

Husqvarna 503210622

SCREW

$6.99

$

In Stock, only 4 left!

0

18

Husqvarna 537246802

PIPE

Note: 30 mm L 1230 mm

$62.99

$

Usually ships in 3-10 days

0

19

Husqvarna 537272901

LOCKING SLEEVE

$7.99

$

Usually ships in 3-10 days

0

21

Husqvarna 503210622

SCREW

$6.99

$

In Stock, only 4 left!

0

24

Husqvarna 585944001

DECAL WARNING SPARK ARRESTOR

$3.49

$

Usually ships in 3-10 days

0

26

Husqvarna 504702101

LOOP 30MM

Note: . 31

$6.99

$

Usually ships in 3-10 days

0

27

Husqvarna 725237951

SCREW

Note: . 31

$8.49

$

In Stock, only 2 left!

0

28

Husqvarna 502203801

HANDLE

Note: . 31

$8.99

$

In Stock, only 2 left!

0

29

Husqvarna 504698701

SPACING BLOCK 30

Note: . 31

$5.99

$

Usually ships in 3-10 days

0

30

Husqvarna 502197101

NUT

Note: . 31

$6.49

$

In Stock, Qty 16

0

31

Husqvarna 522427001

ACCESSORY BAG

$26.99

$

Usually ships in 3-10 days

0

32

Husqvarna 583938301

CLIP

$17.99

$

Usually ships in 3-10 days

0
