525 RXT - Husqvarna Brush Cutter (2013-03) CARBURETOR Parts Diagram

Brush Cutter

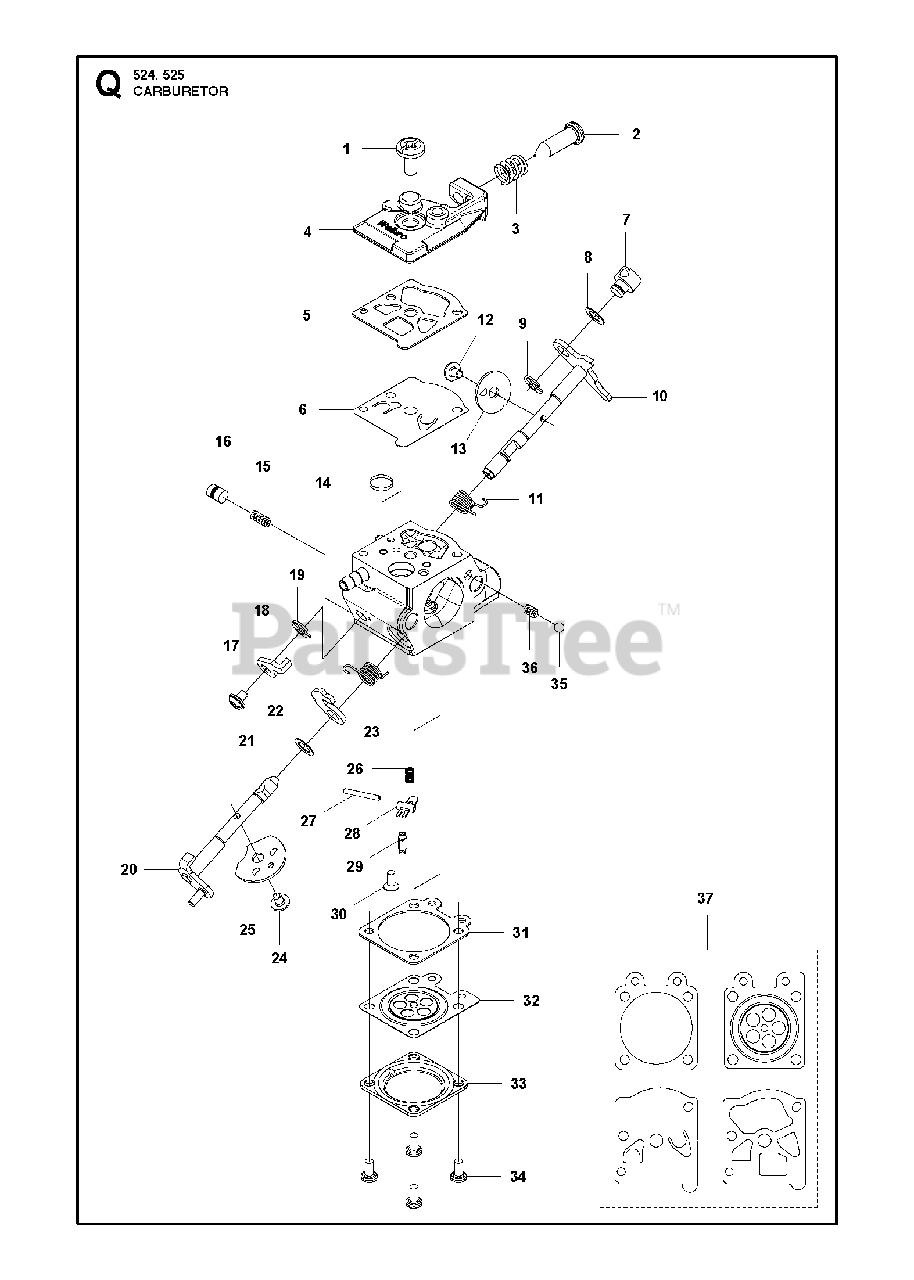

CARBURETOR Parts Diagram

  • Title

1

Husqvarna 520976301

SCREW

$3.49

$

Usually ships in 3-10 days

0

2

Husqvarna 577815701

SCREW, IDLE

$13.99

$

In Stock, only 1 left!

0

3

Husqvarna 513593201

SPRING

$5.99

$

Usually ships in 3-10 days

0

4

Husqvarna 579190601

COVER PUMP

$26.99

$

Usually ships in 3-10 days

0

5

Husqvarna 520954801

GASKET

$13.99

$

Usually ships in 3-10 days

0

6

Husqvarna 502213601

DIAPHRAGM, FUEL PUMP
(Superseded to 504130807)

$37.99

$

In Stock, Qty 20+

0

7

Husqvarna 513400801

SWIVEL

$13.99

$

Usually ships in 3-10 days

0

8

Husqvarna 516524201

WASHER

$3.49

$

In Stock, only 2 left!

0

9

Husqvarna 506738601

RING

$2.49

$

Usually ships in 3-10 days

0

10

Husqvarna 579190701

SHAFT ASSEMBLY,THROTTLE

$28.99

$

Usually ships in 3-10 days

0

11

Husqvarna 577815501

SPRING

$4.99

$

Usually ships in 3-10 days

0

12

Husqvarna 520759801

SCREW

$3.49

$

Usually ships in 3-10 days

0

13

Husqvarna 520978601

VALVE

$3.49

$

Usually ships in 3-10 days

0

14

Husqvarna 520957001

SCREEN
(Superseded to 574012501)

$4.99

$

Usually ships in 3-10 days

0

15

Husqvarna 505057901

SPRING

$4.99

$

Usually ships in 3-10 days

0

16

Husqvarna 584901201

PISTON ASSY
(Superseded to 521578301)

$

$

Not available

17

Husqvarna 520759801

SCREW

$3.49

$

Usually ships in 3-10 days

0

18

Husqvarna 579190801

LEVER THROTTLE

$26.99

$

Usually ships in 3-10 days

0

19

Husqvarna 505056501

E-RING

$4.99

$

Usually ships in 3-10 days

0

20

Husqvarna 579191001

SHAFT ASSEMBLY,CHOKE

$28.99

$

Usually ships in 3-10 days

0

21

Husqvarna 516524201

WASHER

$3.49

$

In Stock, only 2 left!

0

22

Husqvarna 584901301

LEVER

$26.99

$

Usually ships in 3-10 days

0

23

Husqvarna 579191101

SPRING

$6.99

$

Usually ships in 3-10 days

0

24

Husqvarna 520759801

SCREW

$3.49

$

Usually ships in 3-10 days

0

25

Husqvarna 581154901

VALVE

$13.99

$

Usually ships in 3-10 days

0

26

Husqvarna 578895401

SPRING

$4.99

$

Usually ships in 3-10 days

0

27

Husqvarna 520977401

PIN

$5.99

$

Usually ships in 3-10 days

0

28

Husqvarna 577807201

Lever

$

$

Not available

29

Husqvarna 521085401

VALVE INLET

$13.99

$

Usually ships in 3-10 days

0

30

Husqvarna 577807101

SCREW

$3.49

$

Usually ships in 3-10 days

0

31

Husqvarna 516972101

GASKET

$5.99

$

In Stock, only 3 left!

0

32

Husqvarna 577807001

DIAPHRAGM

$20.99

$

In Stock, only 2 left!

0

33

Husqvarna 514189201

COVER

$9.49

$

Usually ships in 3-10 days

0

34

Husqvarna 520978801

SCREW ASSY

$3.49

$

Usually ships in 3-10 days

0

35

Husqvarna 514242601

BALL

$7.99

$

In Stock, only 1 left!

0

36

Husqvarna 514243301

CHOKE SPRING

$7.99

$

Usually ships in 3-10 days

0

37

Husqvarna 580684801

GASKET KIT

Note: Coomopes by item 5 6 31 and 32
