5250 - Lawn-Boy Walk-Behind Mower (SN: 900000001 - 999999999) (1959) MODEL C-60 ENGINE PARTS LIST Parts Diagram

Walk-Behind Mower

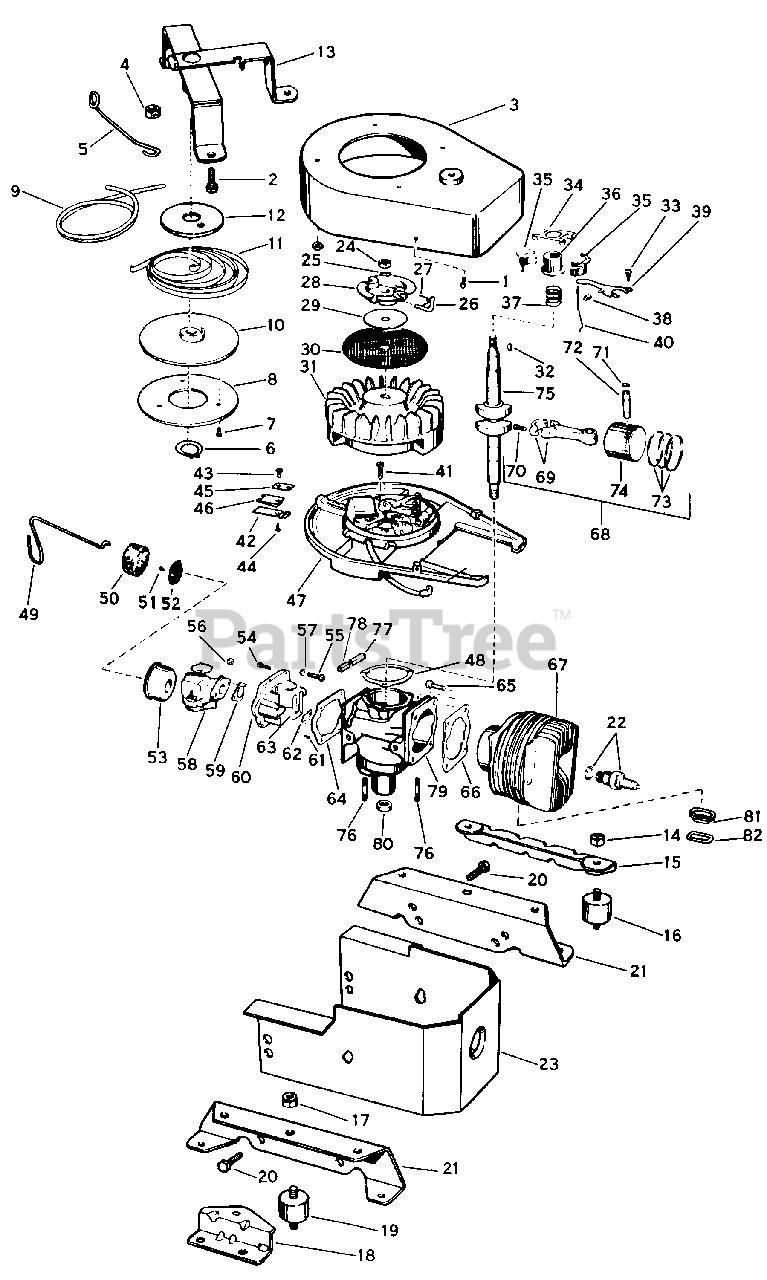

MODEL C-60 ENGINE PARTS LIST Parts Diagram

  • Title

1

Lawn-Boy 602848

Screw-Shroud to Arm. Plate

$4.49

$

In Stock, only 1 left!

0

2

Lawn-Boy 603426

Screw-Starter to Shroud

$

$

Not available

3

Lawn-Boy 603411

Shroud

$

$

Not available

4

Lawn-Boy 602830

Nut-Guide Attaching

$

$

Not available

5

Lawn-Boy 603537

Guide-Starter Rope

$

$

Not available

Lawn-Boy 677659

Starter Assembly

$

$

Not available

6

Lawn-Boy 603424

Ring-Grip (Starter Brg. Pin)

$

$

Currently unavailable

7

Lawn-Boy 602821

Screw-Thread Cutting

$

$

Not available

8

Lawn-Boy 602820

Plate-Pulley

$

$

Not available

9

Lawn-Boy 603425

Rope-Starter

$

$

Currently unavailable

10

Lawn-Boy 603419

Pulley-Rewind

$

$

Not available

11

Lawn-Boy 602610

Spring-Recoil

$

$

Not available

12

Lawn-Boy 603423

Washer-Starter Spring Ret.

$

$

Currently unavailable

13

Lawn-Boy 677681

Starter Brkt. and Pin Assy.

$

$

Not available

14

Lawn-Boy 603477

Nut-Nylok (Rubber Mount, Left)

$

$

Not available

15

Lawn-Boy 603431

Bracket-Shock Mounting, Housing, Left

$

$

Currently unavailable

16

Lawn-Boy 603432

Mount-Rubber, Left

$

$

Currently unavailable

17

Lawn-Boy 602830

Nut-Nylok (Rubber Mount, Right)

$

$

Not available

18

Lawn-Boy 603429

Bracket-Shock Mounting, Housing, Right

$

$

Currently unavailable

19

Lawn-Boy 603433

Mount-Rubber, Right

$

$

Currently unavailable

20

Lawn-Boy 603478

Screw-Engine Mounting Bracket Assembly

$

$

Currently unavailable

21

Lawn-Boy 603536

Bracket-Shock Mtg., Engine

$

$

Currently unavailable

22

Lawn-Boy 602721

Spark Plug and Gasket

$

$

Currently unavailable

23

Lawn-Boy 603427

Shield-Cylinder and Crankcase

$

$

Currently unavailable

24

Lawn-Boy 130981

Nut-Flywheel

$

$

Not available

25

Lawn-Boy 304161

Lockwasher-Flywheel

$

$

Not available

26

Lawn-Boy 602612

Pin-Starter

$19.99

$

In Stock, only 2 left!

0

27

Lawn-Boy 602613

Spring-Starter Pin

$

$

Not available

28

Lawn-Boy 602615

Pulley-Flywheel

$

$

Not available

29

Lawn-Boy 602617

Washer-Flywheel

$

$

Not available

30

Lawn-Boy 602616

Screen-Flywheel

$

$

Not available

31

Lawn-Boy 677242

Flywheel Assembly

$

$

Not available

32

Lawn-Boy 120395

Key-Crankshaft
(Superseded to 607199)

$4.99

$

In Stock, Qty 12

0

33

Lawn-Boy 602640

Screw-Governor

$

$

Not available

Lawn-Boy 677674

Governor Assembly

$

$

Not available

34

Lawn-Boy 602635

Yoke-Governor

$

$

Not available

35

Lawn-Boy 602636

Weight-Governor

$

$

Not available

36

Lawn-Boy 602634

Collar-Governor

$21.99

$

In Stock, only 4 left!

0

37

Lawn-Boy 603415

Spring-Governor

$

$

Currently unavailable

38

Lawn-Boy 602639

Block-Wear, Governor

$2.99

$

In Stock, only 3 left!

0

39

Lawn-Boy 677294

Governor Lever and Wear Block Assembly

$19.99

$

Usually ships in 3-6 days

0

40

Lawn-Boy 602638

Rod-Governor

$

$

Not available

41

Lawn-Boy 603294

Screw-Crankcase to Arm. Plate

$

$

Not available

42

Lawn-Boy 677714

Contact and Sleeve Assembly-Shut-off

$

$

Not available

43

Lawn-Boy 603490

Sleeve-Nylon

$

$

Not available

44

Lawn-Boy 602625

Screw-Shut-Off Switch

$

$

Currently unavailable

45

Lawn-Boy 603465

Insulator-Contact

$

$

Not available

46

Lawn-Boy 603538

Cover-Shut-Off Switch Contact

$

$

Currently unavailable

47

Lawn-Boy 677711

Armature Plate Assy.-Complete

$

$

Not available

48

Lawn-Boy 602590

Gasket-Crankcase to Arm. Plate, .005"

Note: 677481 Gasket Set

$

$

Not available

48

Lawn-Boy 602763

Gasket-Crankcase to Arm. Plate, .010"

Note: 677481 Gasket Set

$1.99

$

In Stock, only 3 left!

0

49

Lawn-Boy 603437

Clip-Air Filter

$

$

Currently unavailable

50

Lawn-Boy 602016

Element-Air Filter

$5.49

$

In Stock, only 2 left!

0

51

Lawn-Boy 602594

Screw-Air Filter

$

$

Not available

52

Lawn-Boy 602015

Screen-Air Filter

$9.49

$

Usually ships in 3-6 days

0

53

Lawn-Boy 603436

Cup-Air Filter

$

$

Currently unavailable

54

Lawn-Boy 602192

Screw-Reed Plate to Crankcase

$8.49

$

In Stock, only 2 left!

0

55

Lawn-Boy 132492

Screw-Reed Plate to Carburetor

$

$

Not available

56

Lawn-Boy 602201

Nut-Reed Plate to Carb. Screw

$

$

Not available

57

Lawn-Boy 303630

Washer-Reed Plate to Carb. Screw

$

$

Not available

58

Lawn-Boy 677715

Carburetor Assembly

$

$

Not available

59

Lawn-Boy 602052

Gasket-Carburetor

Note: 677481 Gasket Set

$3.49

$

In Stock, Qty 20+

0

60

Lawn-Boy 677362

Reed Plate Assembly

$

$

Not available

61

Lawn-Boy 303761

Screw-Reed to Reed Plate
(Superseded to 612872)

$2.49

$

In Stock, Qty 7

0

62

Lawn-Boy 602587

Plate-Back-up. Reed

$2.99

$

Usually ships in 3-6 days

0

63

Lawn-Boy 602588

Reed

$

$

Not available

64

Lawn-Boy 602841

Gasket-Reed Plate to Crankcase

Note: 677481 Gasket Set

$

$

Not available

65

Lawn-Boy 603293

Screw-Cyl. to Crankcase

$

$

Not available

66

Lawn-Boy 603038

Gasket-Cyl. to Crankcase

Note: 677481 Gasket Set

$

$

Not available

67

Lawn-Boy 677607

Cylinder and Sleeve Assembly

$

$

Not available

68

Lawn-Boy 677513

Piston and Connecting Rod Assy.

$

$

Currently unavailable

69

Lawn-Boy 677452

Connecting Rod

$

$

Not available

70

Lawn-Boy 603148

Screw-Connecting Rod

$

$

Currently unavailable

71

Lawn-Boy 120325

Ring-Spring

$

$

Not available

72

Lawn-Boy 202522

Pin-Wrist

$

$

Not available

73

Lawn-Boy 603181

Ring-Piston

$

$

Not available

74

Lawn-Boy 603180

Piston

$

$

Not available

75

Lawn-Boy 603416

Crankshaft

$

$

Currently unavailable

76

Lawn-Boy 603434

Stud-Crankcase to Muffler

$

$

Currently unavailable

77

Lawn-Boy 603494

Shield-Dust, Crankcase, Right

$

$

Currently unavailable

78

Lawn-Boy 603495

Shield-Dust, Crankcase, Left

$

$

Currently unavailable

79

Lawn-Boy 677713

Crankcase Brg. and Oil Seal Assy.

$

$

Not available

80

Lawn-Boy 603101

Oil Seal

$

$

Not available

81

Lawn-Boy 602717

Sleeve-Muffler Gasket

$2.99

$

In Stock, Qty 20+

0

82

Lawn-Boy 602644

Gasket-Exhaust

Note: 677481 Gasket Set

$

$

Not available
