5252 (54AE52D-710) - Cub Cadet Compact Tractor Air Intake Parts Diagram

Compact Tractor

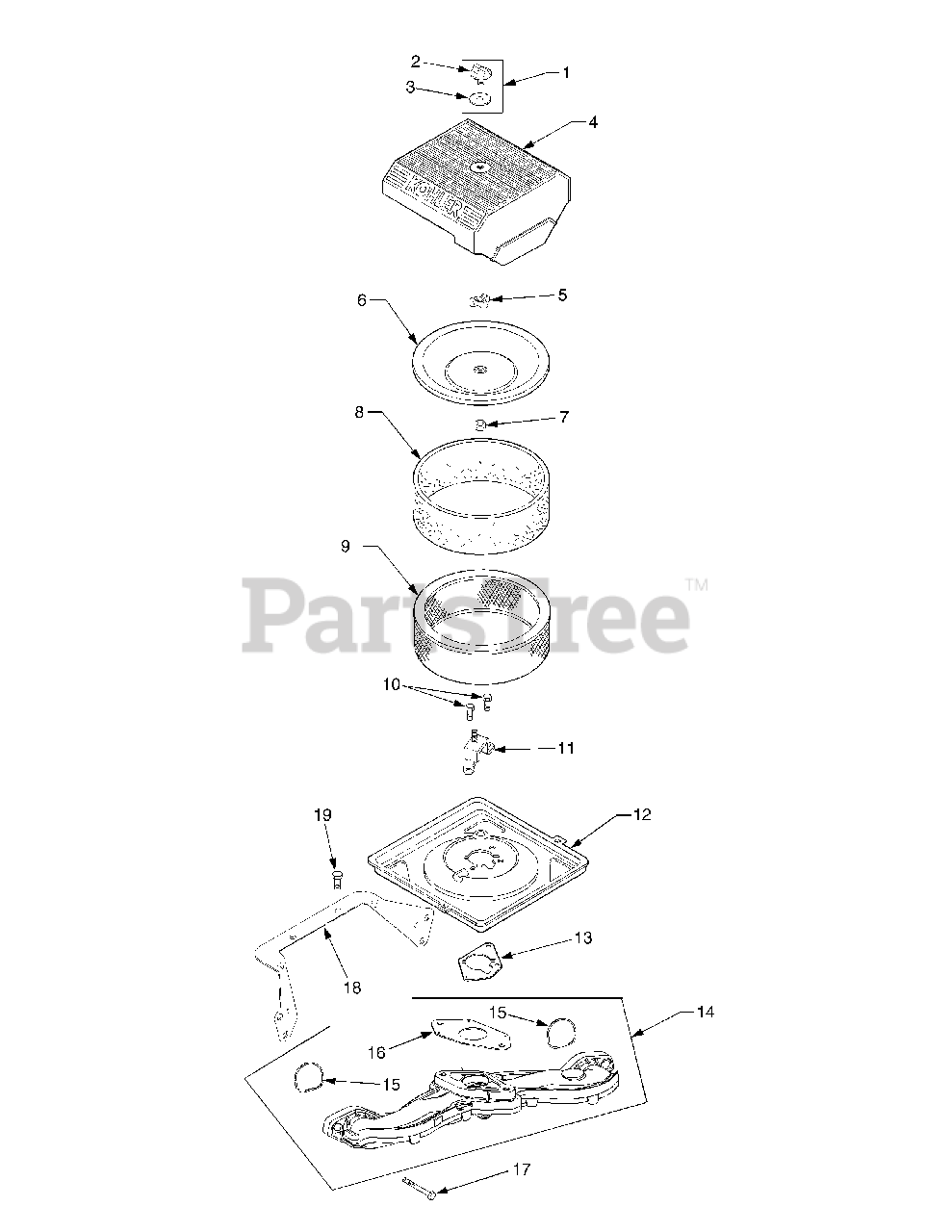

Air Intake Parts Diagram

  • Title

1

Cub Cadet KH-54-755-01-S

Kit, Knob w/Seal (Incl. Ref #2,3)

$9.49

$

In Stock, Qty 18

0

2

Cub Cadet KH-25-341-04-S

Knob, Cover

$7.99

$

In Stock, only 1 left!

0

3

Cub Cadet KH-24-153-20-S

Seal, Air Cleaner Cover Knob

$3.49

$

Usually ships in 2-5 days

0

4

Cub Cadet KH-24-096-69-S

Cover, Air Cleaner

$47.99

$

In Stock, only 2 left!

0

5

Cub Cadet KH-12-100-01

Wing Nut

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet KH-24-096-01

Cover, Inner Air Cleaner

$

$

Not available

7

Cub Cadet KH-230046

Seal, Inner Air Cleaner

$

$

Not available

8

Cub Cadet KH-24-083-05-S

Precleaner, Element, 71mm deep
(Superseded to KH-24-883-03-S1)

$27.99

$

In Stock, Qty 7

0

9

Cub Cadet KH-24-083-03-S

Element, Air Cleaner, 74mm deep
(Superseded to KH-24-883-03-S1)

$27.99

$

In Stock, Qty 7

0

10

Cub Cadet KH-24-086-53-S

Screw, Hex Flange, M6 x 1.0 x16

$2.99

$

In Stock, only 3 left!

0

11

Cub Cadet KH-24-126-88-S

Bracket, Air Cleaner Base
(Superseded to KH-24-126-226-S)

$13.99

$

In Stock, only 1 left!

0

12

Cub Cadet KH-24-094-37-S

Base, Air Cleaner

$

$

Not available

13

Cub Cadet KH-24-041-06

Gasket, Air Cleaner Base

$2.99

$

In Stock, Qty 20+

0

14

Cub Cadet KH-24-164-54-S

Manifold, Intake (Includes Ref. Nos. 15 and 16)
(Superseded to KH-24-164-93-S)

$232.99

$

Usually ships in 3-6 days

0

15

Cub Cadet KH-24-153-27-S

O-Ring, Intake Manifold

$3.99

$

In Stock, Qty 8

0

16

Cub Cadet KH-24-041-53-S

Gasket, Carburetor

$3.49

$

In Stock, only 2 left!

0

17

Cub Cadet KH-M-651040-S

Screw, Hex Flange, M6 x 1.0 x 40

$2.49

$

In Stock, only 3 left!

0

18

Cub Cadet KH-24-126-130-S

Bracket, Air Cleaner Base

$10.99

$

In Stock, only 2 left!

0

19

Cub Cadet KH-M-0545010

Screw, Hex Flng, M5 x 0.8 x 10

$

$

Not available
