5252 (54AE52D-710) - Cub Cadet Compact Tractor Fuel System Parts Diagram

Compact Tractor

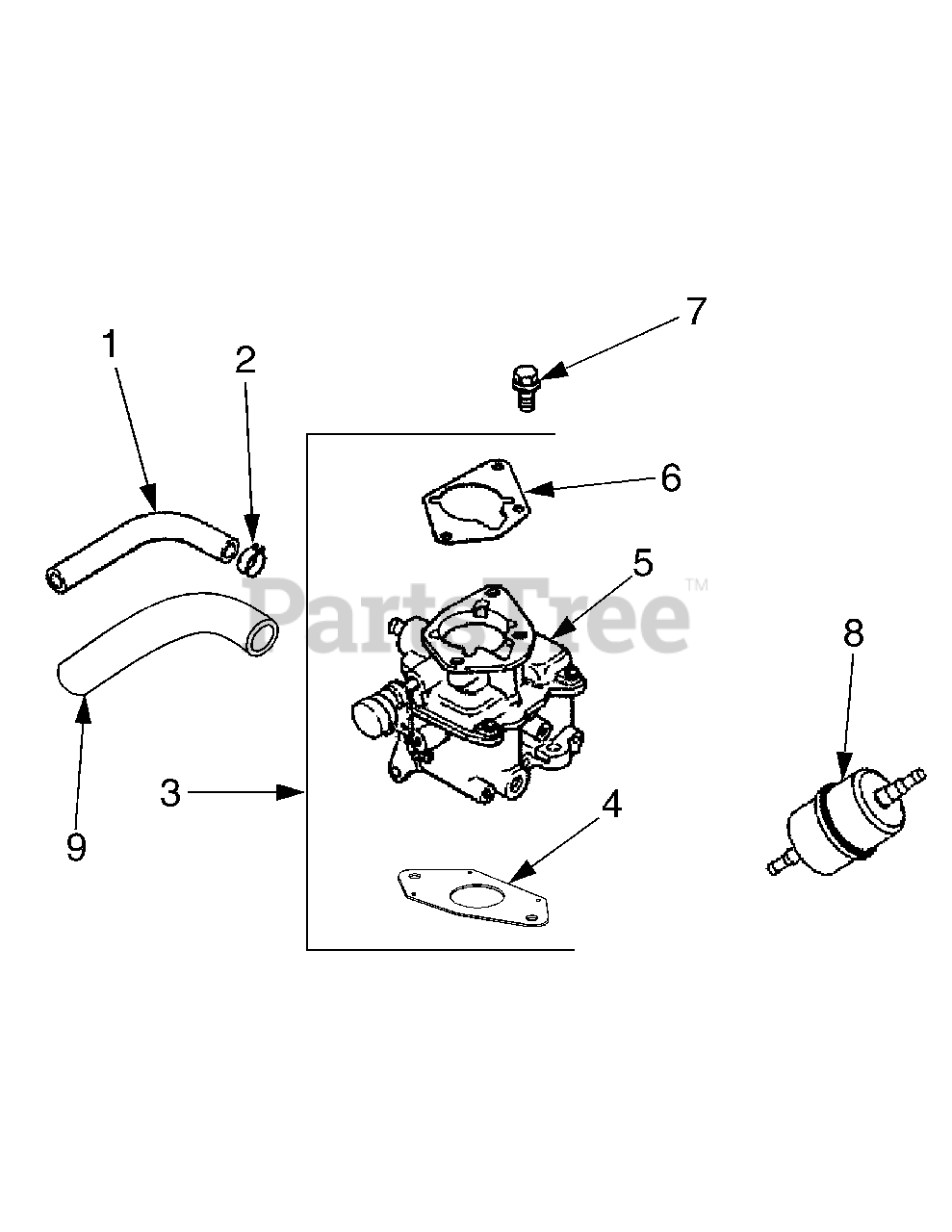

Fuel System Parts Diagram

  • Title

1

Cub Cadet KH-41-353-14

Line, Fuel 15.5"
(Superseded to 751-10349-16)

$33.99

$

In Stock, Qty 10

0

2

Cub Cadet KH-25-237-14-S

Clamp, Hose
(Superseded to KH-25-237-31-S)

$5.99

$

In Stock, Qty 12

0

3

Cub Cadet KH-24-853-91-S

Kit, Carburetor w/Gasket (Includes 4-6)
(Superseded to KH-24-853-257-S)

$382.99

$

Usually ships in 2-5 days

0

4

Cub Cadet KH-24-041-53-S

Gasket, Carburetor / Carburetor Assembly (not avail separately)

$3.49

$

In Stock, Qty 8

0

6

Cub Cadet KH-24-041-06

Gasket, Air Cleaner Base

$2.99

$

In Stock, Qty 20+

0

7

Cub Cadet KH-M-651025-S

Screw, Hex Flange, M6 x 1.0 x 25
(Superseded to KH-25-086-124-S)

$3.49

$

Usually ships in 2-5 days

0

8

Cub Cadet KH-24-050-09-S

Filter, Fuel
(Superseded to 2405013S1C)

$12.99

$

In Stock, Qty 20+

0

9

Cub Cadet KH-25-431-12-S

Sleeve, Insulator

$10.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-24-518-24-S

Lead, Ground (not illustrated)

$2.49

$

Usually ships in 2-5 days

0

Cub Cadet KH-24-757-01

Kit, Solenoid (not illustrated)

$

$

Not available

Cub Cadet KH-24-757-02-S

Kit, Float Repair (not illustrated)

$166.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-24-757-03-S

Kit, Carburetor Repair (not illustrated)

$139.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-24-757-07

Kit, Choke Repair (not illustrated)

$

$

Not available

Cub Cadet KH-24-755-130-S

Kit, High Altitude (not illustrated)

$55.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-24-757-08-S

Kit, Repair - Accelerator pump diaphragm

$102.99

$

In Stock, only 4 left!

0

Cub Cadet KH-24-757-09-S

Kit, Repair - Accel. pump seal & bushing

$135.99

$

Usually ships in 2-5 days

0
