5252 E (54AE52DC710) - Cub Cadet Compact Tractor (SN: 1J015G - 999999) Fuel System Parts Diagram

Compact Tractor

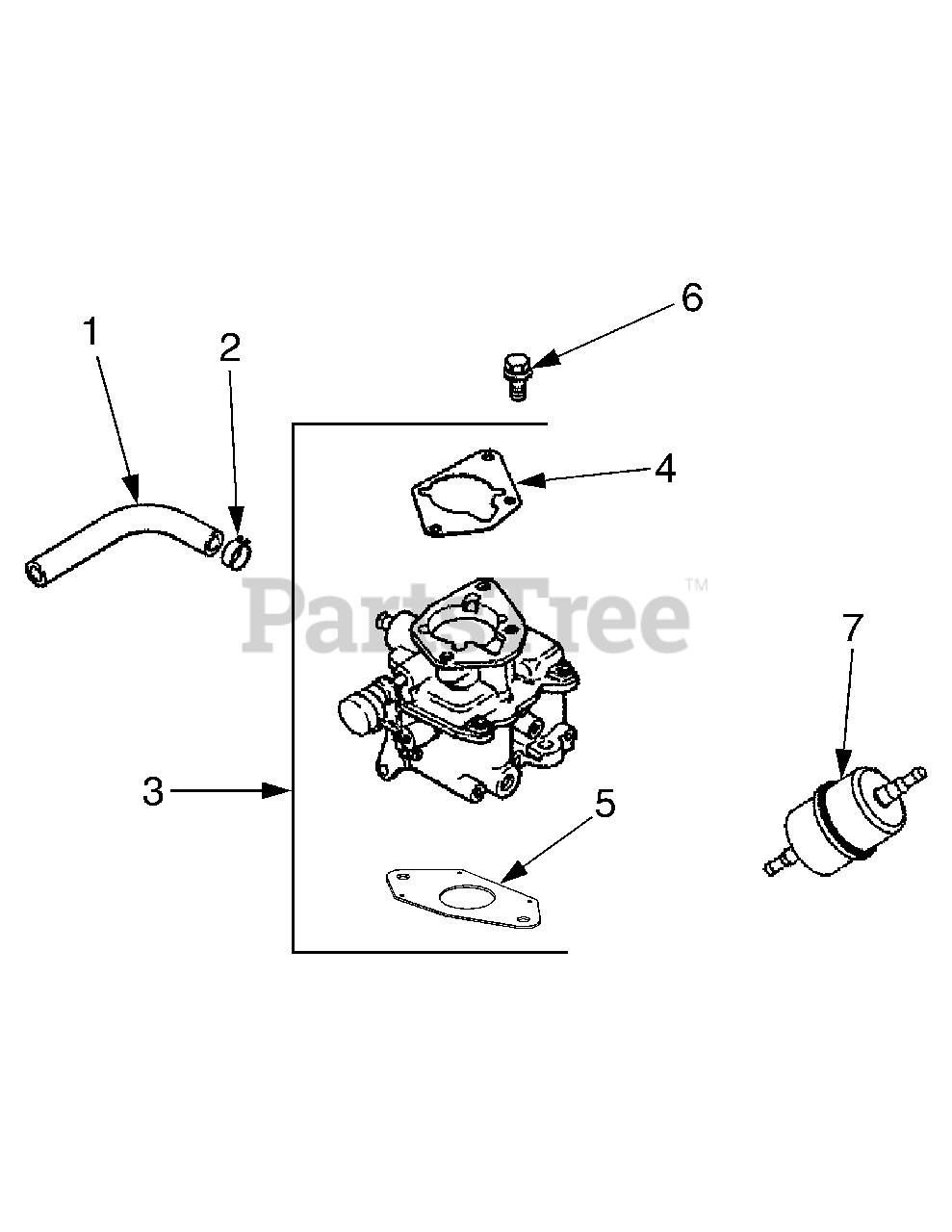

Fuel System Parts Diagram

  • Title

1

Cub Cadet KH-25-111-34-S

Line, Fuel 24 length"
(Superseded to KH-25-111-81-S)

$17.99

$

In Stock, Qty 20+

0

2

Cub Cadet KH-25-237-14-S

Clamp, Hose
(Superseded to KH-25-237-31-S)

$5.99

$

In Stock, Qty 12

0

3

Cub Cadet KH-24-853-91-S

Kit, Carburetor w/Gasket (Includes 4,6)
(Superseded to KH-24-853-257-S)

$382.99

$

Usually ships in 2-5 days

0

4

Cub Cadet KH-24-041-06

Gasket, Air Cleaner Base

$2.99

$

In Stock, Qty 20+

0

5

Cub Cadet KH-24-041-53-S

Gasket, Carburetor

$3.49

$

In Stock, Qty 8

0

6

Cub Cadet KH-M-651025-S

Screw, Hex Flange, M6 x 1.0 x 25
(Superseded to KH-25-086-124-S)

$3.49

$

Usually ships in 2-5 days

0

7

Cub Cadet KH-24-050-09-S

Filter, Fuel
(Superseded to 2405013S1C)

$12.99

$

In Stock, Qty 20+

0

Cub Cadet KH-24-757-03-S

Kit, Carburetor Repair (Not Illustrated)

$139.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-24-757-07

Kit, Choke Repair (Not Illustrated)

$

$

Not available

Cub Cadet KH-24-757-02-S

Kit, Float Repair (Not Illustrated)

$166.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-24-755-130-S

Kit, High Altitude (Not Illustrated)

$55.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-24-757-09-S

Kit, Repair - Accel. pump seal & bushing (not illustrated)

$135.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-24-757-08-S

Kit, Repair - Accelerator pump diaphragm (not illustrated)

$102.99

$

In Stock, only 4 left!

0

Cub Cadet KH-24-757-01

Kit, Solenoid (Not Illustrated)

$

$

Not available

Cub Cadet KH-24-518-24-S

Lead, Ground (Not Illustrated)

$2.49

$

Usually ships in 2-5 days

0
