5253 - Lawn-Boy Walk-Behind Mower (SN: E00000001 - E99999999) (1986) Handle And Rear Grass Catcher Group Model: 3420 Parts Diagram

Walk-Behind Mower

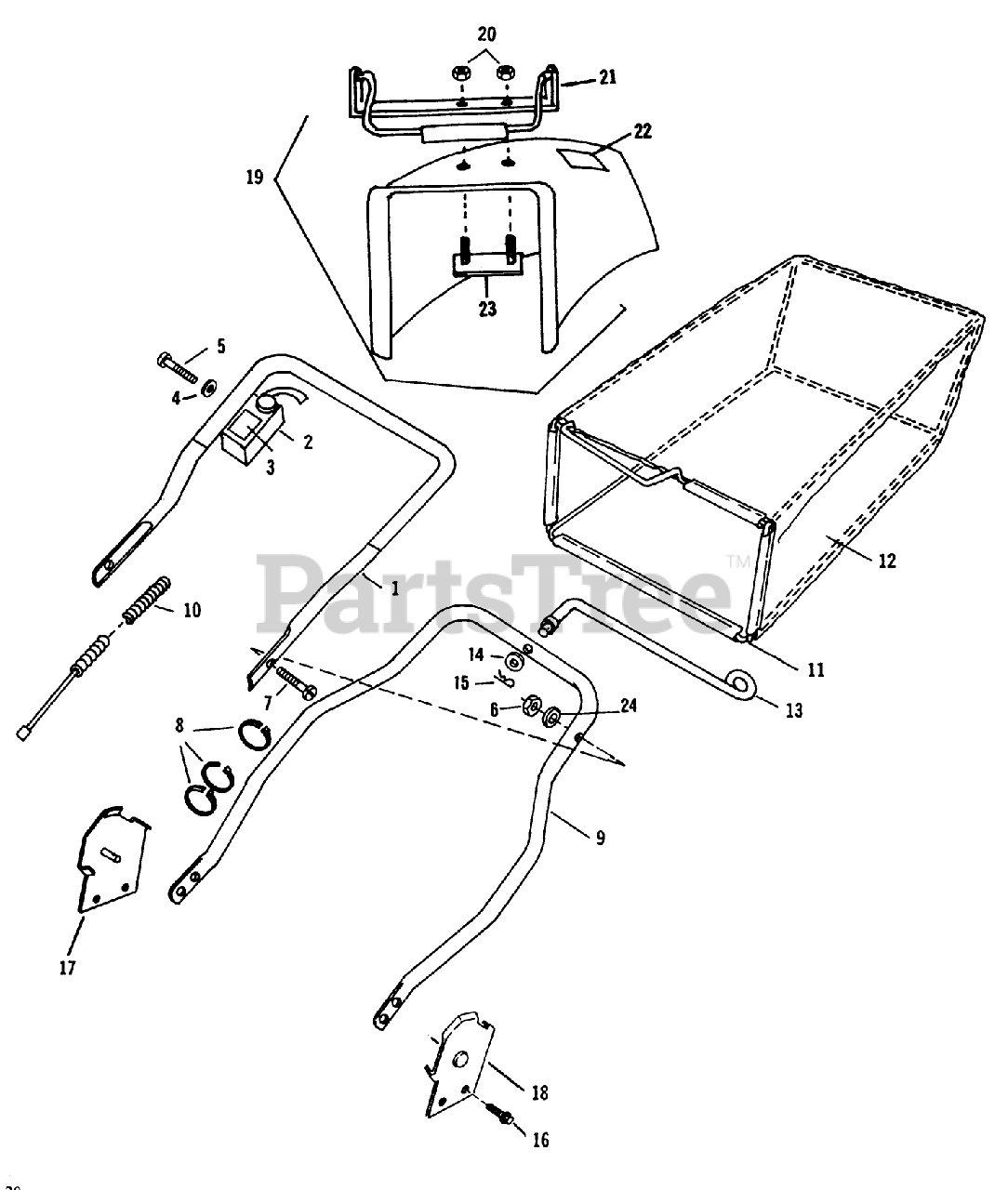

Handle And Rear Grass Catcher Group Model: 3420 Parts Diagram

  • Title

1

Lawn-Boy 683528

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

2

Control Box Ass-y.

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

2

Control Box Ass-y.

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

3

Lawn-Boy 612255

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

4

Insulator-Handle

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

4

Insulator-Handle

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

5

Lawn-Boy 612252

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

6

Lawn-Boy 608311

NUT-LOCK F

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.99

$

Usually ships in 3-6 days

0

7

Lawn-Boy 611205

See Supercession: 322-7
(Superseded to 322-7)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.49

$

In Stock, Qty 20+

0

8

Lawn-Boy 320107

See Supercession: 614249
(Superseded to 614249)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.49

$

In Stock, Qty 20+

0

9

Lawn-Boy 612358

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

10

Lawn-Boy 612269

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

11

Lawn-Boy 682894

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

12

Lawn-Boy 683498

See Supercession: 683799
(Superseded to 683799)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$254.99

$

Usually ships in 3-6 days

0

13

Lawn-Boy 612257

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

14

Lawn-Boy 103867

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

15

Lawn-Boy 605803

HAIR PIN

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

16

Lawn-Boy 611487

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

17

Lawn-Boy 682878

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

18

Lawn-Boy 682870

Handle Brk-t. Ass-y.-L.H.

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Currently unavailable

19

Lawn-Boy 683366

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

20

Lawn-Boy 602315

LOCKNUT E

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$4.49

$

In Stock, only 2 left!

0

21

Lawn-Boy 683577

LATCH BAR ARGO

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$131.99

$

Usually ships in 3-6 days

0

22

Lawn-Boy 611768

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

23

Lawn-Boy 683140

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

24

Lawn-Boy 609739

WASHER-CURVED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$3.49

$

In Stock, Qty 10

0
