5254 E (54AE542-710) - Cub Cadet Compact Tractor Electrical Parts Diagram

Compact Tractor

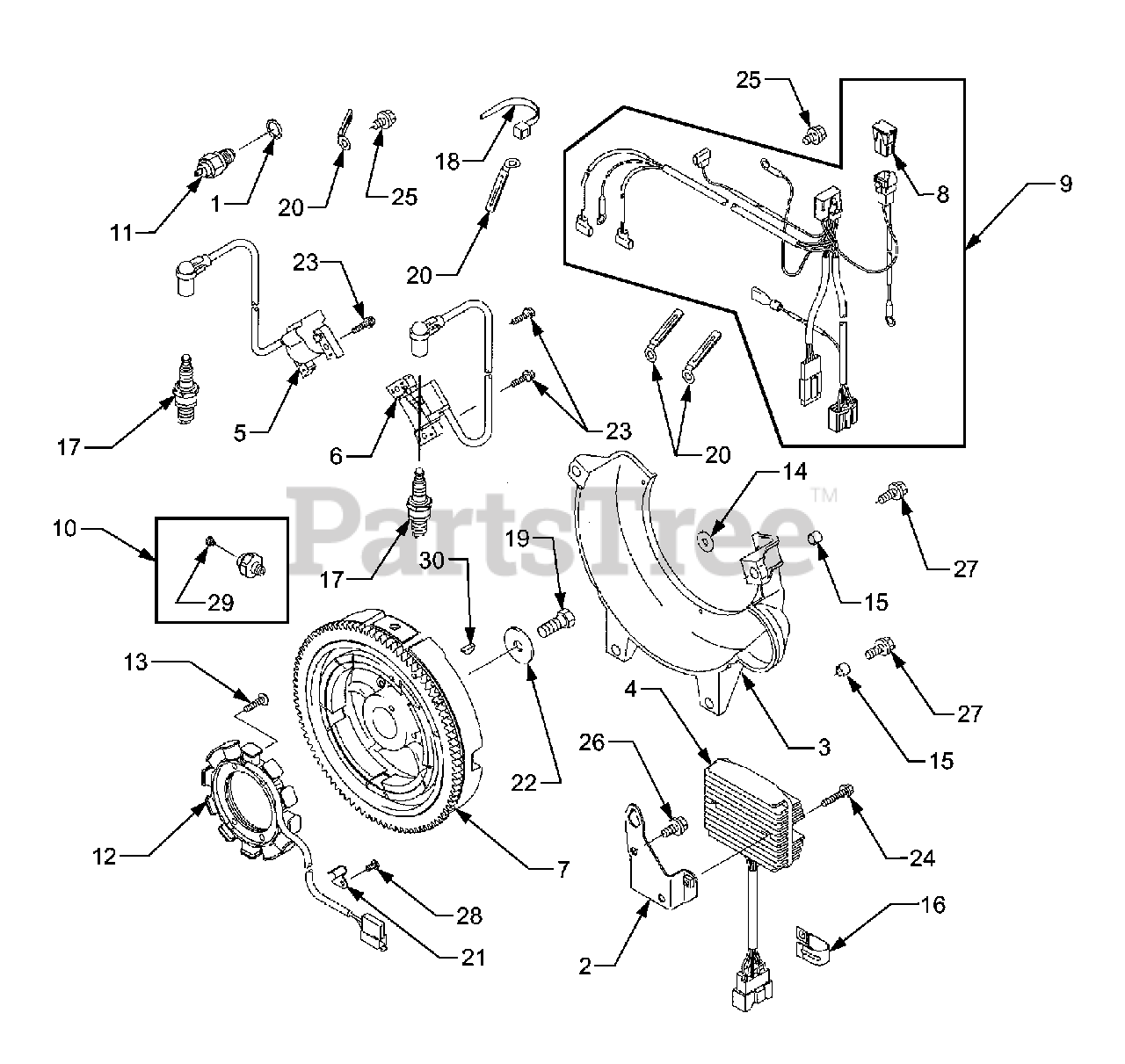

Electrical Parts Diagram

  • Title

1

Cub Cadet KM-11009-2766

Gasket

$1.49

$

In Stock, Qty 6

0

2

Cub Cadet KM-11052-2068

Bracket

$

$

Not available

3

Cub Cadet KM-14083-2055

Cover, Flywheel

$45.99

$

Usually ships in 2-5 days

0

4

Cub Cadet KM-21066-2079

Regulator, Voltage

$308.99

$

In Stock, Qty 6

0

5

Cub Cadet KM-21121-2090

Coil, Ignition, No. 1
(Superseded to KM-21121-6004)

$90.99

$

Usually ships in 3-6 days

0

6

Cub Cadet KM-21121-2091

Coil, Ignition, No. 2
(Superseded to KM-21121-6005)

$90.99

$

Usually ships in 3-6 days

0

7

Cub Cadet KM-21193-2177

Flywheel Assembly

$

$

Not available

8

Cub Cadet KM-26004-1093

Fuse

$7.49

$

Usually ships in 2-5 days

0

9

Cub Cadet KM-26030-2326

Harness

Note: (Includes Ref. No. 8)

$

$

Not available

10

Cub Cadet KM-27010-2170

Switch
(Superseded to KM-27010-0851)

$21.99

$

In Stock, Qty 7

0

11

Cub Cadet KM-27010-2182

Switch

$38.99

$

In Stock, only 1 left!

0

12

Cub Cadet KM-590331-2127

Coil, Charging

$

$

Currently unavailable

13

Cub Cadet KM-92009-2273

Screw

$1.49

$

Usually ships in 2-5 days

0

14

Cub Cadet KM-92022-2104

Washer

$0.99

$

In Stock, only 4 left!

0

15

Cub Cadet KM-92027-1568

Collar, 8.3 x 11.5 x 9

$1.99

$

In Stock, only 4 left!

0

16

Cub Cadet KM-92037-2101

Clamp

$

$

Not available

17

Cub Cadet KM-BPR2ES

Plug, Spark

$3.99

$

In Stock, only 1 left!

0

18

Cub Cadet KM-92072-1195

Band

$1.99

$

Usually ships in 2-5 days

0

19

Cub Cadet KM-92151-2097

Bolt, 12 x 30
(Superseded to KM-92154-7003)

$4.99

$

In Stock, Qty 20+

0

20

Cub Cadet KM-92170-2060

Clamp

$3.99

$

Usually ships in 2-5 days

0

21

Cub Cadet KM-92171-2060

Clamp

$1.99

$

Usually ships in 2-5 days

0

22

Cub Cadet KM-92200-2119

Washer, 12.2 x 40 x 3.0

$7.99

$

Usually ships in 2-5 days

0

23

Cub Cadet KM-130G0520

Bolt, Flanged
(Superseded to KM-130P0520)

$

$

Not available

24

Cub Cadet KM-130G0630

Bolt, Flanged

$1.99

$

In Stock, Qty 12

0

25

Cub Cadet KM-130G0812

Bolt, Flanged

$

$

Not available

26

Cub Cadet KM-130G0816

Bolt, Flanged
(Superseded to KM-130BA0816)

$1.99

$

In Stock, Qty 5

0

27

Cub Cadet KM-130G0820

Bolt, Flanged
(Superseded to KM-130BA0820)

$4.99

$

Usually ships in 2-5 days

0

28

Cub Cadet KM-214B0510

Screw, Pan

$

$

Not available

29

Cub Cadet KM-241B0406

Screw, Pan

$0.99

$

In Stock, Qty 9

0

30

Cub Cadet KM-510A5100

Key, Woodruff

$3.49

$

In Stock, Qty 20+

0
