5254 E (54AE542-710) - Cub Cadet Compact Tractor Hydrostatic Transmission Parts Diagram

Compact Tractor

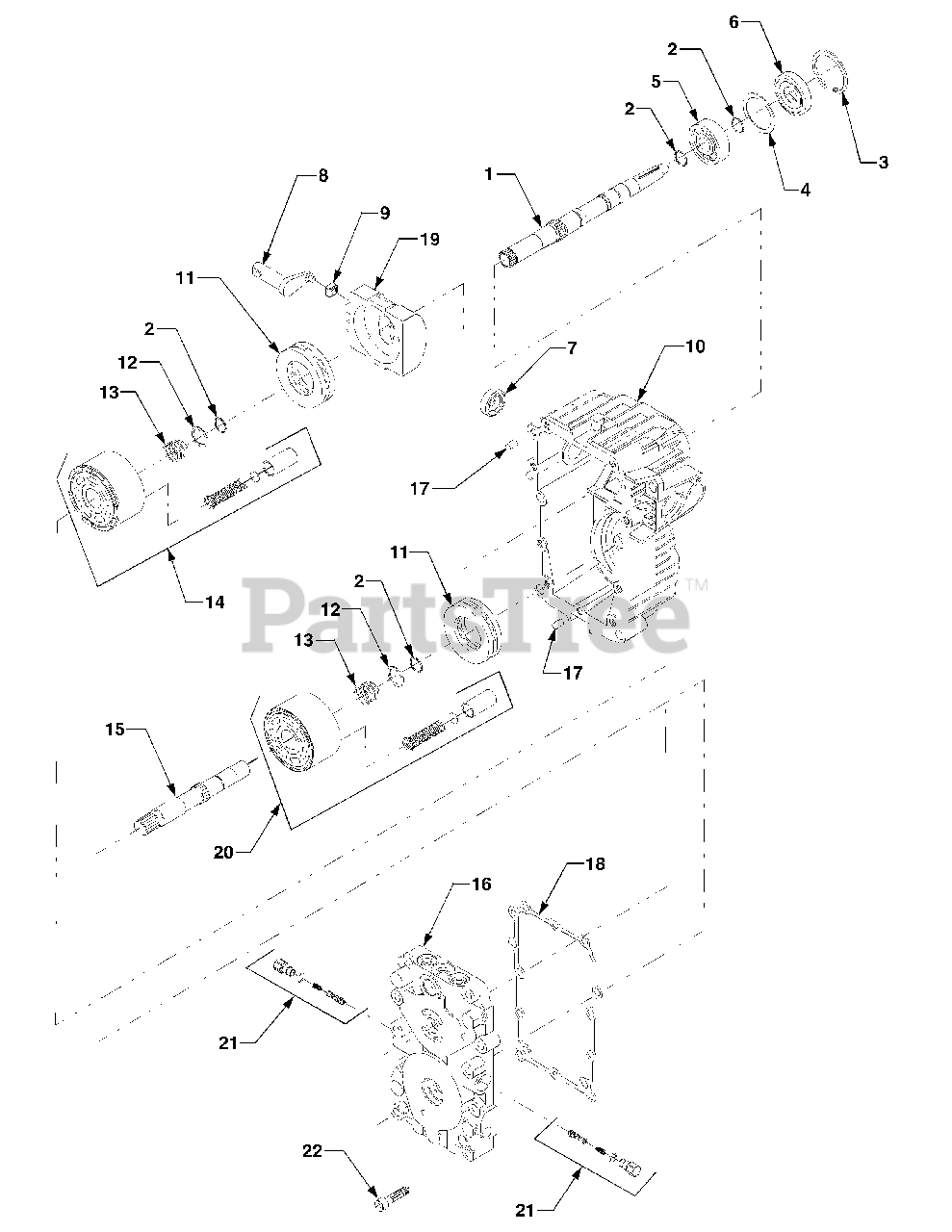

Hydrostatic Transmission Parts Diagram

  • Title

1

Cub Cadet HG-51877

Shaft, Pump Input 1B065G & Before

$269.99

$

Usually ships in 3-6 days

0

1

Cub Cadet HG-52224

Shaft, Pump Input 1B075G & After

$251.99

$

In Stock, only 1 left!

0

2

Cub Cadet HG-2000022

Ring, Wire Retaining

$4.99

$

Usually ships in 3-6 days

0

3

Cub Cadet HG-2000038

Ring, Retaining

$

$

Not available

4

Cub Cadet HG-2000023

Spacer

$9.49

$

Usually ships in 3-6 days

0

5

Cub Cadet HG-2000032

Bearing, Ball

$

$

Not available

6

Cub Cadet HG-51092

Seal, Lip

$18.99

$

Usually ships in 3-6 days

0

7

Cub Cadet HG-2000037

Seal, Lip

$

$

Not available

8

Cub Cadet HG-2000014

Arm, Trunnion

$

$

Not available

9

Cub Cadet HG-2000015

Guide, Slot

$22.99

$

Usually ships in 3-6 days

0

10

Cub Cadet HG-2510096

Housing Assembly

$

$

Not available

11

Cub Cadet HG-50552

Bearing Assembly, Thrust Ball
(Superseded to HG-53341)

$39.99

$

Usually ships in 3-6 days

0

12

Cub Cadet HG-2000024

Washer, Block Thrust

$

$

Not available

13

Cub Cadet HG-2000025

Spring, Block

$4.99

$

Usually ships in 3-6 days

0

14

Cub Cadet HG-2510014

Kit, Pump Cylinder Block

$

$

Not available

15

Cub Cadet HG-2000007

Shaft, Motor

$180.99

$

In Stock, only 1 left!

0

16

Cub Cadet HG-70973

Kit, Center Section

$

$

Not available

17

Cub Cadet HG-50641

Pin

$6.99

$

Usually ships in 3-6 days

0

18

Cub Cadet HG-2000061

Gasket, Center Section

$

$

Not available

19

Cub Cadet HG-50203

Swashplate, Variable

$

$

Not available

20

Cub Cadet HG-2510013

Kit, Motor Cylinder Block

$

$

Not available

21

Cub Cadet HG-70743

Shock Valve

$88.99

$

Usually ships in 3-6 days

0

22

Cub Cadet HG-9007314-0808

Screw, Socket Head Cap

$5.99

$

Usually ships in 3-6 days

0

Cub Cadet HG-2510010

Kit, Overhaul Seal

$

$

Not available
