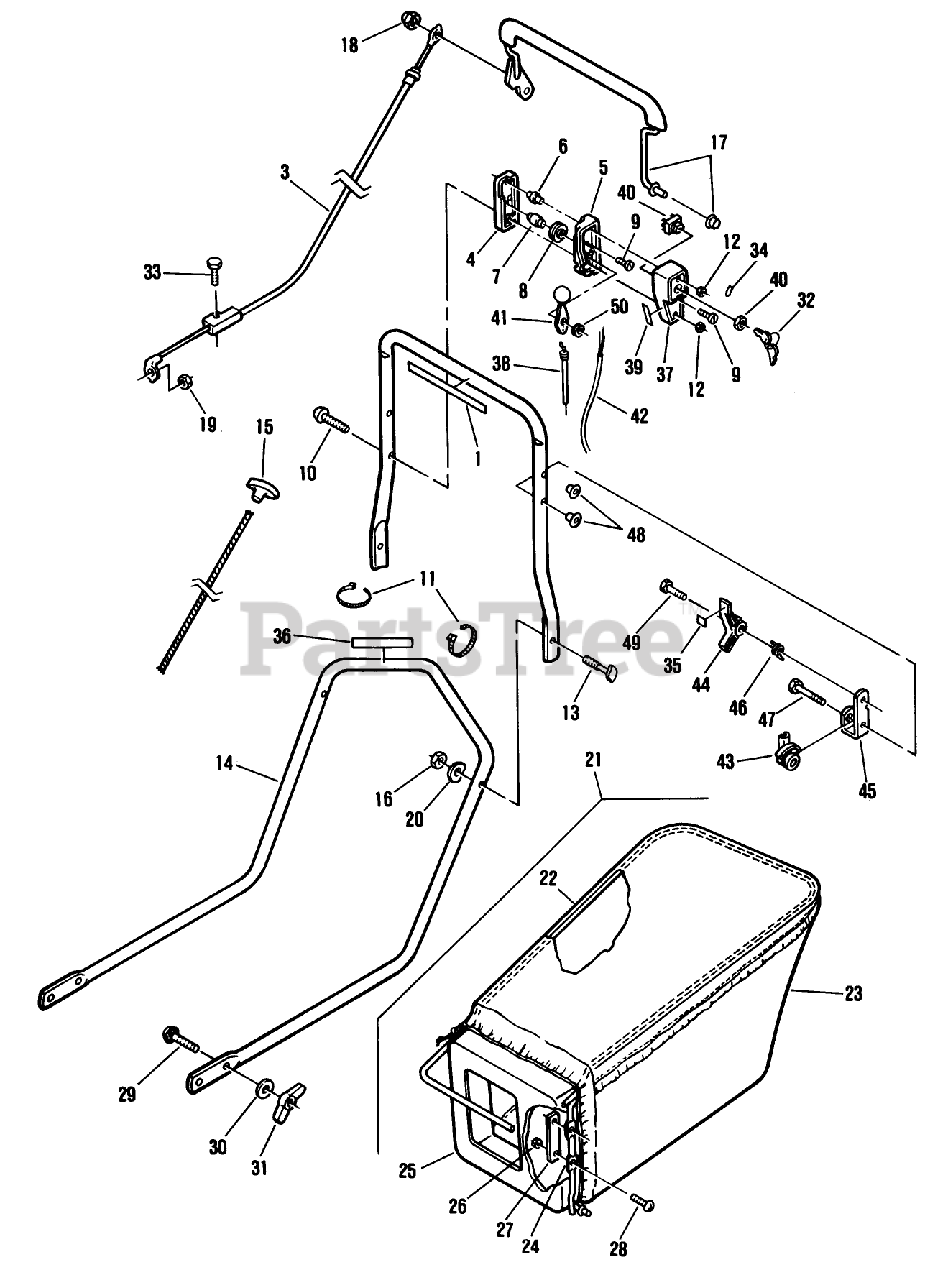

5254 - Lawn-Boy Walk-Behind Mower (SN: E00000001 - E99999999) (1986) Handle Group Model: 4656 Parts Diagram

Walk-Behind Mower

Handle Group Model: 4656 Parts Diagram

  • Title

1

Lawn-Boy 612654

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

2

Lawn-Boy 683736

See Supercession: 612653
(Superseded to 612653)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

3

Lawn-Boy 683671

CONTROL CABLE WES

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$158.99

$

Usually ships in 3-6 days

0

4

Lawn-Boy 611782

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

5

Lawn-Boy 612569

DISCONTINUED
(Superseded to 612633)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

6

Lawn-Boy 611541

COLUMN

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$12.99

$

Usually ships in 3-6 days

0

7

Lawn-Boy 611542

PIN SKF

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$3.49

$

Usually ships in 3-6 days

0

8

Lawn-Boy 612564

PULLEY PL

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$5.49

$

Usually ships in 3-6 days

0

9

Lawn-Boy 611543

SCREW

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$3.99

$

In Stock, only 4 left!

0

10

Lawn-Boy 611799

SCREW

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$4.99

$

Usually ships in 3-6 days

0

11

Lawn-Boy 320107

See Supercession: 614249
(Superseded to 614249)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.49

$

In Stock, Qty 20+

0

12

Lawn-Boy 611258

NUT C/LOCK E

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$3.49

$

Usually ships in 3-6 days

0

13

Lawn-Boy 611205

See Supercession: 322-7
(Superseded to 322-7)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.49

$

In Stock, Qty 20+

0

14

Lawn-Boy 612557

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

15

Lawn-Boy 612430

HANDLE START UM&D

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

16

Lawn-Boy 608311

NUT-LOCK F

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.99

$

Usually ships in 3-6 days

0

17

Lawn-Boy 683738

See Supercession: 683478
(Superseded to 683478)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$138.99

$

Usually ships in 3-6 days

0

18

Lawn-Boy 612168

NUT ACORN

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$17.99

$

Usually ships in 3-6 days

0

19

Lawn-Boy 602315

LOCKNUT E

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$4.49

$

In Stock, only 2 left!

0

20

Lawn-Boy 609739

WASHER-CURVED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$3.49

$

In Stock, Qty 10

0

21

Lawn-Boy 682922

See Supercession: 683796
(Superseded to 683796)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

22

Lawn-Boy 611530

HANGER BAG TROX

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$115.99

$

In Stock, only 2 left!

0

23

Lawn-Boy 682982

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

24

Lawn-Boy 683536

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

25

Lawn-Boy 611500

BAG ADAPTOR PL

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

26

Lawn-Boy 602315

LOCKNUT E

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$4.49

$

In Stock, only 2 left!

0

27

Lawn-Boy 611501

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

28

Lawn-Boy 611499

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

29

Lawn-Boy 146012

See Supercession: 3230-3
(Superseded to 3230-3)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.49

$

In Stock, Qty 20+

0

30

Lawn-Boy 145875

WASHER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

31

Lawn-Boy 607544

NUT-WING

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$22.99

$

In Stock, only 4 left!

0

32

Lawn-Boy 609269

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

33

Lawn-Boy 611774

SCREW-HH

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$3.99

$

In Stock, only 1 left!

0

34

Lawn-Boy 611311

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

35

Lawn-Boy 611334

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

36

Lawn-Boy 612577

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

37

Lawn-Boy 612570

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

38

Lawn-Boy 612561

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

39

Lawn-Boy 612568

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

40

Lawn-Boy 682750

SWITCH AY

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

41

Lawn-Boy 683663

LEVER&KNOB AY WES

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

42

Lawn-Boy 683669

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

43

Lawn-Boy 145792

See Supercession: 146085
(Superseded to 146085)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

44

Lawn-Boy 145793

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

45

Lawn-Boy 611791

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

46

Lawn-Boy 145946

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

47

Lawn-Boy 612580

BOLT QUALITY

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

48

Lawn-Boy 612581

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

49

Lawn-Boy 612582

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

50

Lawn-Boy 612586

WASHER-SPRING

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.99

$

In Stock, Qty 5

0
