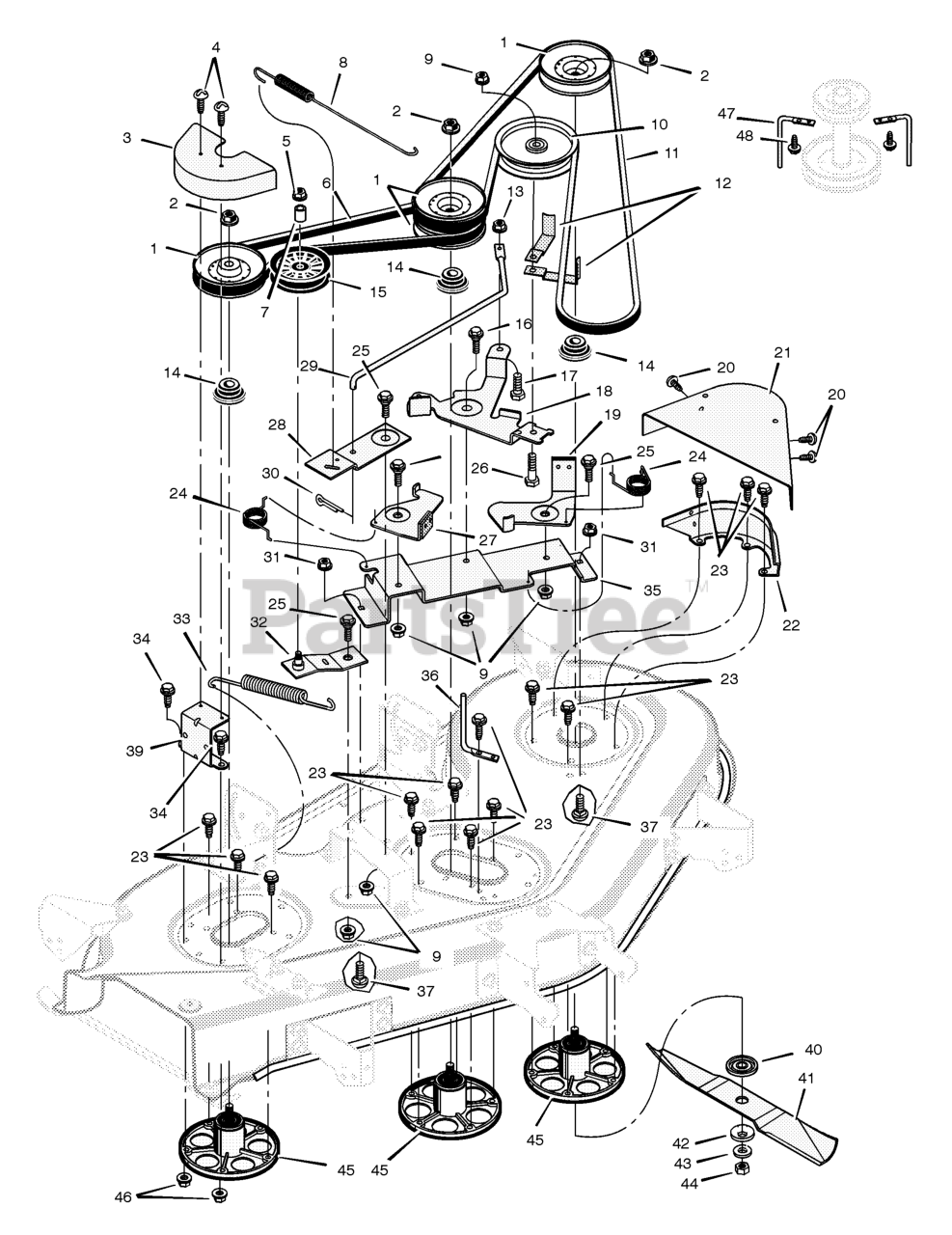

525607x692A - Stanley 52" Lawn Tractor (2001) Blade Drive System Parts Diagram

52" Lawn Tractor

Blade Drive System Parts Diagram

  • Title

1

Murray 690444MA

Pulley

$54.99

$

In Stock, only 1 left!

0

2

Murray 15X121

Nut

$9.99

$

In Stock, only 1 left!

0

3

Murray 094607E701MA

Cover, Right Pulley
(Superseded to 7300857BMYP)

$82.99

$

Usually ships in 2-12 days

0

4

Murray 26X250MA

Screw
(Superseded to 703994)

$4.49

$

In Stock, only 3 left!

0

5

Murray 015X98MA

Locknut, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

6

Murray 7769223

Belt, Secondary

$

$

Currently unavailable

7

Murray 690369MA

Spacer

$5.99

$

In Stock, only 4 left!

0

8

Murray 165X138MA

Spring, Extension

$15.99

$

In Stock, only 1 left!

0

9

Murray 015X84MA

Locknut
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

10

Murray 095068MA

Pulley, Idler

$52.99

$

Usually ships in 2-12 days

0

11

Murray 7769212

Belt, Primary

$

$

Currently unavailable

12

Murray 094809MA

Spring, Belt Guide

$5.49

$

Usually ships in 2-12 days

0

13

Murray 015X89MA

Locknut

$4.49

$

Usually ships in 2-12 days

0

14

Murray 1001197MA

Spacer, Pulley

$12.99

$

Usually ships in 2-12 days

0

15

Murray 690549MA

Pulley, Backside Idler

$29.99

$

Usually ships in 2-12 days

0

16

Murray 009X42MA

Bolt, Shoulder
(Superseded to 704206)

$7.99

$

In Stock, only 2 left!

0

17

Murray 009X54MA

Bolt, Shoulder

$5.49

$

Usually ships in 2-12 days

0

18

Murray 690068E700

Bracket, Idler

$

$

Currently unavailable

19

Murray 95074

Assembly, Brake Arm
(Superseded to 691141)

$3.99

$

In Stock, only 2 left!

0

20

Murray 26X277MA

Screw

$4.99

$

Usually ships in 2-12 days

0

21

Murray 094645E701MA

Cover, Left Pulley
(Superseded to 094605E701MA)

$75.99

$

In Stock, only 1 left!

0

22

Murray 690221E700

Bracket, Pulley Cover

$7.49

$

Usually ships in 2-12 days

0

23

Murray 0025X7MA

Bolt
(Superseded to 2828635SM)

$4.99

$

In Stock, Qty 20+

0

24

Murray 166X41MA

Spring, Torsion

$4.99

$

Usually ships in 2-12 days

0

25

Murray 009X39MA

Bolt, Shoulder

$6.49

$

In Stock, Qty 10

0

26

Murray 01X111MA

Bolt

$4.49

$

In Stock, only 1 left!

0

27

Murray 94698

Assembly, Brake Arm

$

$

Currently unavailable

28

Murray 094808E700

Bellcrank

$

$

Currently unavailable

29

Murray 690119 Z

Link

$

$

Currently unavailable

30

Murray 030X20MA

Pin, Cotter
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

31

Murray 015X79MA

Locknut, Flange
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

32

Murray 94701

Assembly, Idler Arm

$

$

Currently unavailable

33

Murray 165X130MA

Spring, Extension

$7.99

$

Usually ships in 2-12 days

0

34

Murray 001X84MA

CAPSCREW, Hex Head, 5/16-18 x 1
(Superseded to 703585)

$4.99

$

In Stock, Qty 6

0

35

Murray 690414E700

Bracket, Brake Mounting

$

$

Currently unavailable

36

Murray 92424

Rod, Belt Guide

$49.99

$

Usually ships in 2-12 days

0

37

Murray 002X53MA

Bolt, Carriage
(Superseded to 703159)

$3.99

$

In Stock, Qty 20+

0

38

Murray 025X15MA

Screw
(Superseded to 703950)

$5.49

$

In Stock, Qty 6

0

39

Murray 092140E700

Bracket, Cover

$

$

Currently unavailable

40

Murray 7769213MA

Adapter, Blade

$17.99

$

Usually ships in 2-12 days

0

41

Murray 7769205

Blade

$

$

Not available

42

Murray 17X166MA

Washer

$13.99

$

In Stock, only 3 left!

0

43

Murray 17X165MA

Washer

$16.99

$

In Stock, only 1 left!

0

44

Murray 15X100MA

Nut

$3.99

$

In Stock, Qty 5

0

45

Murray 1001200MA

Assembly, Jackshaft Housing

$82.99

$

In Stock, Qty 15

0

46

Murray 015X88MA

Nut
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

47

Murray 091797 Z

Guide, Belt

$

$

Currently unavailable

48

Murray 025X15MA

Screw
(Superseded to 703950)

$5.49

$

In Stock, Qty 6

0
