525607x692B - Stanley 52" Lawn Tractor (2002) Mower Housing Parts Diagram

52" Lawn Tractor

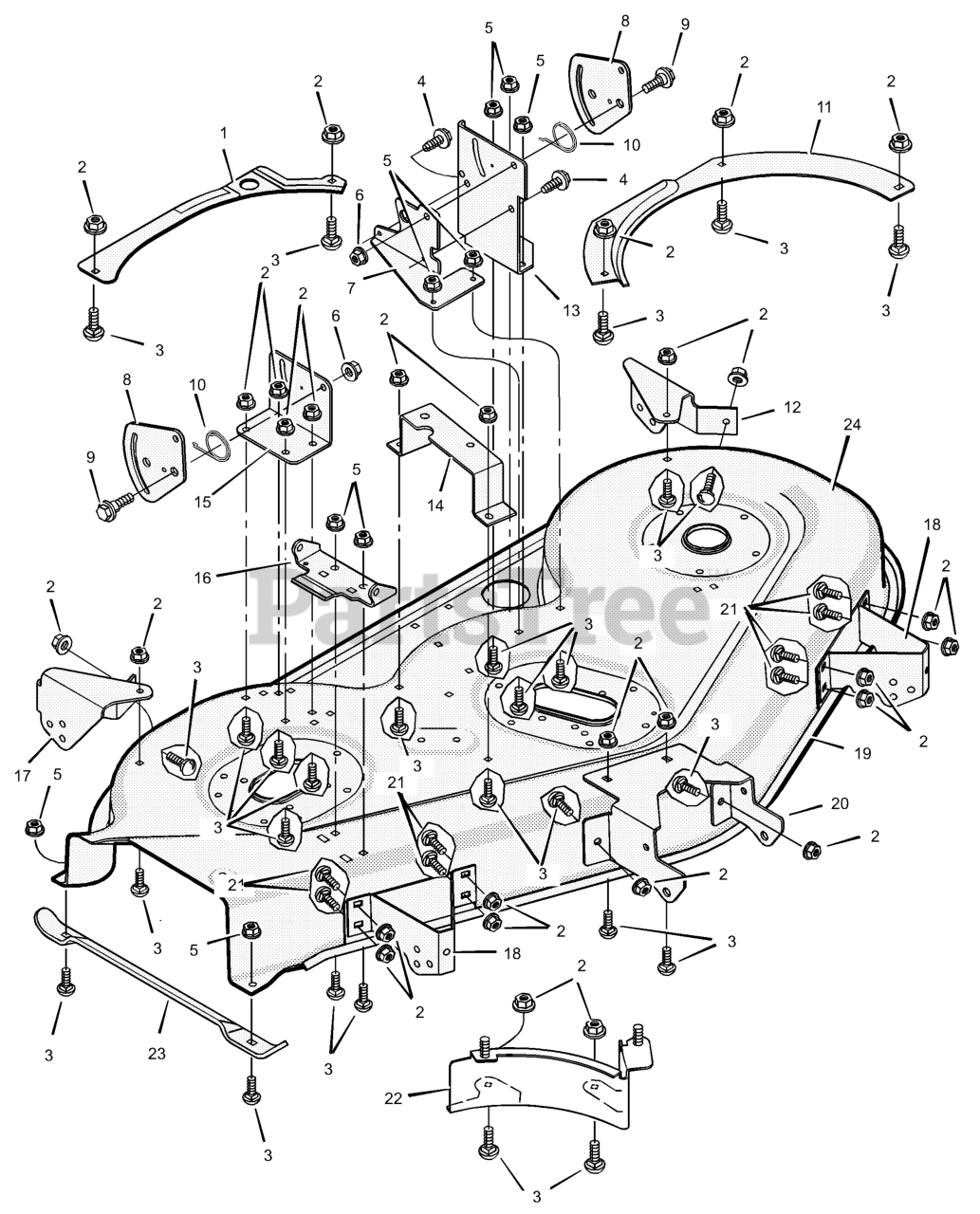

Mower Housing Parts Diagram

  • Title

1

Murray 094117E701

Baffle, Right Bottom

$

$

Currently unavailable

2

Murray 015X79MA

Locknut, Flange
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

3

Murray 002X53MA

Bolt, Carriage
(Superseded to 703159)

$3.99

$

In Stock, Qty 20+

0

4

Murray 26X249MA

Screw

$

$

Not available

5

Murray 015X88MA

Locknut
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

6

Murray 015X84MA

Locknut
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

7

Murray 690078E701

Brace, Hi Lifter

$202.99

$

Usually ships in 2-12 days

0

8

Murray 1001154E701

Plate, Suspension

$119.99

$

Usually ships in 2-12 days

0

9

Murray 009X51MA

Bolt, Shoulder

$4.99

$

In Stock, Qty 19

0

10

Murray 166X42MA

Spring, Torsion

$4.99

$

In Stock, Qty 10

0

11

Murray 094118E701

Baffle, Left Bottom

$75.99

$

Usually ships in 2-12 days

0

12

Murray 094717E700

Bracket, Rear Gage Wheel

$

$

Not available

13

Murray 690164E701

Bracket, Left Lifter

$20.99

$

Usually ships in 2-12 days

0

14

Murray 690118E700

Bracket, Bellcrank

$

$

Currently unavailable

15

Murray 094694E700

Bracket, Right Lifter

$

$

Currently unavailable

16

Murray 092104E701MA

Bracket, Hinge

$9.99

$

Usually ships in 2-12 days

0

17

Murray 094716E700

Bracket, Rear Gage Wheel

$

$

Currently unavailable

18

Murray 1001272E700

Bracket, Front Gage Wheel

$

$

Currently unavailable

19

Murray 1001181E700

Assembly, Reinforcement

$

$

Currently unavailable

20

Murray 094693E700MA

Bracket, Front Deck
(Superseded to 7300802DYP)

$66.99

$

Usually ships in 2-12 days

0

21

Murray 002X64MA

Bolt, Carriage

$4.49

$

In Stock, Qty 5

0

22

Murray 690135E701

Assembly, Baffle

$

$

Currently unavailable

23

Murray 095176E701MA

Bracket, Chute Support

$9.99

$

Usually ships in 2-12 days

0

24

UNKNOWN

$

$

Not available
