526 Sprint (1690532) - AGCO Sprint 26" Rear-Engine Riding Mower, 8hp 26" & 30" Linkage & Roller Support Group Parts Diagram

Sprint 26" Rear-Engine Riding Mower, 8hp

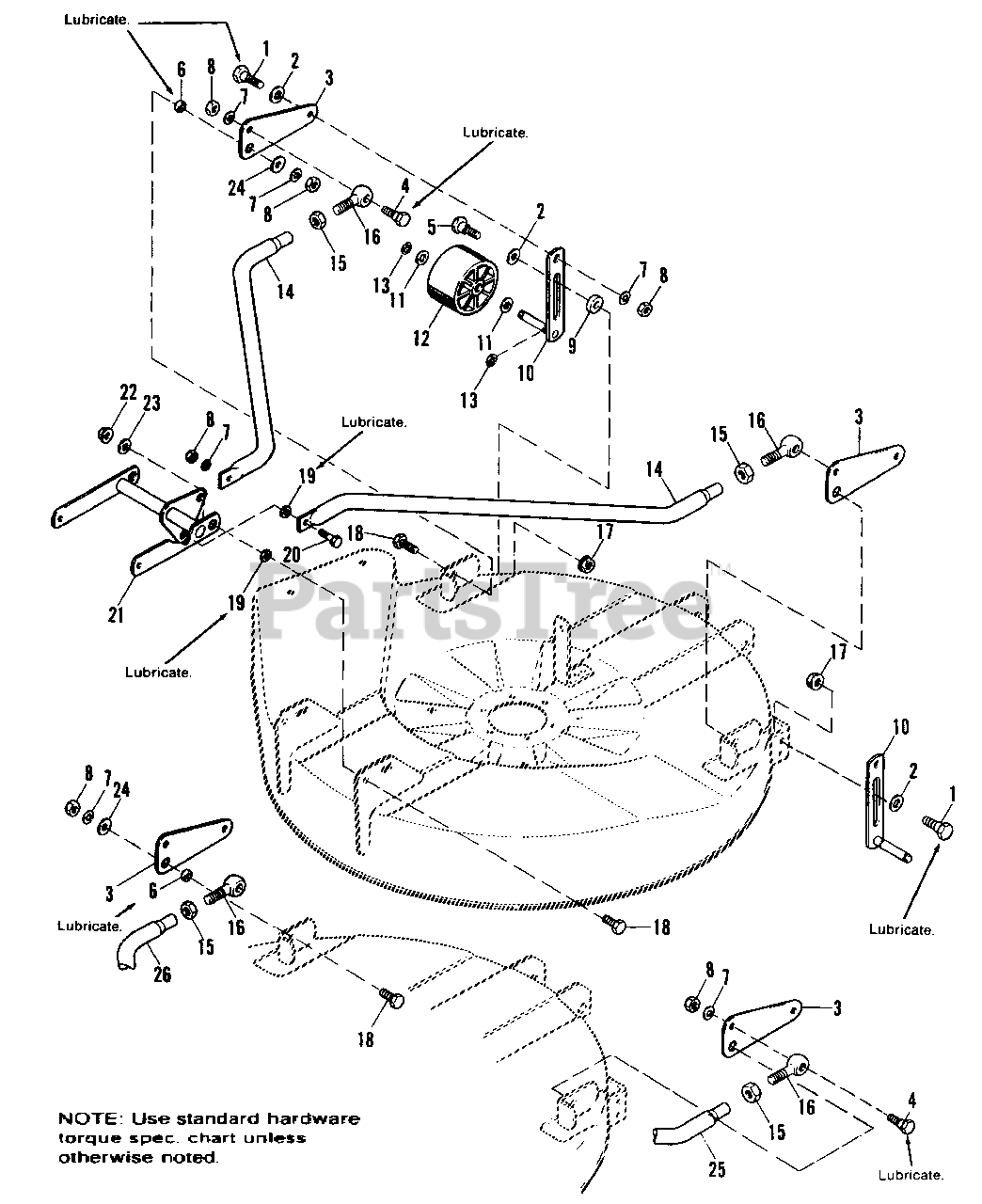

26" & 30" Linkage & Roller Support Group Parts Diagram

  • Title

1

Simplicity 2172622SM

BOLT, Shoulder, 3/8-16 X 1.34

$6.99

$

In Stock, Qty 20+

0

2

Simplicity 2824361

WASHER, Plain, 7/16

$

$

Not available

3

Simplicity 1664604

ARM

$

$

Not available

4

Simplicity 2108412

BOLT, Shoulder

$

$

Not available

5

Simplicity 2172622SM

BOLT, Shoulder, 3/8-16 X 1.34

$6.99

$

In Stock, Qty 20+

0

6

Simplicity 1663752SM

WASHER, Spring

$5.99

$

In Stock, only 4 left!

0

7

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 11

0

8

Simplicity 2816950SM

NUT, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 11

0

9

Simplicity 2172454SM

SPACER (26" Mower Only)

$

$

Not available

10

Simplicity 1665685A

ROLLER SUPPORT ASSY.
(Superseded to 1665685ASM)

$70.99

$

Usually ships in 2-12 days

0

11

Simplicity 2819387

WASHER, Plain, 5/8

$

$

Not available

12

Simplicity 1668487SM

ROLLER

$9.99

$

In Stock, Qty 20+

0

13

Simplicity 2153124SM

RING, Retaining

$5.99

$

In Stock, Qty 20+

0

14

Simplicity 1664598

ARM, Adjusting (30" Mower Only)

$

$

Not available

15

Simplicity 2819262

NUT, Jam, 1/2-20

$

$

Not available

16

Simplicity 2157215SM

BOLT, Eye

$

$

Not available

17

Simplicity 2828352

LOCKNUT, Flange, Whiz, 3/8-16
(Superseded to 703793)

$4.49

$

In Stock, Qty 10

0

18

Simplicity 2821210

CAPSCREW, Hex, 3/8-16 x 1

$

$

Not available

19

Simplicity 2108717SM

SPACER

$17.99

$

In Stock, only 4 left!

0

20

Simplicity 1920415SM

CAPSCREW, Hex, 3/8-16 x 1-1/4
(Superseded to 703871)

$4.99

$

In Stock, only 1 left!

0

21

Simplicity 1666183

SUPPORT ARM ASSY.

$

$

Not available

22

Simplicity 2830645

LOCKNUT, Flange, Center, 3/8-16

$

$

Not available

23

Simplicity 2822755

WASHER
(Superseded to 704128)

$4.99

$

In Stock, Qty 9

0

24

Simplicity 2824356

WASHER

$

$

Not available

25

Simplicity 1666019

ARM, Adjusting, L.H. (26" Mower Only)

$

$

Not available

26

Simplicity 1666018

ARM, Adjusting, R.H. (26" Mower Only

$

$

Not available

27

Simplicity 1663752SM

SPACER

$5.99

$

In Stock, only 4 left!

0
