52627 - Gravely GEM Lawn Tractor, 14hp Kohler, Hydro SEAT AND REAR DECK Parts Diagram

GEM Lawn Tractor, 14hp Kohler, Hydro

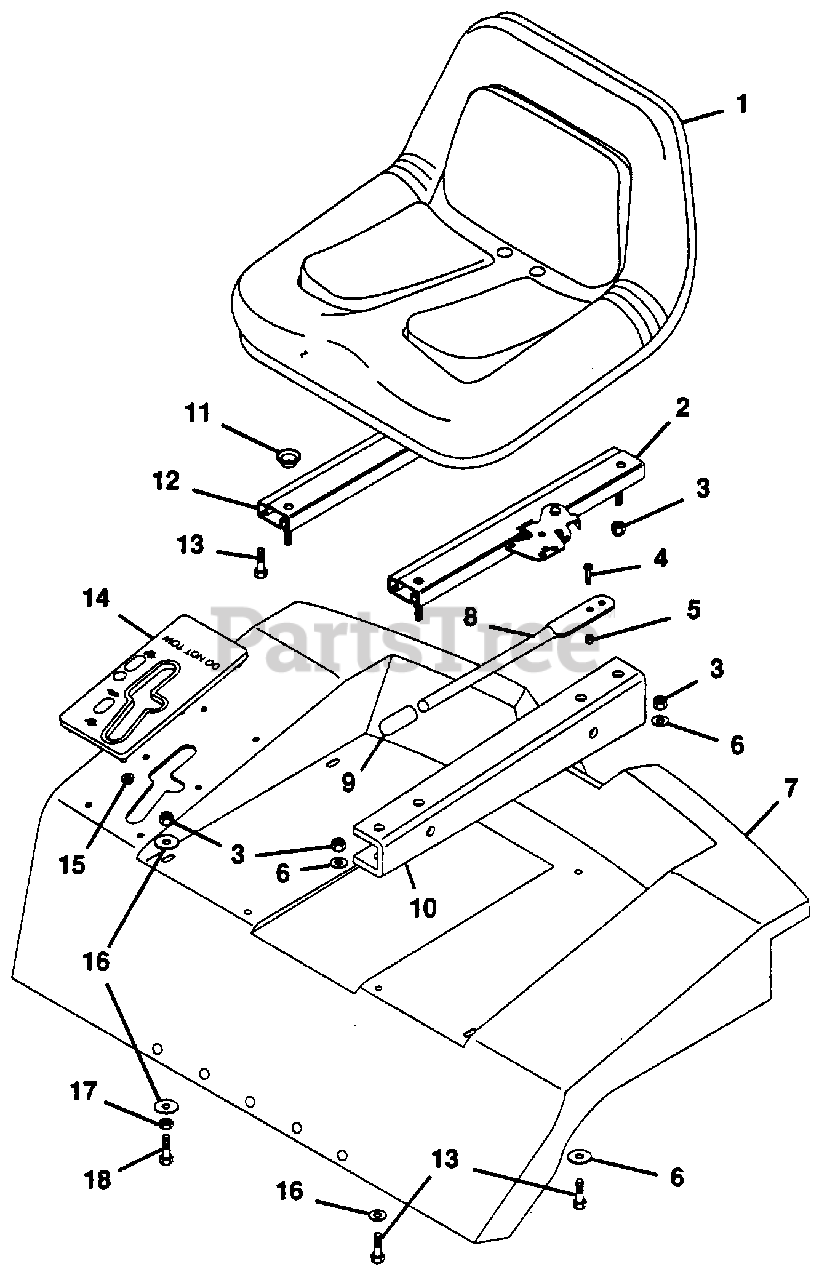

SEAT AND REAR DECK Parts Diagram

  • Title

1

Gravely 048928

BRKT,CAN SUPPORT L.H.
(Superseded to 08985900)

$

$

Not available

2

Gravely 035641

SEAT SLIDES -(RAME TAK-3010-4)
(Superseded to 03600800)

$

$

Not available

3

Gravely 419455

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$1.49

$

In Stock, Qty 5

0

4

Gravely 159929

SCR-MCH 10-24X.62 P/HD
(Superseded to 06111100)

$1.49

$

In Stock, Qty 10

0

5

Gravely 190254

NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 120393

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 050155

REAR DECK
(Superseded to 03449353)

$

$

Not available

8

Gravely 039063

SEAT SLIDE HANDLE
(Superseded to 03416500)

$

$

Not available

9

Gravely 043192

TIP - BRAKE LOCK LEVER
(Superseded to 07503800)

$1.99

$

In Stock, only 2 left!

0

10

Gravely 048604

SPACER-SEAT
(Superseded to 03340200)

$

$

Not available

11

Gravely 035670

SEAT SLIDE SPACER
(Superseded to 03418300)

$4.49

$

Usually ships in 4-12 days

0

12

Gravely 035642

SEAT SLIDES -(RAME TAK-3010-4)
(Superseded to 03600800)

$

$

Not available

13

Gravely 180077

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

14

Gravely 050154

INSERT
(Superseded to 03450000)

$

$

Not available

15

Gravely 050378

PALNUT-.25
(Superseded to 07017900)

$

$

Not available

16

Gravely 446470

WSHR-FL-STL .375X1.125X.065YWZ
(Superseded to 06401139)

$2.99

$

In Stock, Qty 14

0

17

Gravely 120376

NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$1.49

$

In Stock, Qty 8

0

18

Gravely 180079

BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.99

$

In Stock, Qty 20+

0
