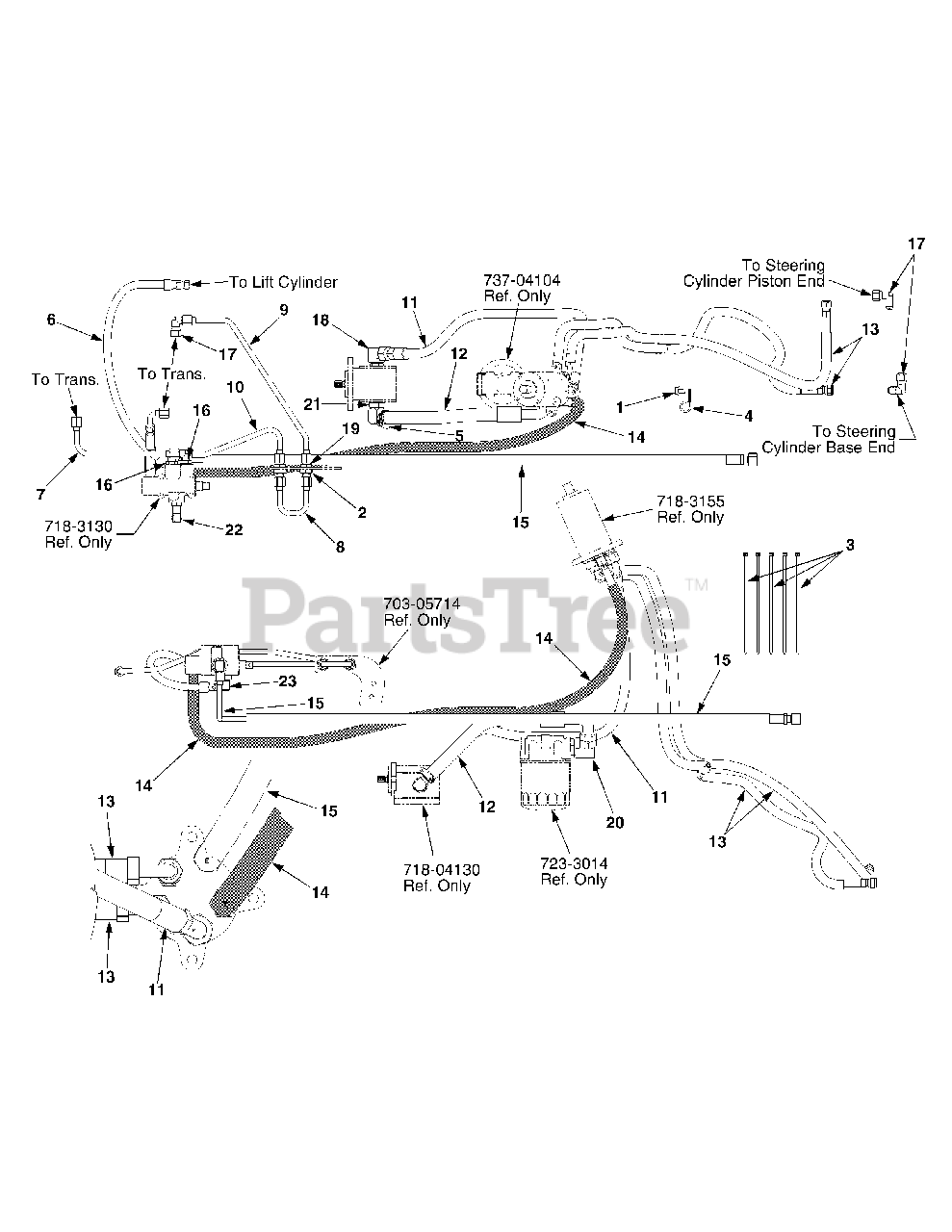

5264 DE (54BE546-710) - Cub Cadet Series 5000 Tractor Hydraulics Parts Diagram

Series 5000 Tractor

Hydraulics Parts Diagram

  • Title

1

Cub Cadet 710-0607

Screw, Hex Wash Hd Tapp, 5/16-18 x .5

$6.49

$

In Stock, Qty 20+

0

2

Cub Cadet 712-3035

Nut, Hex Jam, 9/16-18 GR5

$6.49

$

Usually ships in 3-6 days

0

3

Cub Cadet 725-0157

Tie, Cable

$3.49

$

In Stock, only 4 left!

0

4

Cub Cadet 726-04004

Clamp, Hose

$

$

Not available

5

Cub Cadet 726-0132

Clamp, Adjustable Hose

$14.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 727-04014

Hose, Lift Cylinder

$

$

Not available

7

Cub Cadet 727-04015

Tube, Cylinder Return

$

$

Not available

8

Cub Cadet 727-04079

Tube, U Return

$

$

Not available

9

Cub Cadet 727-04082

Tube, Return Tank

$

$

Not available

10

Cub Cadet 727-04083

Tube, Return

$

$

Not available

11

Cub Cadet 727-04096

Hose, Steering Pressure
(Superseded to 927-04096)

$

$

Not available

12

Cub Cadet 727-04127

Hose, Aux. Pump-Filter

$

$

Not available

13

Cub Cadet 727-04129

Hose, Steering

$

$

Not available

14

Cub Cadet 727-04146

Hose, Steering - Tank

$

$

Not available

15

Cub Cadet 727-04149

Hose, Lift Inlet - w/45 degree Hydraulic Fitting at Steering Pump

$94.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 727-04150

Hose, Lift Inlet - w/Straight Hydraulic Fitting at Steering Pump

$

$

Not available

16

Cub Cadet 727-3012

Fitting, 90 Degree

$24.99

$

In Stock, only 4 left!

0

17

Cub Cadet 737-04033

Fitting, 90 Degree Swivel
(Superseded to 937-04033)

$

$

Not available

18

Cub Cadet 737-3111

Fitting, 90 Degree

$

$

Not available

19

Cub Cadet 737-04087

Fitting, Bulkhead

$

$

Not available

20

Cub Cadet 737-04101

Fitting, 90 Degree

$

$

Not available

21

Cub Cadet 737-04114

Fitting, 10 Orb:5/8 tube

$

$

Not available

22

Cub Cadet 737-04139

Fitting, 90Degree

$

$

Not available

23

Cub Cadet 737-3127

Fitting, 90 Degree

$

$

Not available
