5264 DL (54BL546-710) - Cub Cadet Series 5000 Tractor Gasket Sets Parts Diagram

Series 5000 Tractor

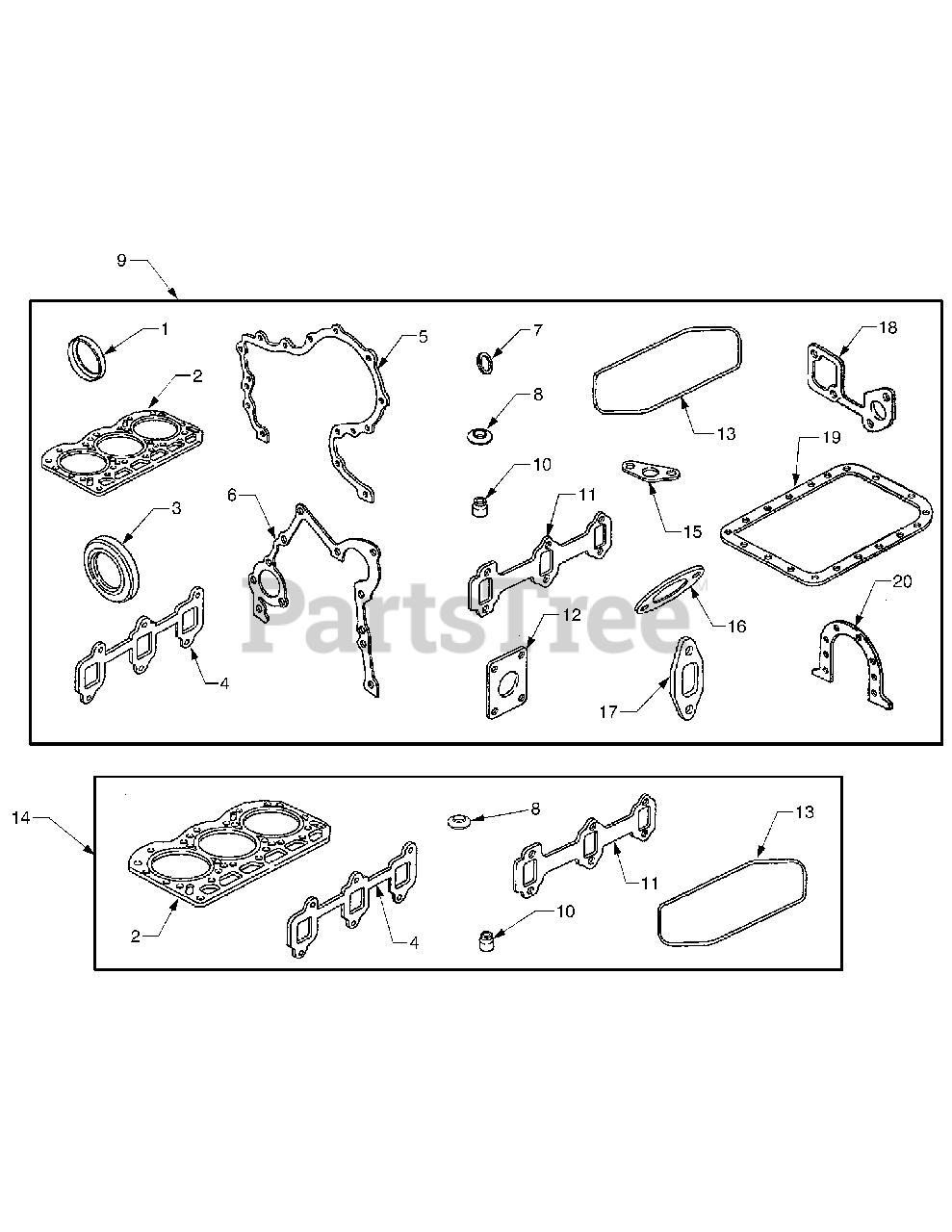

Gasket Sets Parts Diagram

  • Title

1

Cub Cadet BS-821071

Seal, Oil

$76.99

$

Usually ships in 2-12 days

0

2

Cub Cadet BS-820660

Gasket, Cylinder Head

$156.99

$

Usually ships in 2-12 days

0

3

Cub Cadet BS-821073

Seal, Oil
(Superseded to BS-821328)

$76.99

$

Usually ships in 2-12 days

0

4

Cub Cadet BS-820407

Gasket, Intake

$22.99

$

Usually ships in 2-12 days

0

5

Cub Cadet BS-820377

Gasket, Gear Cover

$32.99

$

In Stock, only 1 left!

0

6

Cub Cadet BS-820155

Gasket, Gear Cover

$32.99

$

Usually ships in 2-12 days

0

7

Cub Cadet BS-820582

Washer, Sealing

$7.99

$

In Stock, only 2 left!

0

8

Cub Cadet BS-820064

Washer, Sealing

$8.49

$

Usually ships in 2-12 days

0

9

Cub Cadet BS-825380

Gasket Set - Engine
(Superseded to BS-825757)

$

$

Not available

10

Cub Cadet BS-820405

Seal, Valve

$13.99

$

Usually ships in 2-12 days

0

11

Cub Cadet BS-820817

Gasket, Exhaust

$39.99

$

Usually ships in 2-12 days

0

12

Cub Cadet BS-820670

Gasket, Exhaust
(Superseded to BS-821001)

$39.99

$

In Stock, only 2 left!

0

13

Cub Cadet BS-820150

Gasket, Rocker Cover

$39.99

$

In Stock, only 2 left!

0

14

Cub Cadet BS-825381

Gasket Set - Valve

$218.99

$

Usually ships in 2-12 days

0

15

Cub Cadet BS-820104

Gasket, Oil Pump Screen

$7.99

$

Usually ships in 2-12 days

0

16

Cub Cadet BS-820093

Gasket, Outlet

$11.99

$

Usually ships in 2-12 days

0

17

Cub Cadet BS-820098

Gasket, Inlet Housing

$6.99

$

In Stock, only 2 left!

0

18

Cub Cadet BS-820100

Gasket, Water Pump

$12.99

$

In Stock, only 1 left!

0

19

Cub Cadet BS-820137

Gasket, Oil Pan

$46.99

$

Usually ships in 2-12 days

0

20

Cub Cadet BS-820145

Gasket, Retainer

$12.99

$

Usually ships in 2-12 days

0
