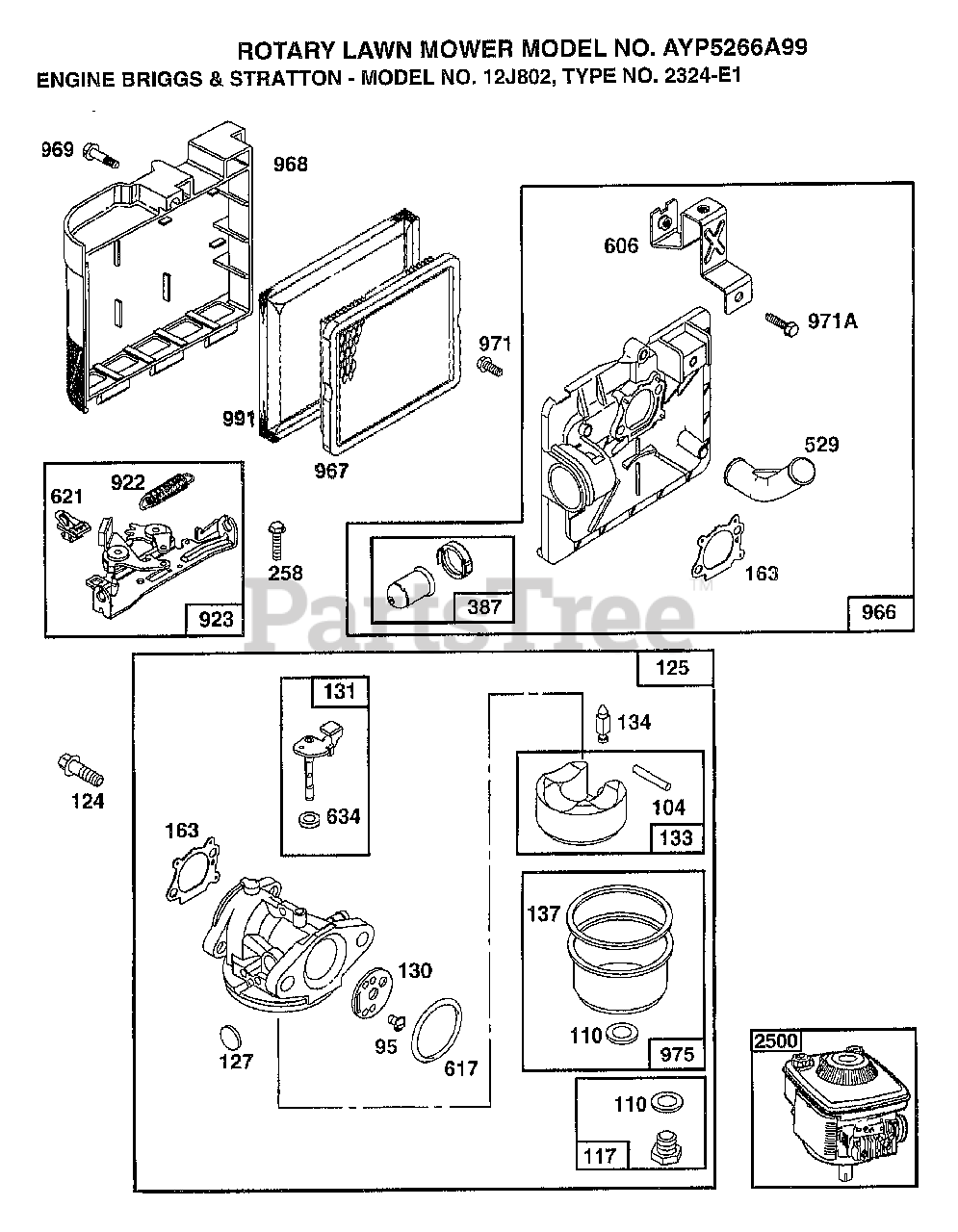

5266 A99 - Electrolux/AYP Walk-Behind Mower (1999) BRIGGS AND STRATTON ENGINE Parts Diagram

Walk-Behind Mower

BRIGGS AND STRATTON ENGINE Parts Diagram

  • Title

1

Electrolux/AYP 494062

CYLINDER ASSY

$

$

Not available

2

Electrolux/AYP 399269

BUSHING ASSY

$

$

Not available

3

Electrolux/AYP 299819

SEAL, OIL

$

$

Not available

5

Electrolux/AYP 214368

HEAD, CYLINDER

$

$

Not available

7

Electrolux/AYP 272916

GASKET, CYLINDER HEAD

$

$

Not available

8

Electrolux/AYP 495786

BREATHER, VALVE CHAMBER

$

$

Not available

9

Electrolux/AYP 272481

GASKET, VALVE COVER

$

$

Not available

9A

Electrolux/AYP 272238

GASKET, BAFFLE PLATE

$

$

Not available

10

Electrolux/AYP 94650

SCREW

$

$

Not available

11

Electrolux/AYP 231933

TUBE, BREATHER

$

$

Not available

12

Electrolux/AYP 272198

GASKET, CRANKCASE

$

$

Not available

13

Electrolux/AYP 94547

SCREW, CYLINDER HEAD

$

$

Not available

15

Electrolux/AYP 94720

PLUG, OIL DRAIN

$

$

Not available

16

Electrolux/AYP 493362

CRANKSHAFT

$

$

Not available

16

Electrolux/AYP 94388

TIMING GEAR KEY
(Superseded to 690979)

$3.49

$

In Stock, only 3 left!

0

18

Electrolux/AYP 493279

SUMP, ENGINE

$

$

Not available

20

Electrolux/AYP 399781

SEAL, OIL

$

$

Not available

22

Electrolux/AYP 94220

SCREW, HEX HEAD

$

$

Not available

22

Electrolux/AYP 94612

SCREW, HEX HEAD

$

$

Not available

23

Electrolux/AYP 492177

FLYWHEEL

$

$

Not available

24

Electrolux/AYP 222698

KEY, FLYWHEEL

$

$

Not available

25

Electrolux/AYP 494058

PISTON ASSY, STANDARD SIZE

$

$

Not available

25

Electrolux/AYP 494059

PISTON ASSY, .010" OVERSIZE

$

$

Not available

25

Electrolux/AYP 494060

PISTON ASSY, .020" OVERSIZE

$

$

Not available

25

Electrolux/AYP 494061

PISTON ASSY, .030" OVERSIZE

$

$

Not available

26

Electrolux/AYP 493261

RING SET, PISTON, STANDARD SIZE

$

$

Not available

26

Electrolux/AYP 493388

RING SET, PISTON, .010" OVERSIZE

$

$

Not available

26

Electrolux/AYP 493389

RING SET, PISTON, .020" OVERSIZE

$

$

Not available

26

Electrolux/AYP 493390

RING SET, PISTON, .030" OVERSIZE

$

$

Not available

27

Electrolux/AYP 26026

LOCK, PISTON PIN

$

$

Not available

28

Electrolux/AYP 298909

PIN ASSY, PISTON, STD

$

$

Not available

28

Electrolux/AYP 298908

PIN ASSEMBLY, PISTON .005" OVERSIZE

$

$

Not available

29

Electrolux/AYP 490566

ROD, CONNECTING

$

$

Not available

29

Electrolux/AYP 490743

ROD, CONNECTING, .020" UNDERSIZE

$

$

Not available

32

Electrolux/AYP 94699

SCREW

$

$

Not available

33

Electrolux/AYP 262651

VALVE, EXHAUST

$

$

Not available

34

Electrolux/AYP 262652

VALVE, INTAKE

$

$

Not available

35

Electrolux/AYP 262224

SPRING, VALVE

$

$

Not available

40

Electrolux/AYP 93312

RETAINER, VALVE SPRING

$

$

Not available

45

Electrolux/AYP 262204

TAPPET, VALVE

$

$

Not available

46

Electrolux/AYP 492830

GEAR, CAM

$

$

Not available

47

Electrolux/AYP 493737

SLINGER, OIL

$

$

Not available

52

Electrolux/AYP 272199

GASKET, INTAKE ELBOW

$

$

Not available

54

Electrolux/AYP 94526

SCREW, HEX HEAD

$

$

Not available

55

Electrolux/AYP 497440

HOUSING, REWIND STARTER

$

$

Not available

56

Electrolux/AYP 498144

PULLEY, REWIND STARTER

$

$

Not available

58

Electrolux/AYP 280399

ROPE, REWIND STARTER (CUT TO 88-5/8)

$

$

Not available

59

Electrolux/AYP 396892

INSERT, HANDLE

$

$

Not available

60

Electrolux/AYP 281434

GRIP, STARTER ROPE

$

$

Not available

65

Electrolux/AYP 94696

SCREW

$

$

Not available

69

Electrolux/AYP 280973

WASHER

$

$

Not available

69A

Electrolux/AYP 224322

WASHER

$

$

Not available

81

Electrolux/AYP 223664

LOCK, MUFFLER SCREW

$

$

Not available

95

Electrolux/AYP 94098

SCREW, THROTTLE

$

$

Not available

104

Electrolux/AYP 231371

PIN, FLOAT HINGE

$

$

Not available

116

Electrolux/AYP PARTSIMAGE

REFER TO PARTS IMAGE

$

$

Not available

117

Electrolux/AYP 487466

JET, MAIN (STANDARD)

$

$

Not available

117

Electrolux/AYP 497315

JET, MAIN (HIGH ALTITUDE)

$

$

Not available

121

Electrolux/AYP 498260

CARBURETOR KIT

$16.99

$

In Stock, Qty 20+

0

124

Electrolux/AYP 94525

SCREW, CARBURETOR MOUNTING

$

$

Not available

125

Electrolux/AYP 497586

CARBURETOR

$

$

Not available

127

Electrolux/AYP PARTSIMAGE

REFER TO PARTS IMAGE

$

$

Not available

130

Electrolux/AYP 224908

VALVE, THROTTLE

$

$

Not available

131

Electrolux/AYP 493267

SHAFT, THROTTLE

$

$

Not available

133

Electrolux/AYP 398187

FLOAT, CARBURETOR

$

$

Not available

134

Electrolux/AYP 398188

VALVE, INLET

$

$

Not available

137

Electrolux/AYP PARTSIMAGE

REFER TO PARTS IMAGE

$

$

Not available

163

Electrolux/AYP 272653

GASKET AIR CLEANER

$

$

Not available

187

Electrolux/AYP 492790

HOSE, FUEL

$

$

Not available

188

Electrolux/AYP 398540

SCREW, HEX HEAD

$

$

Not available

188A

Electrolux/AYP 94644

SCREW, HEX HEAD

$

$

Not available

201

Electrolux/AYP 262579

LINK, GOVERNOR

$

$

Not available

209

Electrolux/AYP 263044

SPRING, GOVERNOR

$

$

Not available

227

Electrolux/AYP 492349

LEVER, GOVERNOR

$

$

Not available

230

Electrolux/AYP 67072

WASHER, THRUST

$

$

Not available

258

Electrolux/AYP 94512

SCREW, HEX HEAD

$

$

Not available

284

Electrolux/AYP 94511

SCREW, HEX HEAD

$

$

Not available

300

Electrolux/AYP 496106

MUFFLER, EXHAUST

$

$

Not available

304

Electrolux/AYP 493293

HOUSING, BLOWER

$

$

Not available

305

Electrolux/AYP 94786

SCREW

$

$

Not available

306

Electrolux/AYP 224324

SHIELD, CYLINDER

$

$

Not available

307

Electrolux/AYP 94515

SCREW HEX HD

$

$

Not available

332

Electrolux/AYP 92284

NUT, FLYWHEEL

$

$

Not available

333

Electrolux/AYP 802574

ARMATURE, MAGNETO

$

$

Not available

334

Electrolux/AYP 94731

SCREW, SEMS

$

$

Not available

337

Electrolux/AYP 802592

PLUG, SPARK

$

$

Not available

346

Electrolux/AYP 99896

SCREW, HEX

$

$

Not available

346A

Electrolux/AYP 94874

SCREW, HEX

$

$

Not available

356

Electrolux/AYP 398808

WIRE, GROUND

$

$

Not available

358

Electrolux/AYP 497316

GASKET SET

$

$

Not available

363

Electrolux/AYP 19069

PULLEY, FLYWHEEL

$

$

Not available

383

Electrolux/AYP 89838

WRENCH SPARK PLUG

$

$

Not available

387

Electrolux/AYP 496115

PRIMER, CARBURETOR

$

$

Not available

455

Electrolux/AYP 225121

CUP, STARTER

$

$

Not available

456

Electrolux/AYP 281503

RETAINER, STARTER

$

$

Not available

459

Electrolux/AYP 281505

PAWL, RATCHET

$

$

Not available

461

Electrolux/AYP 94943

P/N CONFLICT - CHECK WITH SUPPLIER

$

$

Not available

515

Electrolux/AYP 263073

SPRING, RETAINER

$

$

Not available

523

Electrolux/AYP 495264

CAP W/DIPSTICK, OIL FILTER

$

$

Not available

524

Electrolux/AYP 280393

SEAL, FILLER TUBE

$

$

Not available

525

Electrolux/AYP 495265

TUBE, OIL FILLER

$

$

Not available

529

Electrolux/AYP 281299

GROMMET, BREATHER

$

$

Not available

562

Electrolux/AYP 94852

BOLT, GOVERNOR LEVER

$

$

Not available

572

Electrolux/AYP 224328

BAFFLE, CYLINDER

$

$

Not available

592

Electrolux/AYP 231082

NUT, HEX

$

$

Not available

601

Electrolux/AYP 93053

CLAMP, HOSE, GREEN

$

$

Not available

606

Electrolux/AYP 224815

STRAP, BRKT

$

$

Not available

608

Electrolux/AYP 497680

STARTER, REWIND

$

$

Not available

608

Electrolux/AYP 94904

SCREW, SEMS

$

$

Not available

608

Electrolux/AYP 94908

NUT, HEX

$

$

Not available

613

Electrolux/AYP 94231

SCREW, HEX HEAD

$

$

Not available

615

Electrolux/AYP 94474

FASTENER

$

$

Not available

616

Electrolux/AYP 262578

CRANK, GOVERNOR

$

$

Not available

617

Electrolux/AYP 270344

SEAL, FUEL INTAKE TUBE

$

$

Not available

620

Electrolux/AYP 497203

BRACKET, CARBURETOR

$

$

Not available

621

Electrolux/AYP 396847

SWITCH, STOP

$

$

Not available

625

Electrolux/AYP 281085

TUBE, FUEL INTAKE

$

$

Not available

634

Electrolux/AYP PARTSIMAGE

REFER TO PARTS IMAGE

$

$

Not available

635

Electrolux/AYP 66538

ELBOW, SPARK PLUG

$

$

Not available

670

Electrolux/AYP 280512

SPACER, FUEL TANK

$

$

Not available

670A

Electrolux/AYP 493823

SPACER, BRACKET

$

$

Not available

741

Electrolux/AYP 262598

GEAR, TIMING

$

$

Not available

832

Electrolux/AYP 494224

GUARD MUFFLER

$

$

Not available

842

Electrolux/AYP 280966

SEAL, O-RING

$

$

Not available

847

Electrolux/AYP 495263

TUBE ASSEMBLY, OIL

$

$

Not available

851

Electrolux/AYP 493880

TERMINAL, IGNITION CABLE

$

$

Not available

869

Electrolux/AYP 213512

SEAT, INTAKE VALVE

$

$

Not available

870

Electrolux/AYP 213513

SEAT, EXHAUST VALVE

$

$

Not available

871

Electrolux/AYP 262001

GUIDE, EXHAUST VALVE

$

$

Not available

871

Electrolux/AYP 63709

GUIDE, INTAKE VALVE

$

$

Not available

922

Electrolux/AYP 262640

SPRING, BRAKE

$

$

Not available

923

Electrolux/AYP 493442

BRAKE ASSEMBLY

$

$

Not available

949

Electrolux/AYP 497233

GUARD, FINGER

$

$

Not available

955

Electrolux/AYP 494870

P/N CONFLICT - CHECK WITH SUPPLIER

$

$

Not available

957

Electrolux/AYP 397974

CAP, FUEL TANK

$

$

Not available

966

Electrolux/AYP 496116

BASE AIR CLEANER

$

$

Not available

967

Electrolux/AYP 491588

SUB= 3364

$6.49

$

In Stock, Qty 20+

0

968

Electrolux/AYP 281340

COVER AIR CLEANER

$

$

Not available

969

Electrolux/AYP 94120

SCREW, HEX HEAD

$

$

Not available

971

Electrolux/AYP 94121

SCREW, HEX HEAD

$

$

Not available

971A

Electrolux/AYP 94749

SCREW, HEX HEAD

$

$

Not available

972

Electrolux/AYP 495224

TANK ASSY FUEL

$

$

Not available

975

Electrolux/AYP 493640

BOWL, FLOAT

$

$

Not available

977

Electrolux/AYP 490937

GASKET SET, CARBURETOR

$

$

Not available

988

Electrolux/AYP 223828

BRACKET, MUFFLER

$

$

Not available

991

Electrolux/AYP 493537

PRE-FILTER

$

$

Not available

1016

Electrolux/AYP 224278

COVER, REWIND STARTER

$

$

Not available

1019

Electrolux/AYP 496658

LABEL KIT

$

$

Not available

Electrolux/AYP 498261

CARBURETOR GASKET SET

$

$

Not available
