52664 - Gravely Pro 300 Walk-Behind Mower, 16hp Briggs & Stratton Pto Clutch Linkage Parts Diagram

Pro 300 Walk-Behind Mower, 16hp Briggs & Stratton

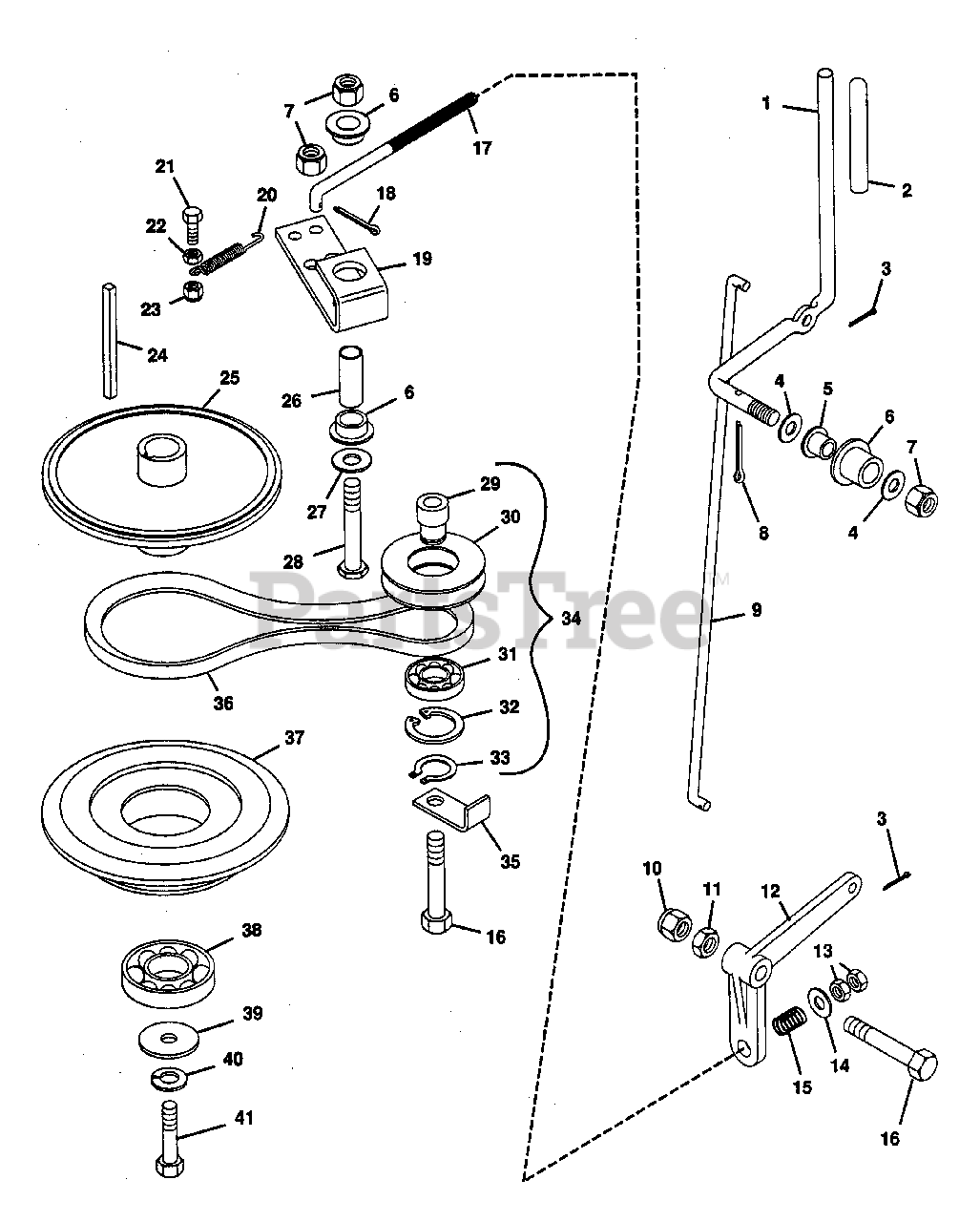

Pto Clutch Linkage Parts Diagram

  • Title

1

51147

Lever, PTO Actuating

$

$

Not available

2

43196

Grip, PTO Lever

$

$

Not available

3

Gravely 121222

Pin, Cotter .09x.75
(Superseded to 06706900)

$0.99

$

In Stock, Qty 5

0

4

Gravely 415543

Washer, Flat .531 xl .250x.100
(Superseded to 06441000)

$2.99

$

In Stock, Qty 16

0

5

34738

Bush., Flg..515x1.00x.745 Ny.

$

$

Not available

6

10174

Bush., Flg..764x1.47x.560 Ny.

$

$

Not available

7

Gravely 435507

Nut, Lock 1/2-13
(Superseded to 06500830)

$2.49

$

In Stock, Qty 20+

0

8

Gravely 187988

Pin, Cotter .187x1.25
(Superseded to 06712700)

$1.99

$

In Stock, Qty 5

0

9

49345

Rod, PTO Control

$

$

Not available

10

Gravely 414074

Nut, Lock 1/2-13
(Superseded to 06500827)

$3.99

$

In Stock, only 4 left!

0

11

Gravely 120238

Nut, Jam 1/2-13 Hex
(Superseded to 06500911)

$1.49

$

In Stock, Qty 18

0

12

51139

Lever, PTO Clutch

$

$

Not available

13

Gravely 120377

Nut, Hex 3/8-16
(Superseded to 06500917)

$0.99

$

In Stock, only 2 left!

0

14

Gravely 120394

Washer, Flat .406x.812x.065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 11779

Spring, Comp. 1x.78x338

$

$

Currently unavailable

16

Gravely 180185

Bolt, Hex 1/2-13x2.50
(Superseded to 05901712)

$3.99

$

In Stock, only 3 left!

0

17

41334

Rod, PTO Clutch Actuating

$

$

Not available

18

Gravely 177923

Pin, Cotter .125x.75
(Superseded to 06707300)

$0.99

$

In Stock, Qty 9

0

19

51887

Arm, Idler Pivot

$

$

Not available

20

34385

Spring, PTO Return

$

$

Not available

21

Gravely 180079

Bolt, Hex 5/16-18x1.00
(Superseded to 05901701)

$1.49

$

In Stock, Qty 11

0

22

Gravely 120376

Nut, Hex 5/16-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 16

0

23

Gravely 419455

Nut, Lock 5/16-18
(Superseded to 06500820)

$0.99

$

Usually ships in 4-12 days

0

24

51229

Key, Square .250x3.60

$

$

Not available

25

51136

Hub, PTO Clutch

Note: (16HP)

$

$

Not available

25

53031

Hub, PTO Clutch

Note: (20HP)

$

$

Not available

26

41992

Bush., St..560x.745x2.04 Stl.

$

$

Not available

27

Gravely 120396

Washer, Flat .531 xl .062x.095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

28

41333

Bolt, Hex 1/2-13x2.75 Special

$

$

Not available

29

39327

Bush., Flg..515x.787x1.41 St I.

$

$

Not available

30

38896

Sheave, Idler

$

$

Not available

31

38898

Bearing, Ball

$

$

Not available

32

18960

Ring, Retaining

$

$

Not available

33

39331

Ring, Retaining

$

$

Not available

34

39336

Assembly, Idler Sheave

$

$

Not available

35

39330

Guide, Belt

$

$

Not available

36

43213

V-Belt, PTO Clutch

$

$

Not available

37

41353

Sheave, Mower Clutch

$

$

Not available

38

35330

Bearing, Ball 1.574x3.149x.708

$

$

Not available

39

44379

Washer, Special

$

$

Not available

40

Gravely 120383

Washer, Lock 7/16 Reg.
(Superseded to 06300121)

$2.99

$

In Stock, only 2 left!

0

41

Gravely 181676

Bolt, Hex 7/16-20x2.50
(Superseded to 05964600)

$2.49

$

In Stock, only 1 left!

0
