5269 A99 - Electrolux/AYP Walk-Behind Mower (1999) ENGINE BRIGGS AND STRATTON Parts Diagram

Walk-Behind Mower

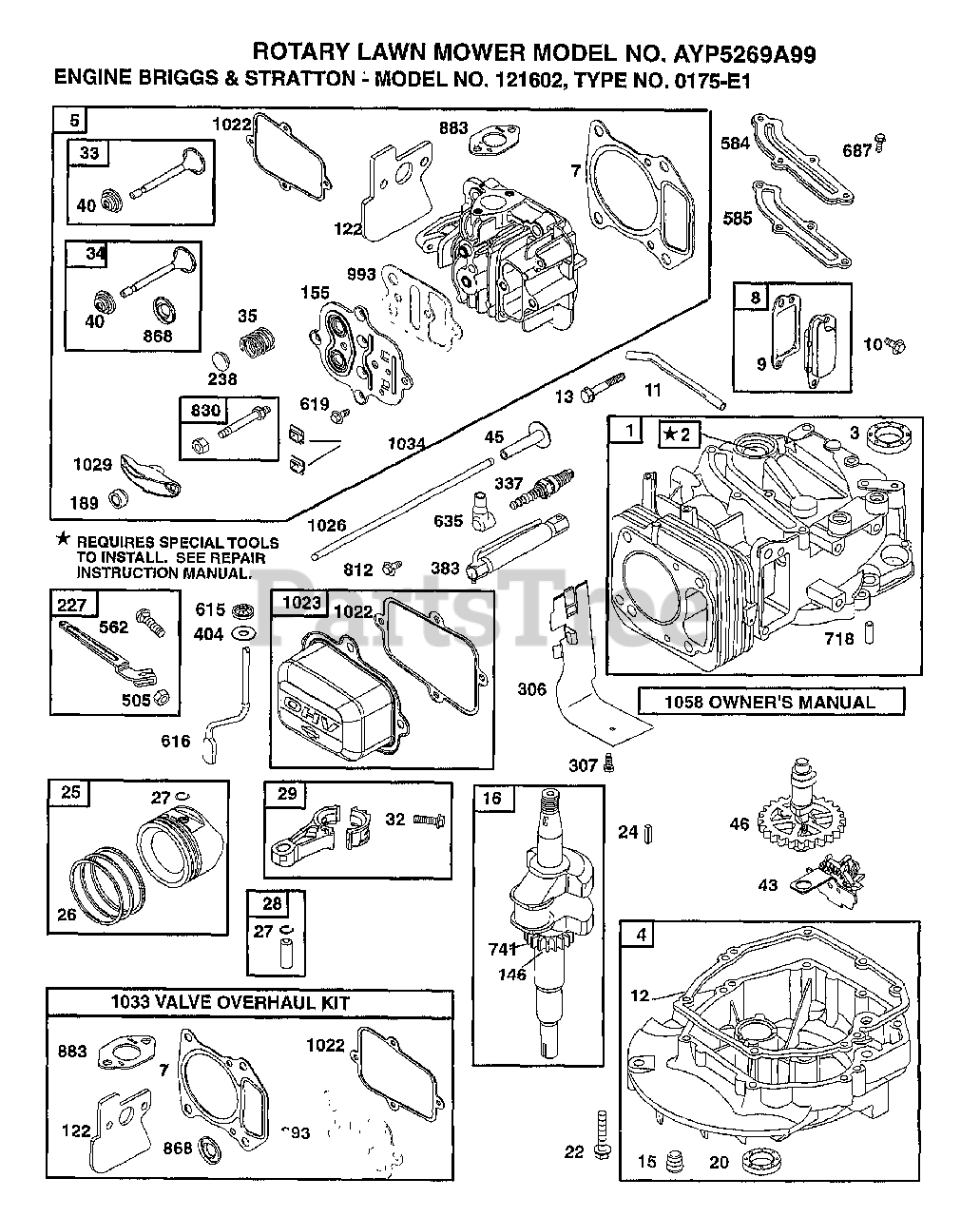

ENGINE BRIGGS AND STRATTON Parts Diagram

  • Title

1

Briggs & Stratton 499678

CYLINDER ASSY
(Superseded to 790363)

$219.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 399269

BUSHING ASSY
(Superseded to 796961)

$21.99

$

In Stock, Qty 6

0

3

Briggs & Stratton 299819

SEAL, OIL
(Superseded to 299819S)

$5.49

$

In Stock, Qty 20+

0

4

Briggs & Stratton 499619

SUMP-ENGINE
(Superseded to 493279)

$120.99

$

In Stock, Qty 5

0

5

Briggs & Stratton 692800

HEAD
(Superseded to 799072)

$142.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 273240

GASKET
(Superseded to 697230)

$9.99

$

In Stock, Qty 10

0

8

Briggs & Stratton 495786

BREATHER, VALVE CHAMBER
(Superseded to 590395)

$14.99

$

In Stock, Qty 11

0

9

Briggs & Stratton 272481

GASKET, VALVE COVER
(Superseded to 699833)

$5.49

$

In Stock, Qty 11

0

10

Briggs & Stratton 94955

SCREW
(Superseded to 691125)

$3.99

$

In Stock, Qty 7

0

11

Briggs & Stratton 232123

TUBE
(Superseded to 691781)

$10.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 272198

GASKET, CRANKCASE
(Superseded to 692232)

$5.99

$

In Stock, Qty 20+

0

13

Briggs & Stratton 95049

SCREW
(Superseded to 592244)

$3.49

$

In Stock, Qty 13

0

15

Briggs & Stratton 94880

PLUG, OIL DRAIN, FLUSH
(Superseded to 691680)

$5.99

$

In Stock, only 4 left!

0

16

Briggs & Stratton 498615

CRANKSHAFT
(Superseded to 691457)

$204.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 399781

SEAL, OIL
(Superseded to 399781S)

$7.99

$

In Stock, Qty 19

0

22

Briggs & Stratton 94220

SCREW, HEX HEAD
(Superseded to 691092)

$3.99

$

In Stock, Qty 5

0

22

Briggs & Stratton 94612

SCREW, HEX HEAD
(Superseded to 691092)

$3.99

$

In Stock, Qty 5

0

23

Briggs & Stratton 498875

FLYWHEEL
(Superseded to 697610)

$199.99

$

In Stock, only 1 left!

0

24

Briggs & Stratton 222698

KEY, FLYWHEEL
(Superseded to 222698S)

$2.99

$

In Stock, Qty 20+

0

25

Briggs & Stratton 499627

PISTON ASS'Y
(Superseded to 799063)

$91.99

$

In Stock, Qty 6

0

25

Briggs & Stratton 692788

PISTON ASS'Y

$55.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 692789

PISTON ASS'Y
(Superseded to 799064)

$120.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 692790

PISTON ASS'Y

$65.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 499631

RING SET

$53.99

$

In Stock, Qty 6

0

26

Briggs & Stratton 692785

RING SET

$

$

Not available

26

Briggs & Stratton 692786

RING SET

$55.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 692787

RING SET

$26.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 263190

LOCK, PISTON PIN
(Superseded to 691866)

$4.49

$

In Stock, Qty 8

0

28

Briggs & Stratton 499423

PIN, PISTON, STANDARD SIZE

$9.49

$

In Stock, only 1 left!

0

29

Briggs & Stratton 499424

ROD, CONNECTING
(Superseded to 590406)

$87.99

$

In Stock, only 1 left!

0

32

Briggs & Stratton 94699

SCREW
(Superseded to 691664)

$4.49

$

In Stock, only 2 left!

0

33

Briggs & Stratton 499642

VALVE

$35.99

$

In Stock, Qty 6

0

34

Briggs & Stratton 499641

VALVE
(Superseded to 795443)

$27.99

$

In Stock, Qty 5

0

35

Briggs & Stratton 691304

SPRING

$5.99

$

In Stock, Qty 8

0

37

Briggs & Stratton 224511

GUARD-FLYWHEEL
(Superseded to 793756)

$10.99

$

In Stock, only 4 left!

0

40

Briggs & Stratton 93312

RETAINER, VALVE SPRING
(Superseded to 692194)

$5.99

$

In Stock, Qty 18

0

43

Briggs & Stratton 493737

SLINGER, OIL
(Superseded to 691997)

$25.99

$

In Stock, only 1 left!

0

45

Briggs & Stratton 262679

TAPPET, VALVE
(Superseded to 690977)

$7.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 499749

GEAR
(Superseded to 694035)

$

$

Not available

48

Briggs & Stratton 692745

SHORT BLOCK

$205.99

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 95048

SCREW
(Superseded to 691148)

$3.99

$

In Stock, only 2 left!

0

55

Briggs & Stratton 497440

HOUSING, REWIND STARTER
(Superseded to 691421)

$64.99

$

In Stock, only 1 left!

0

56

Briggs & Stratton 498144

PULLEY, REWIND STARTER

$19.99

$

In Stock, Qty 5

0

58

Briggs & Stratton 280399

ROPE, REWIND STARTER (CUT TO 88-5/8)
(Superseded to 280399S)

$5.99

$

In Stock, Qty 19

0

60

Briggs & Stratton 281434

GRIP, STARTER ROPE
(Superseded to 281434S)

$3.99

$

In Stock, Qty 12

0

65

Briggs & Stratton 94904

SCREW, SEMS
(Superseded to 690837)

$3.49

$

In Stock, Qty 18

0

65A

Briggs & Stratton 94686

SCREW, HOUSING MOUNTING
(Superseded to 690837)

$3.49

$

In Stock, Qty 18

0

73

Briggs & Stratton 225133

SCREEN
(Superseded to 691222)

$41.99

$

Usually ships in 2-12 days

0

78

Briggs & Stratton 94744

SCREW, SEMS
(Superseded to 691108)

$3.49

$

In Stock, Qty 20+

0

95

Briggs & Stratton 94098

SCREW, THROTTLE
(Superseded to 691636)

$3.99

$

In Stock, only 2 left!

0

104

Briggs & Stratton 231371

PIN, FLOAT HINGE
(Superseded to 797622)

$3.99

$

Usually ships in 2-12 days

0

117

Briggs & Stratton 494870

P/N CONFLICT - CHECK WITH SUPPLIER

$14.99

$

Usually ships in 2-12 days

0

117

Briggs & Stratton 497315

JET, MAIN (HIGH ALTITUDE)

$13.99

$

Usually ships in 2-12 days

0

121

Briggs & Stratton 692703

CARBURETOR
(Superseded to 792383)

$28.99

$

In Stock, Qty 10

0

122

Briggs & Stratton 692799

SPACER

$14.99

$

In Stock, only 3 left!

0

125

Briggs & Stratton 692648

CARBURETOR
(Superseded to 790120)

$59.99

$

In Stock, Qty 7

0

127

Electrolux/AYP PARTSIMAGE

REFER TO PARTS IMAGE

$

$

Not available

130

Briggs & Stratton 224908

VALVE, THROTTLE
(Superseded to 691203)

$9.49

$

In Stock, only 1 left!

0

131

Briggs & Stratton 499682

SHAFT-THROTTLE

$16.99

$

In Stock, only 1 left!

0

133

Briggs & Stratton 398187

FLOAT, CARBURETOR

$9.99

$

In Stock, Qty 10

0

134

Briggs & Stratton 398188

VALVE, INLET

$6.49

$

In Stock, Qty 20+

0

137

Electrolux/AYP PARTSIMAGE

REFER TO PARTS IMAGE

$

$

Not available

146

Briggs & Stratton 94388

TIMING GEAR KEY
(Superseded to 690979)

$3.49

$

In Stock, only 3 left!

0

153

Briggs & Stratton 95050

SCREW
(Superseded to 691138)

$3.99

$

In Stock, Qty 14

0

155

Briggs & Stratton 691231

PLATE
(Superseded to 696268)

$

$

Not available

163

Briggs & Stratton 273364

GASKET
(Superseded to 691894)

$4.99

$

In Stock, Qty 20+

0

177

Briggs & Stratton 280393

SEAL, FILLER TUBE
(Superseded to 691031)

$5.49

$

In Stock, Qty 12

0

188

Briggs & Stratton 693168

SCREW

$3.99

$

Usually ships in 2-12 days

0

189

Briggs & Stratton 691295

BALL-ROCKER ARM
(Superseded to 694543)

$

$

Not available

190

Briggs & Stratton 94511

SCREW, HEX HEAD
(Superseded to 690940)

$3.99

$

In Stock, only 4 left!

0

202

Briggs & Stratton 263148

LINK
(Superseded to 691303)

$8.49

$

Usually ships in 2-12 days

0

209

Briggs & Stratton 263042

SPRING
(Superseded to 691851)

$7.99

$

In Stock, only 2 left!

0

227

Briggs & Stratton 498772

LEVER
(Superseded to 691467)

$12.99

$

Usually ships in 2-12 days

0

238

Briggs & Stratton 691300

CAP-VALVE

$9.49

$

In Stock, Qty 11

0

259

Briggs & Stratton 691189

BRACKET

$4.99

$

Usually ships in 2-12 days

0

276

Electrolux/AYP PARTSIMAGE

REFER TO PARTS IMAGE

$

$

Not available

287

Briggs & Stratton 94511

SCREW, HEX HEAD
(Superseded to 690940)

$3.99

$

In Stock, only 4 left!

0

300

Briggs & Stratton 692275

MUFFLER

$

$

Not available

304

Briggs & Stratton 499677

HOUSING-BLOWER

$58.99

$

Usually ships in 2-12 days

0

305

Briggs & Stratton 94744

SCREW, SEMS
(Superseded to 691108)

$3.49

$

In Stock, Qty 20+

0

306

Briggs & Stratton 225366

SHIELD
(Superseded to 691232)

$16.99

$

Usually ships in 2-12 days

0

307

Briggs & Stratton 94515

SCREW HEX HD
(Superseded to 690345)

$4.99

$

Usually ships in 2-12 days

0

332

Briggs & Stratton 94877

NUT, FLYWHEEL
(Superseded to 690662)

$5.99

$

In Stock, Qty 8

0

333

Briggs & Stratton 802574

ARMATURE, MAGNETO
(Superseded to 590454)

$57.99

$

In Stock, Qty 20+

0

334

Briggs & Stratton 94731

SCREW, SEMS
(Superseded to 691061)

$3.49

$

In Stock, Qty 20+

0

337

Briggs & Stratton 499608

PLUG-SPARK
(Superseded to 692051)

$3.49

$

In Stock, Qty 19

0

356

Briggs & Stratton 497833

WIRE GROUND
(Superseded to 692390)

$10.99

$

Usually ships in 2-12 days

0

358

Briggs & Stratton 692702

GASKET SET
(Superseded to 795442)

$90.99

$

Usually ships in 2-12 days

0

363

Briggs & Stratton 19069

PULLEY, FLYWHEEL

$23.99

$

In Stock, only 1 left!

0

383

Briggs & Stratton 19374

WRENCH
(Superseded to 19576S)

$5.99

$

In Stock, only 4 left!

0

404

Briggs & Stratton 67072

WASHER, THRUST
(Superseded to 690272)

$3.99

$

Usually ships in 2-12 days

0

445

Briggs & Stratton 498596

FILTER
(Superseded to 697029)

$13.99

$

In Stock, Qty 19

0

455

Briggs & Stratton 225121

CUP, STARTER
(Superseded to 695161)

$37.99

$

Usually ships in 2-12 days

0

456

Briggs & Stratton 281503

RETAINER, STARTER
(Superseded to 692299)

$4.99

$

In Stock, Qty 20+

0

459

Briggs & Stratton 281505

PAWL, RATCHET
(Superseded to 281505S)

$3.49

$

In Stock, Qty 20+

0

505

Briggs & Stratton 231082

NUT, HEX
(Superseded to 691251)

$3.49

$

In Stock, Qty 11

0

523

Briggs & Stratton 499621

DIPSTICK

$17.99

$

In Stock, Qty 6

0

525

Briggs & Stratton 495265

TUBE, OIL FILLER

$

$

Not available

534

Briggs & Stratton 95059

SCREW
(Superseded to 690244)

$3.99

$

In Stock, Qty 11

0

562

Briggs & Stratton 94852

BOLT, GOVERNOR LEVER
(Superseded to 691119)

$4.49

$

In Stock, Qty 19

0

584

Briggs & Stratton 224328

BAFFLE, CYLINDER
(Superseded to 697734)

$9.49

$

Usually ships in 2-12 days

0

585

Briggs & Stratton 272238

GASKET, BAFFLE PLATE
(Superseded to 691879)

$6.99

$

In Stock, only 1 left!

0

595

Briggs & Stratton 94908

NUT, HEX
(Superseded to 690800)

$3.99

$

In Stock, only 3 left!

0

595A

Briggs & Stratton 92987

NUT, HEX
(Superseded to 690800)

$3.99

$

In Stock, only 3 left!

0

597

Briggs & Stratton 94943

P/N CONFLICT - CHECK WITH SUPPLIER
(Superseded to 691696)

$11.99

$

In Stock, only 4 left!

0

608

Briggs & Stratton 497680

STARTER, REWIND

$49.99

$

In Stock, Qty 8

0

613

Briggs & Stratton 5062

SCREW

$

$

Not available

613A

Electrolux/AYP 4744

SCREW

$

$

Not available

615

Briggs & Stratton 94474

FASTENER
(Superseded to 690340)

$4.49

$

In Stock, only 1 left!

0

616

Briggs & Stratton 263175

CRANK, GOVERNOR
(Superseded to 698801)

$10.99

$

In Stock, only 1 left!

0

619

Briggs & Stratton 691108

SCREW

$3.49

$

In Stock, Qty 20+

0

620

Briggs & Stratton 692617

BRACKET

$40.99

$

Usually ships in 2-12 days

0

621

Briggs & Stratton 692310

SWITCH-STOP

$5.99

$

In Stock, Qty 20+

0

634

Electrolux/AYP PARTSIMAGE

REFER TO PARTS IMAGE

$

$

Not available

635

Briggs & Stratton 66538

ELBOW, SPARK PLUG
(Superseded to 66538S)

$3.99

$

In Stock, Qty 15

0

642

Briggs & Stratton 691342

COVER-AIR CLEANER

$21.99

$

In Stock, only 1 left!

0

687

Briggs & Stratton 94515

SCREW HEX HD
(Superseded to 690345)

$4.99

$

Usually ships in 2-12 days

0

718

Briggs & Stratton 230192

PIN, DOWEL
(Superseded to 690959)

$6.99

$

Usually ships in 2-12 days

0

741

Briggs & Stratton 262598

GEAR, TIMING
(Superseded to 691830)

$17.99

$

Usually ships in 2-12 days

0

745

Briggs & Stratton 691648

SCREW

$4.99

$

Usually ships in 2-12 days

0

812

Briggs & Stratton 94744

SCREW, SEMS
(Superseded to 691108)

$3.49

$

In Stock, Qty 20+

0

830

Electrolux/AYP 49975

STUD-ROCKER ARM

$

$

Not available

832

Briggs & Stratton 498736

GUARD
(Superseded to 691466)

$54.99

$

Usually ships in 2-12 days

0

836

Briggs & Stratton 94874

SCREW, HEX
(Superseded to 690664)

$5.49

$

In Stock, only 4 left!

0

836A

Briggs & Stratton 94786

SCREW
(Superseded to 692198)

$5.99

$

In Stock, only 3 left!

0

843

Briggs & Stratton 272616

SLEEVE, LEVER
(Superseded to 691884)

$4.99

$

Usually ships in 2-12 days

0

847

Briggs & Stratton 498715

DIPSTICK/TUBE ASSY
(Superseded to 692047)

$

$

Not available

851

Briggs & Stratton 493880

TERMINAL, IGNITION CABLE
(Superseded to 493880S)

$3.49

$

In Stock, Qty 20+

0

868

Briggs & Stratton 498592

SEAL
(Superseded to 795440)

$13.99

$

In Stock, only 1 left!

0

883

Briggs & Stratton 273348

GASKET
(Superseded to 691893)

$4.49

$

In Stock, Qty 11

0

921

Briggs & Stratton 498734

COVER
(Superseded to 699633)

$70.99

$

Usually ships in 2-12 days

0

922

Briggs & Stratton 691831

SPRING

$10.99

$

In Stock, only 3 left!

0

923

Briggs & Stratton 691994

BRAKE
(Superseded to 796387)

$

$

Not available

957

Briggs & Stratton 498697

CAP
(Superseded to 796577)

$16.99

$

In Stock, Qty 13

0

966

Briggs & Stratton 499684

BASE
(Superseded to 690243)

$

$

Not available

967

Briggs & Stratton 273356

FILTER
(Superseded to 273356S)

$5.49

$

In Stock, Qty 20+

0

971

Briggs & Stratton 95103

SCREW
(Superseded to 690255)

$5.99

$

In Stock, Qty 14

0

972

Briggs & Stratton 499618

TANK
(Superseded to 699374)

$64.99

$

In Stock, Qty 10

0

975

Briggs & Stratton 493640

BOWL, FLOAT
(Superseded to 796611)

$6.49

$

In Stock, Qty 18

0

976

Briggs & Stratton 496115

PRIMER, CARBURETOR
(Superseded to 694395)

$4.49

$

In Stock, Qty 20+

0

977

Briggs & Stratton 692704

GASKET SET
(Superseded to 792383)

$28.99

$

In Stock, Qty 10

0

993

Briggs & Stratton 691892

GASKET
(Superseded to 694088)

$8.49

$

In Stock, Qty 20+

0

1005

Briggs & Stratton 281657

FAN
(Superseded to 691346)

$26.99

$

Usually ships in 2-12 days

0

1022

Briggs & Stratton 273241

GASKET
(Superseded to 691890)

$7.99

$

In Stock, Qty 10

0

1023

Briggs & Stratton 499624

COVER

$37.99

$

Usually ships in 2-12 days

0

1026

Briggs & Stratton 498597

ROD
(Superseded to 795444)

$11.99

$

Usually ships in 2-12 days

0

1029

Briggs & Stratton 691230

ARM-ROCKER

$9.49

$

Usually ships in 2-12 days

0

1033

Briggs & Stratton 692705

KIT-VALVE OVERHAUL
(Superseded to 795441)

$70.99

$

Usually ships in 2-12 days

0

1034

Briggs & Stratton 691343

GUIDE-PUSH ROD

$9.99

$

Usually ships in 2-12 days

0

1036

Briggs & Stratton 499343

LABEL KIT-EMISSION

$4.49

$

Usually ships in 2-12 days

0

1058

Electrolux/AYP 273323

OWNER'S MANUAL

$

$

Not available

1059

Briggs & Stratton 398540

SCREW, HEX HEAD
(Superseded to 692311)

$7.49

$

In Stock, Qty 10

0

1081

Briggs & Stratton 280966

SEAL, O-RING
(Superseded to 692296)

$4.99

$

In Stock, Qty 11

0

Electrolux/AYP 121602-0015-E1

REPLACEMENT ENGINE

$

$

Not available
