5273 - Lawn-Boy Walk-Behind Mower (SN: 600000001 - 699999999) (1976) MODEL D-601 CARBURETOR: MODEL USED ON: 5273 Parts Diagram

Walk-Behind Mower

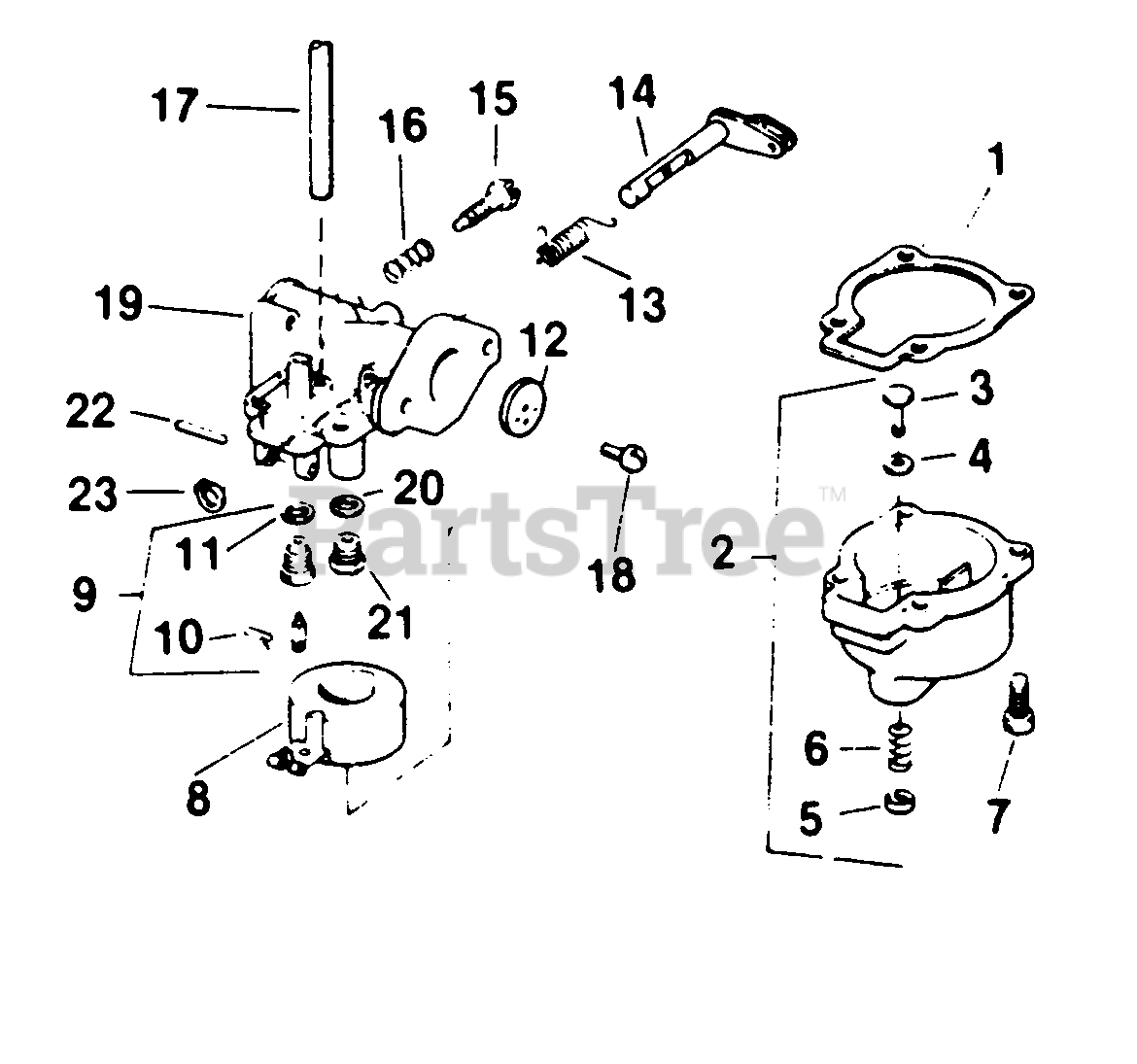

MODEL D-601 CARBURETOR: MODEL USED ON: 5273 Parts Diagram

  • Title

Lawn-Boy 679710

Carburetor

Note: Note #1. Replacement parts for modualr Carburetor and Reed Plate are listed on page 40.

$

$

Not available

1

Lawn-Boy 602850

Gasket
(Superseded to 98-1362)

Note: Note #1. Replacement parts for modualr Carburetor and Reed Plate are listed on page 40. Gasket Set #678071

$3.49

$

In Stock, Qty 20+

0

2

Lawn-Boy 679623

Float Chamber & Dump Valve Assy.
(Superseded to 92-6374)

Note: Note #1. Replacement parts for modualr Carburetor and Reed Plate are listed on page 40.

$

$

Not available

Lawn-Boy 681077

Dump Valve Assy.

Note: Note #1. Replacement parts for modualr Carburetor and Reed Plate are listed on page 40.

$

$

Not available

3

Lawn-Boy 607570

Valve Stem

Note: Note #1. Replacement parts for modualr Carburetor and Reed Plate are listed on page 40.

$

$

Not available

4

Lawn-Boy 607571

Valve Seat

Note: Note #1. Replacement parts for modualr Carburetor and Reed Plate are listed on page 40.

$

$

Not available

5

Lawn-Boy 607572

Valve Keeper

Note: Note #1. Replacement parts for modualr Carburetor and Reed Plate are listed on page 40.

$4.99

$

Usually ships in 3-6 days

0

6

Lawn-Boy 607573

Valve Spring

Note: Note #1. Replacement parts for modualr Carburetor and Reed Plate are listed on page 40.

$

$

Not available

7

Lawn-Boy 306552

Screw

Note: Note #1. Replacement parts for modualr Carburetor and Reed Plate are listed on page 40.

$

$

Not available

8

Lawn-Boy 678113

Float & Arm Assy.

Note: Note #1. Replacement parts for modualr Carburetor and Reed Plate are listed on page 40.

$

$

Not available

9

Lawn-Boy 678882

Float Valve & Seat Assy.
(Superseded to 92-9697)

Note: Note #1. Replacement parts for modualr Carburetor and Reed Plate are listed on page 40.

$25.99

$

In Stock, Qty 17

0

10

Lawn-Boy 603145

Clip
(Superseded to 92-9697)

Note: Note #1. Replacement parts for modualr Carburetor and Reed Plate are listed on page 40.

$25.99

$

In Stock, Qty 17

0

11

Lawn-Boy 301996

Washer

Note: Note #1. Replacement parts for modualr Carburetor and Reed Plate are listed on page 40.

$3.99

$

Usually ships in 3-6 days

0

12

Lawn-Boy 604295

Disc.

Note: Note #1. Replacement parts for modualr Carburetor and Reed Plate are listed on page 40.

$

$

Not available

13

Lawn-Boy 604296

Spring

Note: Note #1. Replacement parts for modualr Carburetor and Reed Plate are listed on page 40.

$

$

Not available

14

Lawn-Boy 678119

Shaft

Note: Note #1. Replacement parts for modualr Carburetor and Reed Plate are listed on page 40.

$

$

Not available

15

Lawn-Boy 607574

Screw

Note: Note #1. Replacement parts for modualr Carburetor and Reed Plate are listed on page 40.

$24.99

$

In Stock, only 1 left!

0

16

Lawn-Boy 607126

Spring

Note: Note #1. Replacement parts for modualr Carburetor and Reed Plate are listed on page 40.

$

$

Not available

17

Lawn-Boy 607581

Fuel Hose
(Superseded to 112-7048)

Note: Note #1. Replacement parts for modualr Carburetor and Reed Plate are listed on page 40.

$7.49

$

In Stock, only 3 left!

0

18

Lawn-Boy 605522

Screw

Note: Note #1. Replacement parts for modualr Carburetor and Reed Plate are listed on page 40.

$1.49

$

Usually ships in 3-6 days

0

19

Lawn-Boy 679888

Carburetor Body Assy.

Note: Note #1. Replacement parts for modualr Carburetor and Reed Plate are listed on page 40.

$

$

Not available

20

Lawn-Boy 301996

Washer

Note: Note #1. Replacement parts for modualr Carburetor and Reed Plate are listed on page 40.

$3.99

$

Usually ships in 3-6 days

0

21

Lawn-Boy 607568

Plug

Note: Note #1. Replacement parts for modualr Carburetor and Reed Plate are listed on page 40.

$

$

Not available

22

Lawn-Boy 300096

Float Pin
(Superseded to 92-6389)

Note: Note #1. Replacement parts for modualr Carburetor and Reed Plate are listed on page 40.

$5.99

$

In Stock, only 2 left!

0

23

Lawn-Boy 604286

Grip Ring

Note: Note #1. Replacement parts for modualr Carburetor and Reed Plate are listed on page 40.

$3.99

$

In Stock, only 1 left!

0
