528 (190-528-100) - Cub Cadet 45" Snow Thrower Manual Lift Kit 45" Snowthrower Manual Lift Kit Parts Diagram

45" Snow Thrower Manual Lift Kit

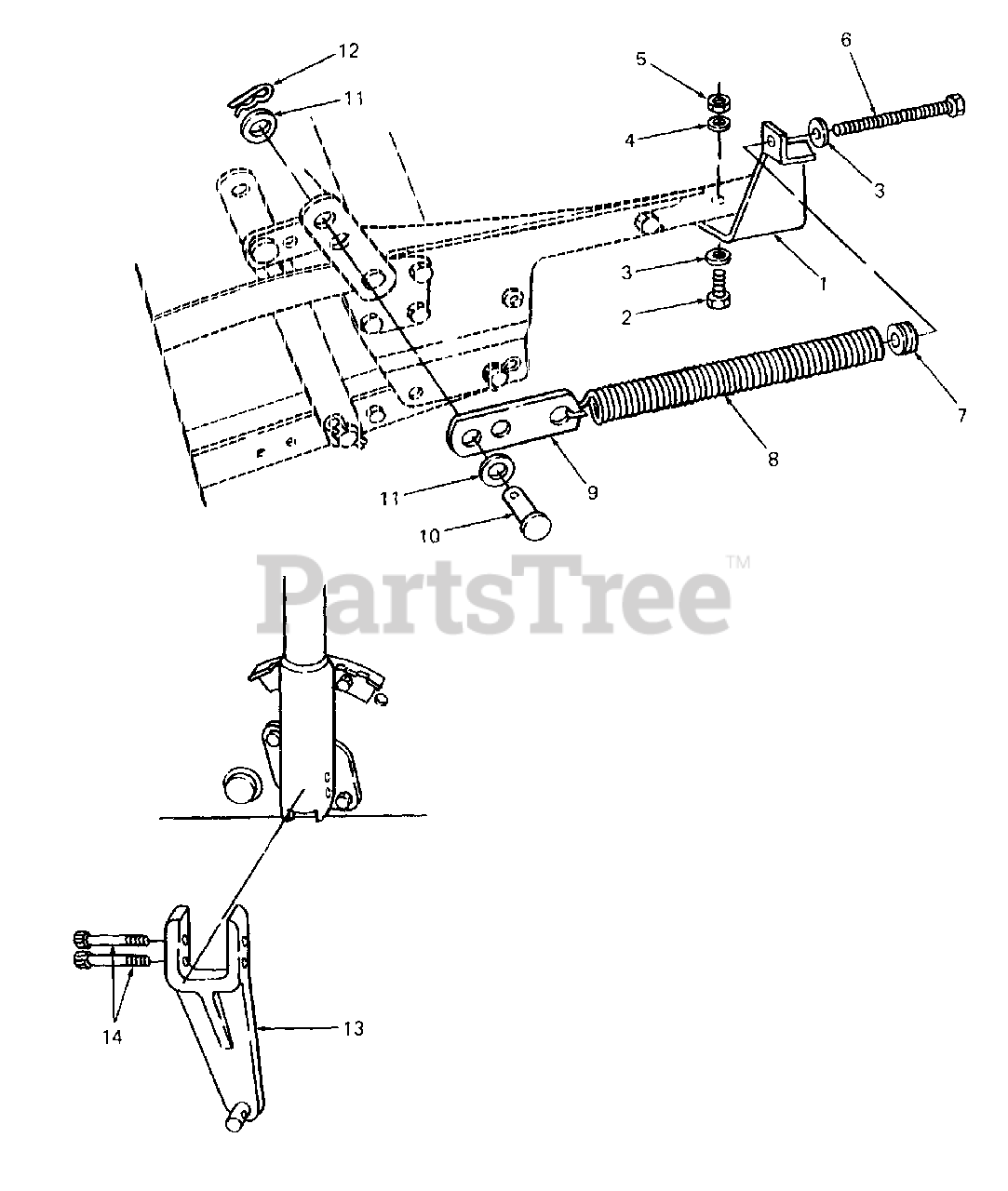

45" Snowthrower Manual Lift Kit Parts Diagram

  • Title

1

Cub Cadet 784-5400

Bracket, Helper Spring

$

$

Currently unavailable

2

Cub Cadet 710-0253

Screw, Hex Cap, 3/8-16 X 1.0 Lg
(Superseded to 710-0514)

$3.99

$

In Stock, Qty 20+

0

3

Cub Cadet 736-0105

Washer, Bell

$3.99

$

In Stock, Qty 20+

0

4

Cub Cadet 736-0235

Washer, Flat, .406 X 1.25 X .172 Thk
(Superseded to 736-0247)

$8.99

$

In Stock, Qty 20+

0

5

Cub Cadet 712-0798

Nut, Hex, 3/8-16

$3.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 710-0677

Screw, Hex Special

$

$

Not available

7

Cub Cadet 711-0635

Insert, Spring

$41.99

$

In Stock, only 1 left!

0

8

Cub Cadet 732-0557

Spring, Extension

$

$

Not available

9

Cub Cadet 784-5248

Link, Lift

Variations

Cub Cadet 784-5248-0637

LIFT LINK - POWDER BLACK (0637)

$

$

Not available

$

$

10

Cub Cadet 711-0309

Pin, Clevis, .62 Dia X 1.20 Lg
(Superseded to 711-0309A)

$11.99

$

In Stock, Qty 10

0

11

Cub Cadet 736-0290

Washer, Flat, .635 X 1.00 X .067 Thk

$6.49

$

In Stock, Qty 20+

0

12

Cub Cadet 714-0147

Pin, Internal Cotter

$4.49

$

In Stock, Qty 12

0

13

Cub Cadet 603-0026

Bracket, Manual Lift

$

$

Not available

14

Cub Cadet 710-3251

Screw, Socket Head

$5.99

$

In Stock, Qty 13

0
