52921 - Gravely 60" Fab Deck for Pro-Master 300 Mower

60" Fab Deck for Pro-Master 300 Mower

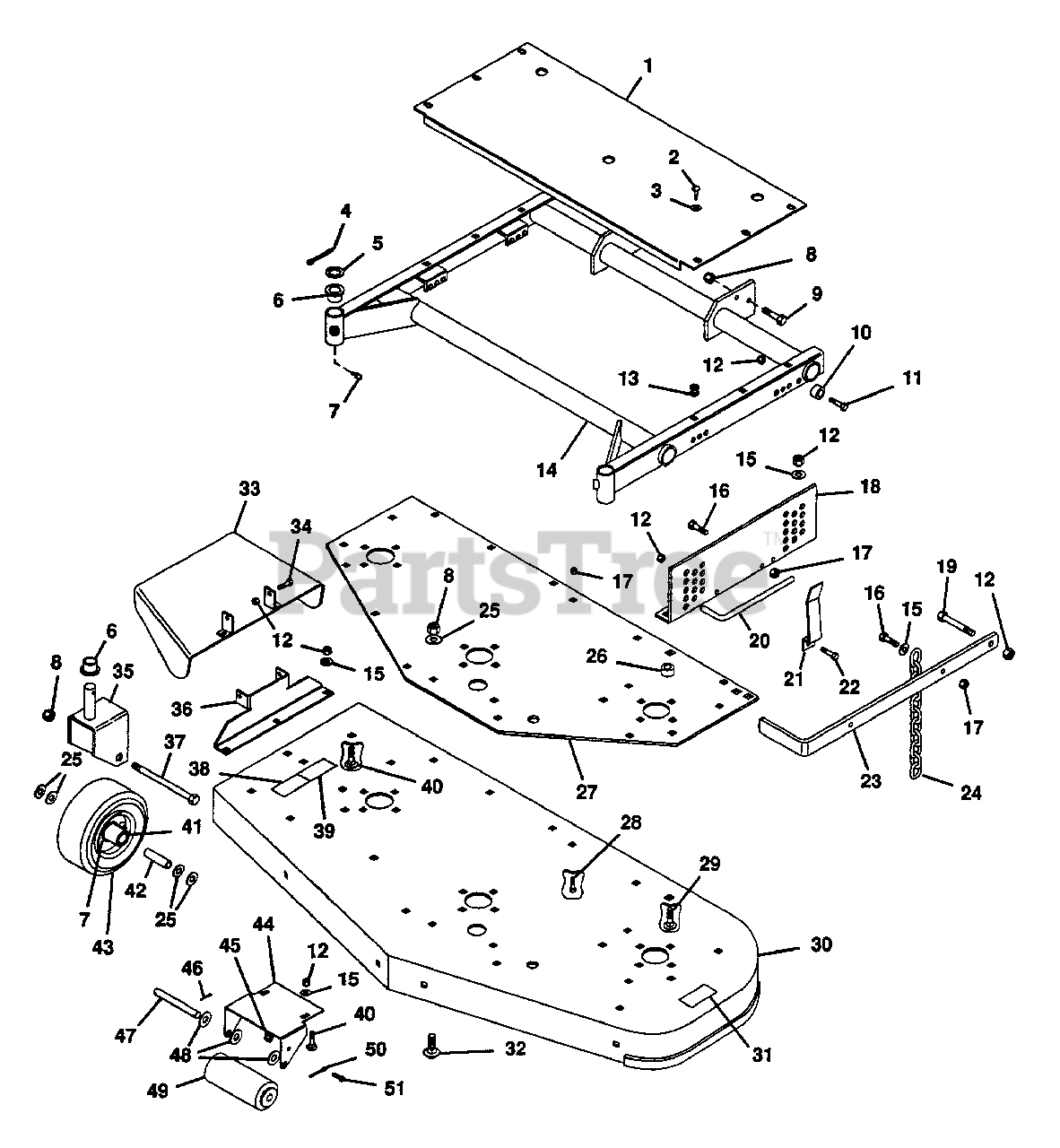

52921 - Gravely 60" Fab Deck for Pro-Master 300 Mower > Parts Diagrams (2) > MOWER FRAME

  • Title
047551

1

Guard, Belt 60" PM-H Series

Part# 047551 (Superseded to 08960500)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $144.17

045207

2

Screw, 1/4-20x.50 Self Tapping

Part# 045207 (Superseded to 07400034)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

120392

3

Washer, Flat .281x.625x.065

Part# 120392 (Superseded to 06437300)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $5.53

137253

4

Pin, Cotter .187x1.62

Part# 137253 (Superseded to 06705800)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $2.18

019340

5

Race, Bearing Thrust

Part# 019340 (Superseded to 06435300)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

018355

6

Bush., Flg. 1.03x1.75x.750 Ny.

Part# 018355 (Superseded to 05520100)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $5.53

411027

7

Fitting, Lube 1/4-28

Part# 411027 (Superseded to 07012600)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

435507

8

Nut, Lock 1/2-13

Part# 435507 (Superseded to 06540600)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

180177

9

Bolt, Hex 1/2-13x1.50

Part# 180177 (Superseded to 05962000)

OEM Warranty Repair Part for Gravely

Not available

050396

10

Bush., St. .391x.621x.676 Stl.

Part# 050396 (Superseded to 08814100)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $6.65

180126

11

Bolt, Hex 3/8-16x1.50

Part# 180126 (Superseded to 05957900)

OEM Warranty Repair Part for Gravely

Not available

456004

12

Nut, Lock 3/8-16

Part# 456004 (Superseded to 06535800)

OEM Warranty Repair Part for Gravely

Not available

011777

13

Grommet, Plastic

Part# 011777 (Superseded to 07538100)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

050979

14

Weldment, Mower Frame

Part# 050979 (Superseded to 59002500)

OEM Warranty Repair Part for Gravely

Not available

120394

15

Washer, Flat .406x.812x.065

Part# 120394 (Superseded to 06436200)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

180079

16

Bolt, Hex 5/16-18x1.00

Part# 180079 (Superseded to 05946900)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

419455

17

Nut, Lock 5/16-18

Part# 419455 (Superseded to 06530200)

OEM Warranty Repair Part for Gravely

Not available

038516

18

Bracket, Mower Support L.H.

Part# 038516 (Superseded to 08927953)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $27.89

038515

18

Bracket, Mower Support R.H.

Part# 038515 (Superseded to 08927853)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $27.89

034402

19

Bolt, Hex 3/8-16x2.00 Full Thread

Part# 034402 (Superseded to 05942200)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

038514

20

Pin, Mower Locking

Part# 038514 (Superseded to 08875900)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $12.24

041201

21

Spring, Pin

Part# 041201 (Superseded to 08876100)

OEM Warranty Repair Part for Gravely

Not available

180120

22

Bolt, Hex 3/8-16x.75

Part# 180120 (Superseded to 05959400)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

035684

23

Bar, Lift

Part# 035684 (Superseded to 08923700)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $49.14

038620

24

Chain, Height Adjustment

Part# 038620 (Superseded to 08867400)

OEM Warranty Repair Part for Gravely

Not available

415543

25

Washer, Flat .531x1.25 x.100

Part# 415543 (Superseded to 06441000)

OEM Warranty Repair Part for Gravely

Not available

014672

26

Bush., St. .406x.750x.188 Stl.

Part# 014672 (Superseded to 03488200)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

052841

27

Plate, 60" Support

Part# 052841 (Superseded to 09012900)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $362.84

180077

28

Bolt, Hex 5/16-18x.75

Part# 180077 (Superseded to 05947000)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

126402

29

Bolt, 3/8-16x1.25 Rd Hd Sq Nk

Part# 126402 (Superseded to 06224100)

OEM Warranty Repair Part for Gravely

Not available

052786

30

Weldment, 60" Mower

Part# 052786 (Superseded to 09011500)

OEM Warranty Repair Part for Gravely

Not available

033927

31

Decal, Danger Foot

Part# 033927 (Superseded to 05350100)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $20.07

126475

32

Bolt, 1/2-13x1.00 Rd Hd Sq Nk

Part# 126475 (Superseded to 06224600)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $5.53

052808

33

Weldment, Discharge Chute

Part# 052808 (Superseded to 09012600)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $234.72

180122

34

Bolt, Hex 3/8-16x1.00

Part# 180122 (Superseded to 05948700)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

050973

35

Weldment, Caster Fork

Part# 050973 (Superseded to 09066400)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $190.56

049649

36

Bracket, Discharge

Part# 049649 (Superseded to 08990400)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $53.61

445608

37

Bolt, Hex 1/2-13x5.50

Part# 445608 (Superseded to 05964100)

OEM Warranty Repair Part for Gravely

Not available

033928

38

Decal, Warning Eye

Part# 033928 (Superseded to 05350200)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $24.54

033926

39

Decal, Danger Hand

Part# 033926 (Superseded to 05350300)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $24.54

120915

40

Bolt, 3/8-16x1.00 Rd Hd Sq Nk

Part# 120915

OEM Warranty Repair Part for Gravely

Not available

037823

41

Bearing, Gauge Wheel

Part# 037823 (Superseded to 05408900)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $11.12

011950

42

Bush., St. .506x.748x3.34 Stl.

Part# 011950 (Superseded to 09023500)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $22.08

045205

43

Wheel, Gauge

Part# 045205 (Superseded to 07130100)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $62.05

052796

44

Bracket, Roller

Part# 052796 (Superseded to 09012300)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $60.82

419454

45

Nut, Lock 1/4-20

Part# 419454 (Superseded to 06531000)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $5.53

179128

46

Pin, Cotter .25x1.0

Part# 179128 (Superseded to 06713000)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

024795

47

Shaft, Center Roller

Part# 024795 (Superseded to 08598800)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $49.14

131016

48

Washer, Flat .656x1.312x.095

Part# 131016 (Superseded to 06442800)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

031390

49

Roller, Gauge

Part# 031390 (Superseded to 08803300)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $34.60

103422

50

Pin, Cotter .25x2.0

Part# 103422 (Superseded to 06713100)

OEM Warranty Repair Part for Gravely

Not available

180020

51

Bolt, Hex 1/4-20x.75

Part# 180020 (Superseded to 05946800)

OEM Warranty Repair Part for Gravely

Not available

043003

Decal, Gravely Logo

Part# 043003 (Superseded to 05210700)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $36.23

049720

Decal, Width of Cut

Part# 049720 (Superseded to 07852100)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $8.89

035127

Decal, Caution

Part# 035127 (Superseded to 07893700)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $14.48
