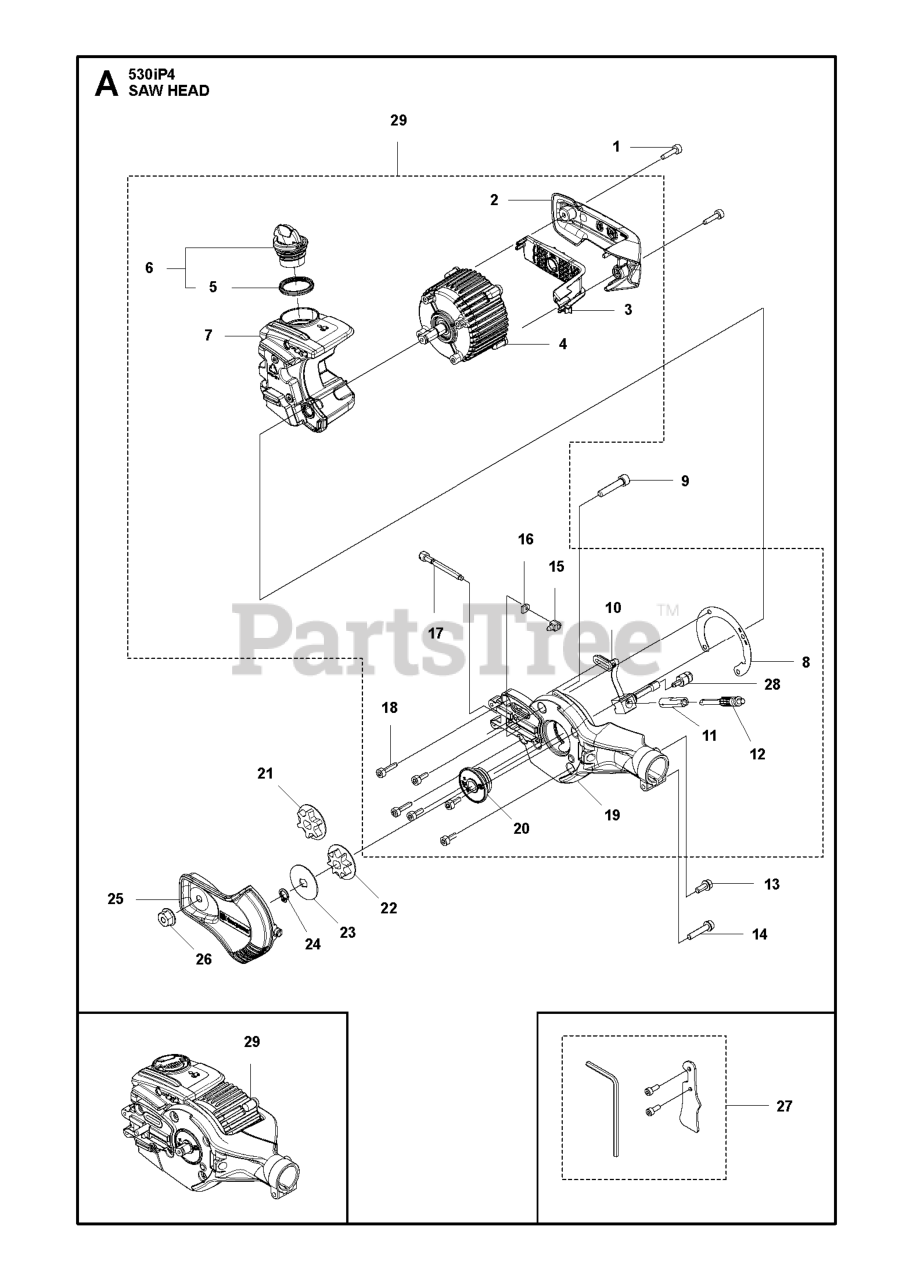

530 iP4 - Husqvarna Pole Saw, Electric SAW HEAD Parts Diagram

Pole Saw, Electric

SAW HEAD Parts Diagram

  • Title

22

Husqvarna 579534501

SPUR SPROCKET 1/4" 8T

Note: iP4 EU, iP5 EU

$22.99

$

In Stock, only 2 left!

0

23

Husqvarna 577271501

WASHER

$6.99

$

In Stock, Qty 15

0

18

Husqvarna 503202512

SCREW

$4.99

$

In Stock, only 4 left!

0

8

Husqvarna 587734201

INSULATOR HEAT

$4.99

$

In Stock, only 1 left!

0

2

Husqvarna 587347201

COVER MOTOR

$20.99

$

Usually ships in 3-10 days

0

5

Husqvarna 589241301

GASKET TANK CAP

$5.99

$

Usually ships in 3-10 days

0

6

Husqvarna 577878603

TANK CAP ASSY

$15.99

$

In Stock, only 2 left!

0

24

Husqvarna 735311200

RETAINING RING SGA 10

$3.49

$

In Stock, Qty 14

0

3

Husqvarna 587347101

BRACKET CABLE

$6.99

$

In Stock, only 2 left!

0

11

Husqvarna 537154801

PUMP CYLINDER

$13.99

$

In Stock, only 3 left!

0

26

Husqvarna 503220007

HEXAGON NUT FLANGED

$14.99

$

In Stock, only 4 left!

0

16

Husqvarna 501452702

NUT

$4.49

$

In Stock, Qty 20+

0

19

Husqvarna 579776301

CHASSIS ASSY

$62.99

$

In Stock, Qty 6

0

1

Husqvarna 579211901

SCREW
(Superseded to 580292901)

$3.49

$

In Stock, only 3 left!

0

7

Husqvarna 587346801

OIL TANK ASSY

$46.99

$

In Stock, only 2 left!

0

10

Husqvarna 587346502

Hoses

$21.99

$

Usually ships in 3-10 days

0

15

Husqvarna 580653201

PAWL

$6.99

$

In Stock, only 2 left!

0

27

Husqvarna 588698002

ACCESSORY BAG HOOK
(Superseded to 588698003)

$22.99

$

Usually ships in 3-10 days

0

20

Husqvarna 587347302

PUMP PINION ASSY

$13.99

$

Usually ships in 3-10 days

0

12

Husqvarna 540057901

PISTON PUMP

$20.99

$

In Stock, Qty 10

0

4

Husqvarna 587690801

MOTOR ASSY BLDC

$182.99

$

Usually ships in 3-10 days

0

28

Husqvarna 504710003

OIL PLUMMET

$13.99

$

In Stock, only 1 left!

0

21

Husqvarna 577607601

SPUR SPROCKET
(Superseded to 590087701)

Note: iPX EU, iP4 US, iPT5 CA/US

$17.99

$

In Stock, only 2 left!

0

29

Husqvarna 529537101

CUTTING SYSTEM SPARE PART KIT

$398.99

$

Usually ships in 3-10 days

0

14

Husqvarna 503200778

SCREW

$3.49

$

Usually ships in 3-10 days

0

13

Husqvarna 503201412

SCREW

$3.99

$

In Stock, Qty 8

0

25

Husqvarna 587901903

COVER CHAIN ASSY HUSQVARNA

$26.99

$

Usually ships in 3-10 days

0

9

Husqvarna 576831001

SCREW IHSCM

$5.49

$

In Stock, only 2 left!

0

17

Husqvarna 580462501

SCREW CHAIN TENSIONER L 49

$4.99

$

Usually ships in 3-10 days

0
