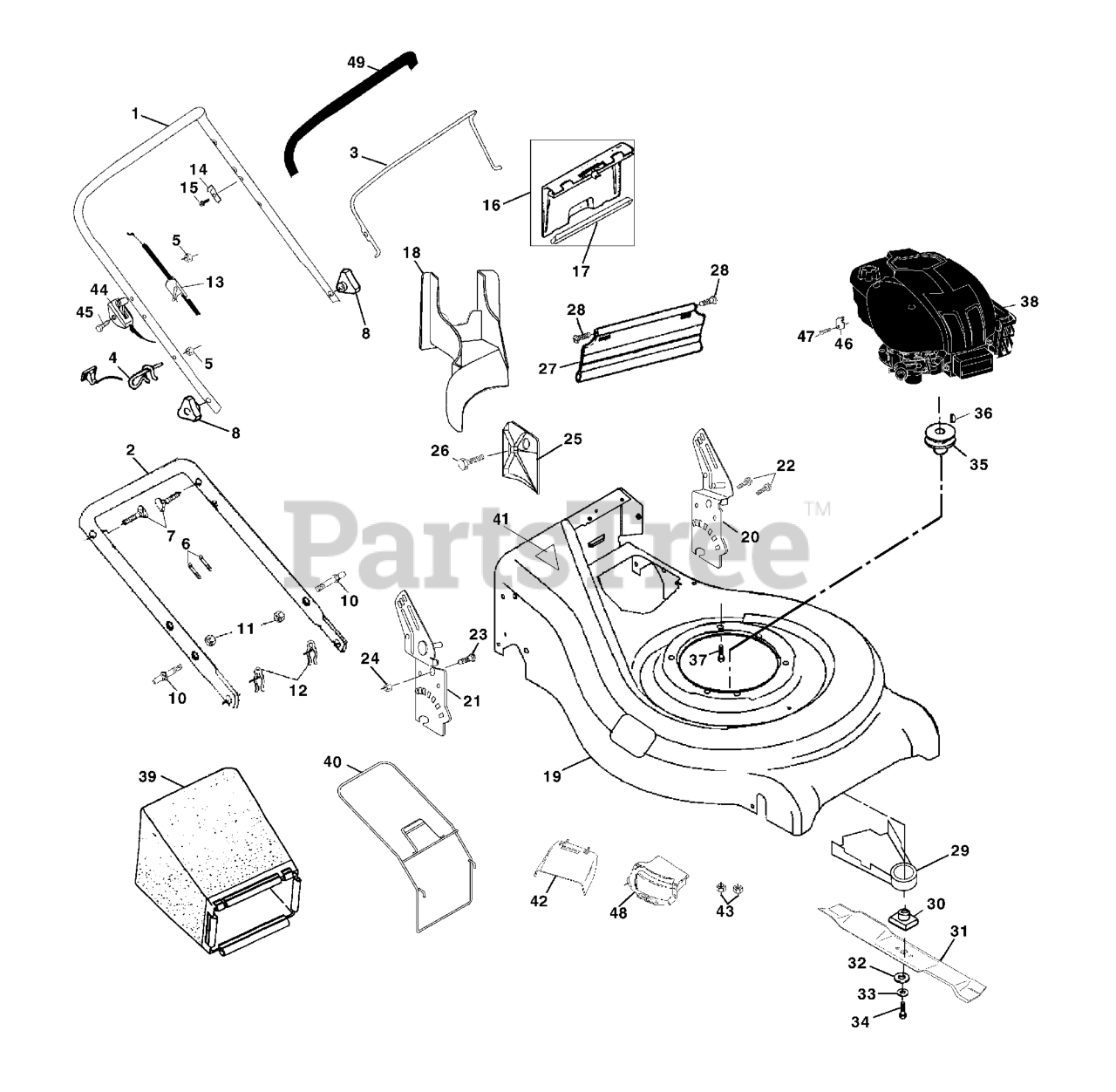

530 RS (954140072-D) - Husqvarna Walk-Behind Mower (1999-12) Main Assy. Parts Diagram

Walk-Behind Mower

Main Assy. Parts Diagram

  • Title

1

Husqvarna 532169369

HANDLE.UP.DLX.COMF.W/GRIP.GREY

$

$

Not available

2

Husqvarna 532173219

REPL BY 532 1611-05
(Superseded to 532197202)

$

$

Not available

3

Husqvarna 532131036

CONTROL BAR
(Superseded to 532851659)

$

$

Not available

4

Husqvarna 532132001

ROPE GUIDE
(Superseded to 586122501)

$9.49

$

In Stock, only 3 left!

0

5

Husqvarna 532063601

NUT
(Superseded to 539976978)

$2.49

$

In Stock, Qty 20+

0

6

Husqvarna 532066426

TIE GUIDE
(Superseded to 532007192)

$9.49

$

Usually ships in 3-10 days

0

7

Husqvarna 532131959

HANDLE BOLT
(Superseded to 532183724)

$

$

Not available

8

Husqvarna 532087692

KNOB

$11.99

$

Usually ships in 3-10 days

0

10

Husqvarna 532161551

BOLT
(Superseded to 532188821)

$5.99

$

In Stock, only 1 left!

0

11

Husqvarna 873990500

NUT
(Superseded to 873800500)

$

$

Not available

12

Husqvarna 532051793

HAIRPIN COTTER

$

$

Not available

13

Husqvarna 532133107

ENGINE ZONE CONTROL

$20.99

$

In Stock, only 2 left!

0

14

Husqvarna 532125162

BRACKET UPSTOP
(Superseded to 532850733)

$5.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532083816

SCREW.HEX.HEAD.WASHER.10-16

$

$

Not available

16

Husqvarna 532162085

KIT.DOOR.REAR.21.WRAPPED.BLACK

$

$

Not available

17

Husqvarna 532161548

SEALING
(Superseded to 532189059)

$

$

Not available

18

Husqvarna 532165261

MULCH PLUG
(Superseded to 532198170)

$43.99

$

In Stock, only 2 left!

0

19

Husqvarna 532169189

KIT-HOUSING

$

$

Not available

20

Husqvarna 532164548

.RACKET
(Superseded to 532161568)

$

$

Not available

21

Husqvarna 532169306

RIGHT HANDLE BRKT. ASSM.
(Superseded to 532181020)

$34.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532150078

SELF-TAPPING SCREW 5/16-18X3/4
(Superseded to 532428867)

$5.99

$

In Stock, Qty 20+

0

23

Husqvarna 532163183

BOLT, HEX HEAD 5/16-18
(Superseded to 596031601)

$3.49

$

Usually ships in 3-10 days

0

24

Husqvarna 532063124

LOCKNUT
(Superseded to 873690500)

$

$

Not available

25

Husqvarna 532161333

CLIPPING DEFLECTOR

$13.99

$

Usually ships in 3-10 days

0

26

Husqvarna 532163409

SCREW

$3.49

$

In Stock, Qty 13

0

27

Husqvarna 532161550

REAR SKIRT
(Superseded to 532408442)

$

$

Not available

28

Husqvarna 532088652

HINGE SCREW

$3.99

$

In Stock, Qty 11

0

29

Husqvarna 532134612

DEBRIS SHIELD
(Superseded to 532048283)

$

$

Not available

30

Husqvarna 532851514

BLADE ADAPTOR

$20.99

$

In Stock, Qty 17

0

31

Husqvarna 532159267

21" MULCH BLADE PREMIUM

$26.99

$

Usually ships in 3-10 days

0

32

Husqvarna 532851074

WASHER,HARDEN

$4.99

$

In Stock, Qty 20+

0

33

Husqvarna 532850263

LOCKWASHER
(Superseded to 539990118)

$3.99

$

In Stock, Qty 20+

0

34

Husqvarna 532851084

SCREW, HEX HD 3/8-24 X 1-3/8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

35

Husqvarna 532084596

ENGINE.PULLEY.FWG

$34.99

$

In Stock, only 1 left!

0

36

Husqvarna 532087677

HI PRO KEY PM WSL

$

$

Not available

37

Husqvarna 532150406

BOLT 3/8-16X1-1/8

$5.99

$

In Stock, Qty 12

0

38

Engine Briggs & Stratton

Note: Model 121602 Order parts from engine manufacturer

$

$

Not available

39

Husqvarna 532169111

Grass Catcher Bag
(Superseded to 532410686)

$125.99

$

Usually ships in 3-10 days

0

40

Husqvarna 532161358

FRAME.GRASS.CATCHER.WALK.21"

$

$

Not available

41

Husqvarna 532107339

DECAL HYT
(Superseded to 581579101)

$3.49

$

Usually ships in 3-10 days

0

42

Husqvarna 532166028

GUARD
(Superseded to 532169699)

$

$

Not available

43

Husqvarna 532088349

NUT

$3.99

$

Usually ships in 3-10 days

0

44

Husqvarna 532168246

THROTTLE CONTROL

$

$

Not available

45

Husqvarna 532144929

SCREW 1/4-20 X 2.12
(Superseded to 532158755)

$

$

Not available

46

Husqvarna 532111190

CABLE CLAMP(ENGINE)

$

$

Not available

47

Husqvarna 532083816

SCREW.HEX.HEAD.WASHER.10-16

$

$

Not available

48

Husqvarna 532171962

MULCH COVER
(Superseded to 532183058)

$113.99

$

In Stock, only 2 left!

0

49

Husqvarna 532164265

GRIP.HANDLE.FOAM
(Superseded to 585161003)

$

$

Not available

Husqvarna 532162300

WARNING DECAL
(Superseded to 530402152)

Note: (Not Shown) Not Shown)

$

$

Not available

Husqvarna 532173100

Owner's Manual

$

$

Currently unavailable
