53002 (53005) - Lawn-Boy Straight Shaft String Trimmer (SN: 000895001 - 000899999) (1998) CLUTCH AND HANDLE ASSEMBLY Parts Diagram

Straight Shaft String Trimmer

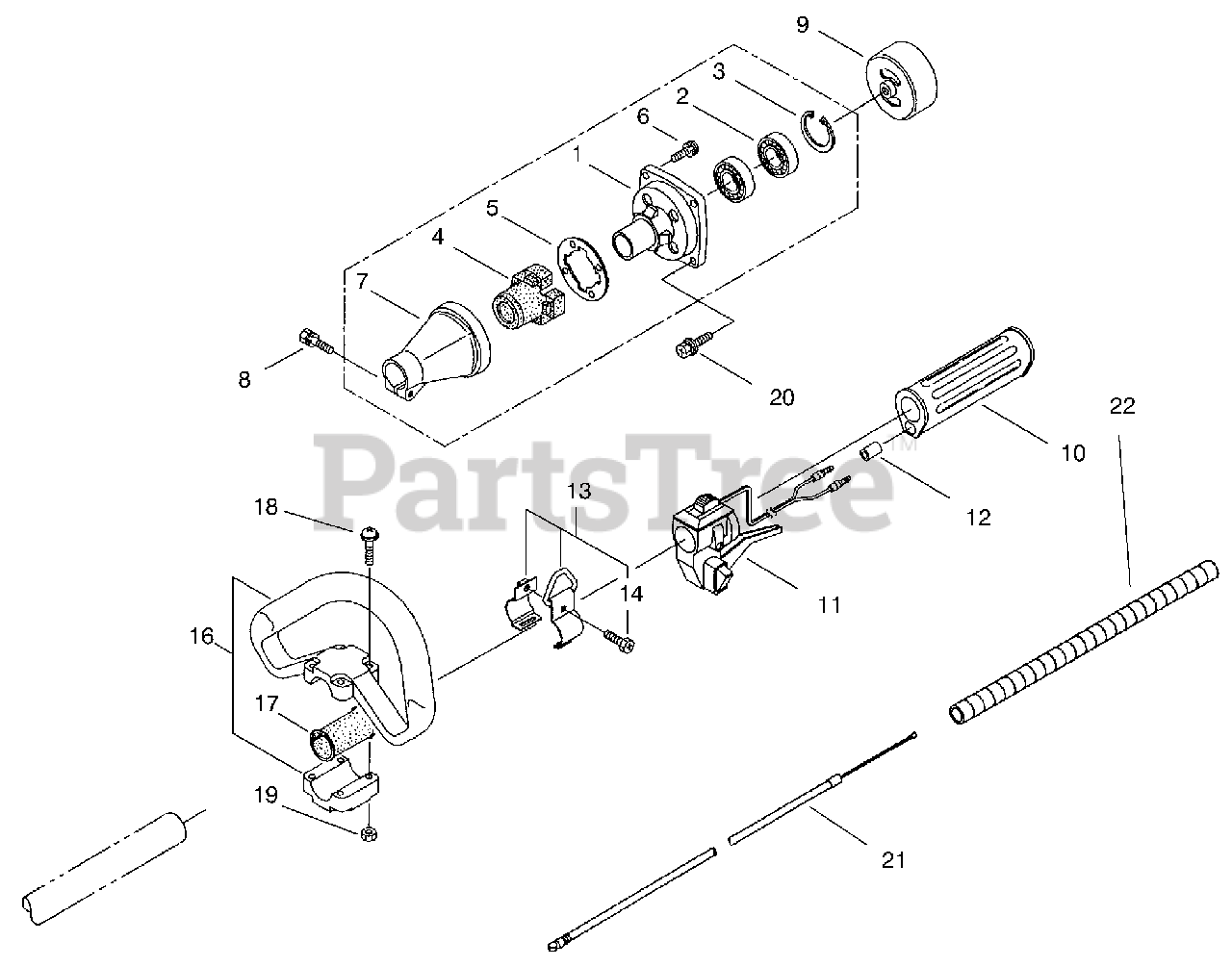

CLUTCH AND HANDLE ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy M214592

Bearing Case

$

$

Not available

2

Lawn-Boy M214161

Bearing

$

$

Not available

3

Lawn-Boy M054676

Snap Ring

$

$

Not available

4

Lawn-Boy M214162

Buffer

$

$

Not available

5

Lawn-Boy M214163

Washer

$

$

Not available

6

Lawn-Boy M092033

Screw

$

$

Not available

7

Lawn-Boy M214593

Driveshaft Tube Adapter

$

$

Not available

8

Lawn-Boy M092561

Bolt

$

$

Not available

9

Lawn-Boy M054677

Clutch Drum

$52.99

$

In Stock, only 1 left!

0

10

Lawn-Boy M221434

Shaft Grip

$

$

Not available

11

Lawn-Boy M221465

Throttle Trigger

$

$

Not available

12

Lawn-Boy M214083

Outer Guide

$

$

Not available

13

Lawn-Boy M054691

Hanging Bracket Assembly (Incl. Ref. #14)

$

$

Not available

14

Lawn-Boy M089738

Bolt

$

$

Not available

16

Lawn-Boy M219032

Loop Handle

$82.99

$

Usually ships in 3-6 days

0

17

Lawn-Boy M213171

Packing

$

$

Not available

18

Lawn-Boy M092088

Screw

$

$

Not available

19

Lawn-Boy M081027

Nut

$2.49

$

Usually ships in 3-6 days

0

20

Lawn-Boy M817002

Bolt

$2.49

$

Usually ships in 3-6 days

0

21

Lawn-Boy M213444

Throttle Cable

$20.99

$

Usually ships in 3-6 days

0

22

Lawn-Boy M213548

Plastic Tube

$

$

Not available

Lawn-Boy M215512

Clutch Case Assembly (Incl. Ref. #1-7)

Note: Not Illustrated

$

$

Not available

Lawn-Boy 95-6122

Safety Glasses

Note: Not Illustrated

$

$

Not available
