53002 (53005) - Lawn-Boy Straight Shaft String Trimmer (SN: 000895001 - 000899999) (1998) ENGINE ASSEMBLY Parts Diagram

Straight Shaft String Trimmer

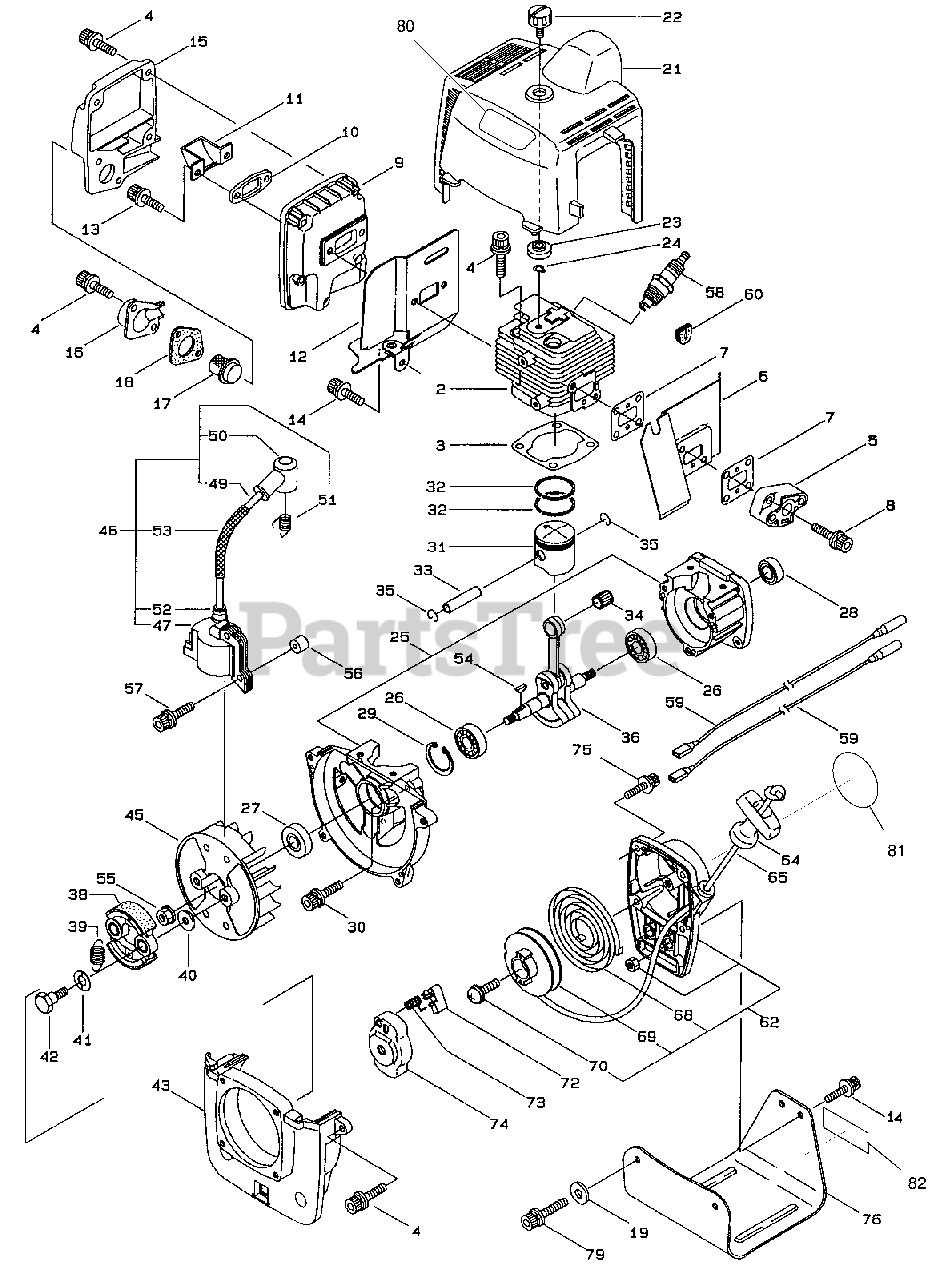

ENGINE ASSEMBLY Parts Diagram

  • Title

2

Lawn-Boy M261472

Cylinder

$

$

Not available

3

Lawn-Boy M262200

Gasket

$31.99

$

Usually ships in 3-6 days

0

4

Lawn-Boy M261250

Cap Screw

$2.99

$

Usually ships in 3-6 days

0

5

Lawn-Boy M266317

Insulator

$

$

Not available

6

Lawn-Boy M266124

Air Duct

$

$

Not available

7

Lawn-Boy M261171

Gasket

$

$

Not available

8

Lawn-Boy M265924

Cap Screw

$

$

Not available

9

Lawn-Boy M262438

Muffler Body

$

$

Not available

10

Lawn-Boy M261986

Deflector Plate

$

$

Not available

11

Lawn-Boy M261368

Deflector

$

$

Not available

12

Lawn-Boy M261968

Gasket

$

$

Not available

13

Lawn-Boy M261246

Cap Screw

$

$

Not available

14

Lawn-Boy M261607

Cap Screw

$

$

Not available

15

Lawn-Boy M262440

Muffler Cover

$

$

Not available

16

Lawn-Boy M262442

Muffler Trail

$

$

Not available

17

Lawn-Boy M262443

Spark Arrestor

$

$

Not available

18

Lawn-Boy M262446

Gasket

$

$

Not available

19

Lawn-Boy M263743

Washer

$

$

Not available

21

Lawn-Boy M266068

Top Cover

$

$

Not available

22

Lawn-Boy M261018

Knob

$

$

Not available

23

Lawn-Boy M261020

Spacer

$

$

Not available

24

Lawn-Boy M261734

Snap Ring

$2.49

$

In Stock, only 1 left!

0

25

Lawn-Boy M261486

Crankcase

$349.99

$

Usually ships in 3-6 days

0

26

Lawn-Boy M261491

Bearing

$

$

Not available

27

Lawn-Boy M261492

Oil Seal

$

$

Not available

28

Lawn-Boy M261386

Oil Seal

$

$

Not available

29

Lawn-Boy M055185

Snap Ring

$

$

Not available

30

Lawn-Boy M261612

Cap Screw

$

$

Not available

31

Lawn-Boy M265012

Piston

$

$

Not available

32

Lawn-Boy M261496

Piston Ring

$23.99

$

Usually ships in 3-6 days

0

33

Lawn-Boy M261497

Piston Pin

$

$

Not available

34

Lawn-Boy M261037

Bearing-Needle

$

$

Not available

35

Lawn-Boy M261576

Clip-Piston

$

$

Not available

36

Lawn-Boy M265197

Crankshaft-Connector Rod Assembly

$432.99

$

Usually ships in 3-6 days

0

38

Lawn-Boy M264504

Clutch Shoe

$

$

Not available

39

Lawn-Boy M263614

Spring-Clutch

$

$

Not available

40

Lawn-Boy M261189

Washer

$

$

Not available

41

Lawn-Boy M261777

Wave Washer

$

$

Not available

42

Lawn-Boy M264505

Bolt

$

$

Not available

43

Lawn-Boy M266319

Fan Cover

$

$

Not available

45

Lawn-Boy M261356

Rotor-Fan

$

$

Not available

46

Lawn-Boy M261301

Ignition Coil Assembly (Incl. Ref. #47-53)

$

$

Not available

47

Lawn-Boy M261302

Coil

$

$

Not available

49

Lawn-Boy M261071

Spark Plug Wire

$

$

Not available

50

Lawn-Boy M261074

Plug Boot

$

$

Not available

51

Lawn-Boy M261075

Connector

$

$

Not available

52

Lawn-Boy M261072

Cap

$

$

Not available

53

Lawn-Boy M261073

Insulator

$

$

Not available

54

Lawn-Boy M261076

Woodruff Key

$

$

Not available

55

Lawn-Boy M261417

Nut-Rotor

$

$

Not available

56

Lawn-Boy M261078

Spacer

$

$

Not available

57

Lawn-Boy M261256

Cap Screw

$

$

Not available

58

Lawn-Boy M261200

Spark Plug (NGK BPM6Y)

$

$

Not available

59

Lawn-Boy M261772

Wire-Coil Ground

$

$

Not available

60

Lawn-Boy M261202

Grommet

$

$

Not available

62

Lawn-Boy M262039

Recoil Assembly (Incl. Ref. #63-70)

$

$

Not available

64

Lawn-Boy M261725

Starter Grip

$

$

Not available

65

Lawn-Boy M261724

Starter Rope

$

$

Not available

68

Lawn-Boy M261721

Spiral Spring

$

$

Not available

69

Lawn-Boy M261720

Pulley

$

$

Not available

70

Lawn-Boy M262922

Screw

$

$

Not available

72

Lawn-Boy M263477

Pawl

$16.99

$

Usually ships in 3-6 days

0

73

Lawn-Boy M261728

Return Spring

$

$

Not available

74

Lawn-Boy M263476

Pawl Case

$53.99

$

Usually ships in 3-6 days

0

75

Lawn-Boy M261257

Cap Screw

$

$

Not available

76

Lawn-Boy M266099

Stand

$

$

Not available

79

Lawn-Boy M261999

Cap Screw

$

$

Not available

80

Lawn-Boy M266322

Decal-Toro

$

$

Not available

81

Lawn-Boy M266211

Decal-Toro (Round)

$

$

Not available

82

Lawn-Boy 25-9150

Decal-Serial

$17.99

$

Usually ships in 3-6 days

0

Lawn-Boy M261910

Liquid Gasket

Note: Not Illustrated

$

$

Not available

Lawn-Boy M266237

Engine Assembly

Note: Not Illustrated

$

$

Not available
