5300250 - Simplicity Blower Mount for 61" Non iCD Mower 44" (112cm) Mower Deck - Clutch & Support Group (2983858) Parts Diagram

Blower Mount for 61" Non iCD Mower

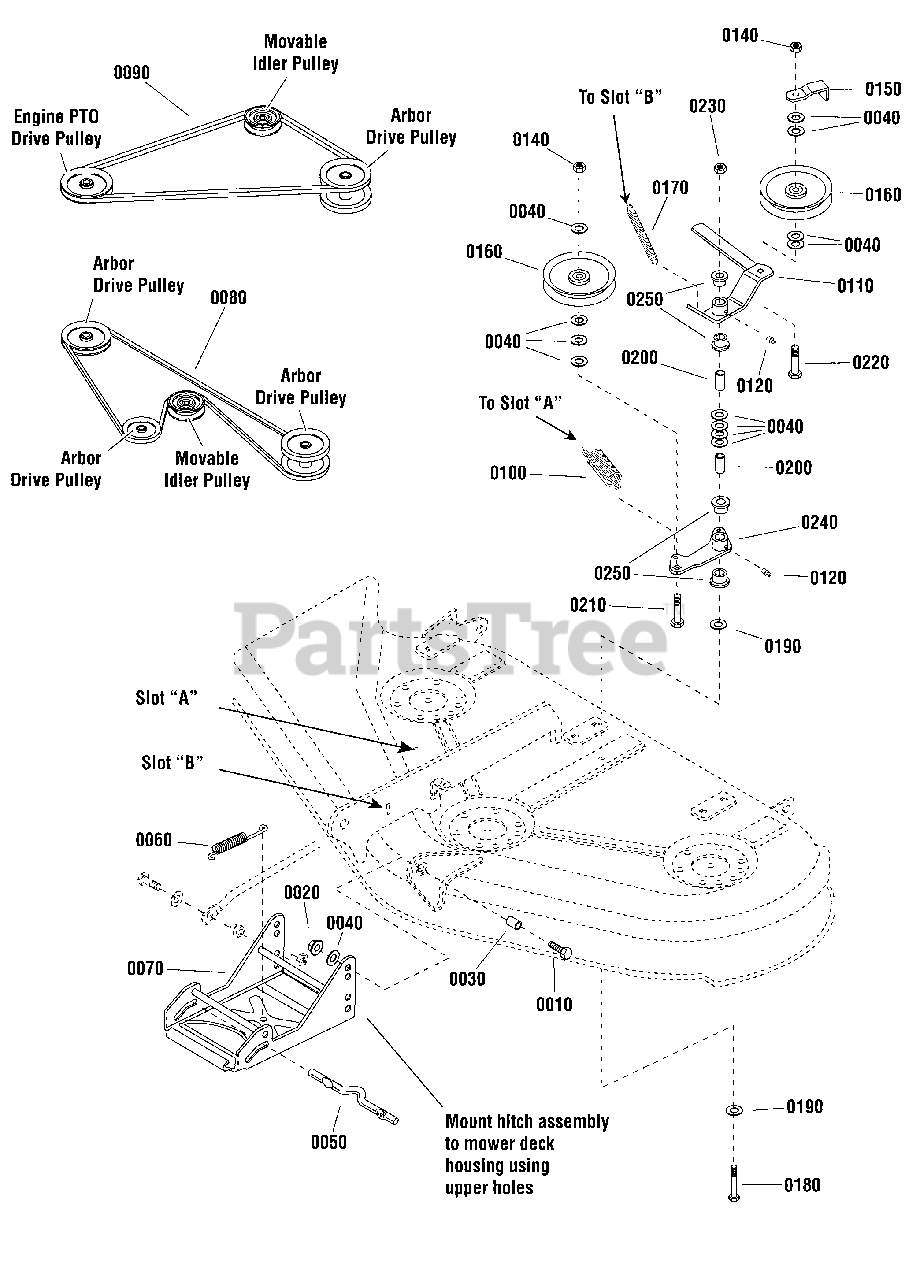

44" (112cm) Mower Deck - Clutch & Support Group (2983858) Parts Diagram

  • Title

0010

Simplicity 1921968SM

CAPSCREW, Hex Head, 3/8-16 x 1-3/8

$4.49

$

In Stock, only 2 left!

0

0020

Simplicity 2860681SM

NUT, Hex Toplock Spiralock Flange, 3/8-16

$4.49

$

In Stock, Qty 8

0

0030

Simplicity 2157081SM

SPACER, 3/8 x 3/4 x 1/2

$9.49

$

In Stock, Qty 6

0

0040

Simplicity 1924940SM

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

0050

Simplicity 1715759SM

ROD, Latch

$8.49

$

In Stock, Qty 20+

0

0060

Simplicity 2156302SM

SPRING

$6.49

$

In Stock, Qty 20+

0

0070

Simplicity 1707432ASM

HITCH ASSEMBLY

$

$

Not available

0080

Simplicity 1721532SM

V-BELT, Arbor Drive

$36.99

$

In Stock, Qty 20+

0

0090

Simplicity 1601672SM

V-BELT, Mower Drive

$27.99

$

In Stock, Qty 6

0

0100

Simplicity 1656936SM

SPRING

$10.99

$

In Stock, Qty 20+

0

0110

Simplicity 1704658SM

LEVER ASSEMBLY, Idler

$51.99

$

In Stock, only 2 left!

0

0120

Simplicity 2812808SM

GREASE FITTING

$4.99

$

In Stock, Qty 20+

0

0140

Simplicity 1960687SM

NUT, Lock, 3/8-16
(Superseded to 703158)

$3.49

$

Usually ships in 2-12 days

0

0150

Simplicity 1677135ASM

BELT STOP, Idler

$12.99

$

In Stock, Qty 5

0

0160

Simplicity 1724387SM

PULLEY, Idler

$36.99

$

In Stock, Qty 20+

0

0170

Simplicity 1715435SM

SPRING

$9.99

$

In Stock, Qty 20+

0

0180

Simplicity 1923938SM

CAPSCREW, Hex Head, 3/8-16 x 3-1/2
(Superseded to 5025013X28SM)

$4.99

$

In Stock, Qty 20+

0

0190

Simplicity 1924356SM

WASHER, 3/8
(Superseded to 703591)

$5.49

$

In Stock, Qty 20+

0

0200

Simplicity 1674669SM

SPACER, 25/64 x 5/8 x 1-1/8

$11.99

$

In Stock, Qty 20+

0

0210

Simplicity 1931352SM

CARRIAGE BOLT, 3/8-16 x 1-1/2

$4.49

$

In Stock, Qty 20+

0

0220

Simplicity 1960315SM

CARRIAGE BOLT, 3/8-16 x 2

$6.99

$

In Stock, Qty 7

0

0230

Simplicity 1960339SM

NUT, Hex, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

0240

Simplicity 1718561SM

LEVER ASSEMBLY, Idler Arm

Note: (Includes Ref. No. 0250)

$53.99

$

In Stock, Qty 13

0

0250

Simplicity 1676148SM

BUSHING, 5/8 x 3/4

$5.99

$

In Stock, Qty 20+

0
