53003 (53005) - Toro Straight Shaft Trimmer (SN: 089005001 - 089009999) (1998) CLUTCH AND HANDLE ASSEMBLY Parts Diagram

Straight Shaft Trimmer

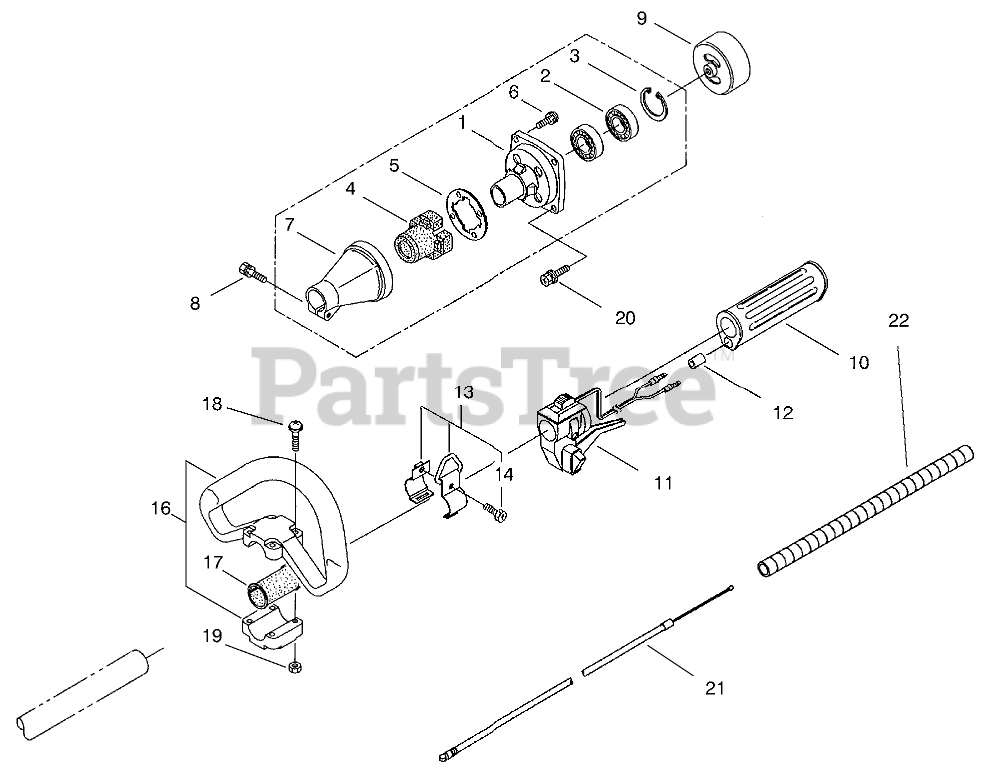

CLUTCH AND HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro M214592

CASE - BEARING

$

$

Not available

2

Toro M214161

BEARING

$

$

Not available

3

Toro M054676

RING - SNAP

$

$

Not available

4

Toro M214162

BUFFER

$

$

Not available

5

Toro M214163

WASHER

$

$

Not available

6

Toro M092033

SCREW

$

$

Not available

7

Toro M214593

ADAPTER-DRIVESHAFT TUBE

$

$

Not available

8

Toro M092561

BOLT

$

$

Not available

9

Toro M054677

DRUM - CLUTCH

$52.99

$

In Stock, only 1 left!

0

10

Toro M221434

GRIP - SHAFT

$

$

Not available

11

Toro M221465

TRIGGER - THROTTLE

$

$

Not available

12

Toro M214083

GUIDE - OUTER

$

$

Not available

13

Toro M054691

Hanging Bracket Assembly (Incl. Ref. #14)

$

$

Not available

14

Toro M089738

BOLT

$

$

Not available

16

Toro M219032

HANDLE - LOOP

$91.99

$

Usually ships in 3-6 days

0

17

Toro M213171

PACKING

$

$

Not available

18

Toro M092088

SCREW

$

$

Not available

19

Toro M081027

NUT M5

$

$

Not available

20

Toro M817002

BOLT

$

$

Not available

21

Toro M213444

CABLE - THROTTLE

$

$

Not available

22

Toro M213548

TUBE - PLASTIC

$

$

Not available

Toro M215512

Clutch Case Assembly (Incl. Ref. #1-7)

Note: Not illustrated

$

$

Not available

Toro 95-6122

SAFETY GLASSES (CLEAR)

Note: Not illustrated

$

$

Not available
