53008 - Lawn-Boy Curved Shaft String Trimmer (SN: 000990001 - 000999999) (1999) CLUTCH AND HANDLE ASSEMBLY Parts Diagram

Curved Shaft String Trimmer

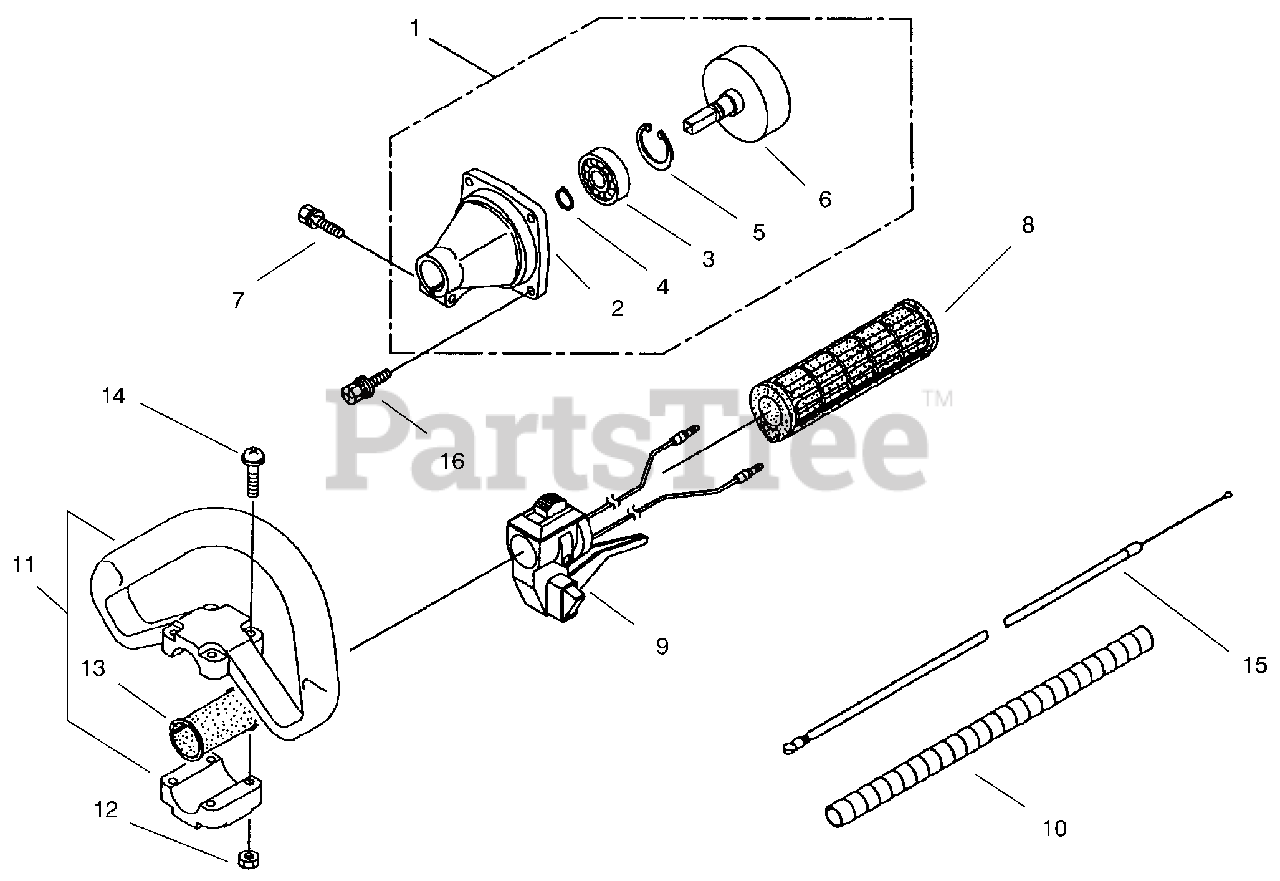

CLUTCH AND HANDLE ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy M218868

Clutch Case Asm (Incl. Ref. # 2-6)

$

$

Not available

2

Lawn-Boy M218869

Clutch Case

$

$

Not available

3

Lawn-Boy M012649

Bearing

$

$

Not available

4

Lawn-Boy M140273

Snap Ring

$

$

Not available

5

Lawn-Boy M016732

Snap Ring

$

$

Not available

6

Lawn-Boy M218492

Clutch Drum

$

$

Not available

7

Lawn-Boy M092561

Bolt

$

$

Not available

8

Lawn-Boy M215995

Grip-Shaft

$

$

Not available

9

Lawn-Boy M222952

Trigger-Throttle

$

$

Not available

10

Lawn-Boy M223052

Tube-Plastic

$

$

Not available

Lawn-Boy M223069

Loop Handle Asm (Incl. Ref. # 11-14)

Note: Not Illustrated

$

$

Not available

11

Lawn-Boy M219032

Handle-Loop

$82.99

$

Usually ships in 3-6 days

0

12

Lawn-Boy M081027

Nut

$2.49

$

Usually ships in 3-6 days

0

13

Lawn-Boy M216004

Packing

$

$

Not available

14

Lawn-Boy M092088

Screw

$

$

Not available

15

Lawn-Boy M223051

Cable-Throttle

$

$

Not available

16

Lawn-Boy M817002

Bolt

$2.49

$

Usually ships in 3-6 days

0

Lawn-Boy 95-6211

Glasses-Safety

Note: Not Illustrated

$

$

Currently unavailable
