53008 - Toro String Trimmer, Curved Shaft (SN: 099000001 - 099999999) (1999) Clutch And Handle Assembly Parts Diagram

String Trimmer, Curved Shaft

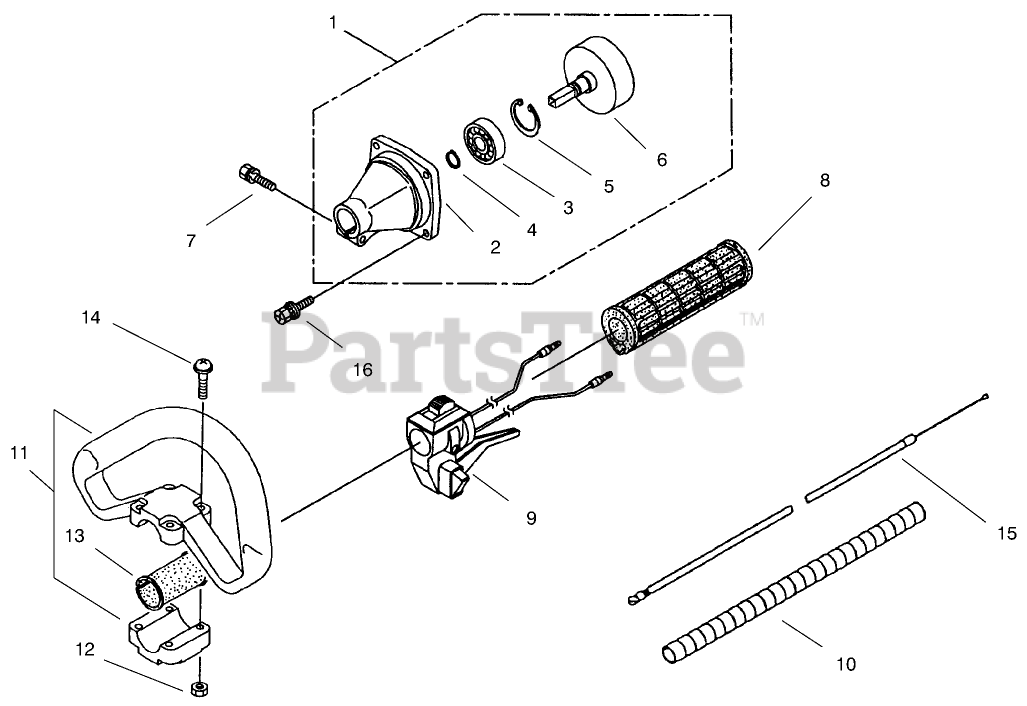

Clutch And Handle Assembly Parts Diagram

  • Title

1

Toro M218868

CLUTCH ASSY-COMPLETE

$

$

Not available

2

Toro M218869

CLUTCH HOUSING

$

$

Not available

3

Toro M012649

BEARING

$

$

Not available

4

Toro M140273

DISCONTINUED

$

$

Not available

5

Toro M016732

RING - SNAP, C-SHAPED 32

$

$

Not available

6

Toro M218492

CLUTCH BELL

$

$

Not available

7

Toro M092561

BOLT

$

$

Not available

8

Toro M215995

DISCONTINUED

$

$

Not available

9

Toro M222952

DISCONTINUED

$

$

Not available

10

Toro M223052

DRIVE SHAFT LINER

$

$

Not available

Toro M223069

LOWER HANDLE ASSY

Note: Not illustrated

$

$

Not available

11

Toro M219032

HANDLE - LOOP

$91.99

$

Usually ships in 3-6 days

0

12

Toro M081027

NUT M5

$

$

Not available

13

Toro M216004

DISCONTINUED

$

$

Not available

14

Toro M092088

SCREW

$

$

Not available

15

Toro M223051

DISCONTINUED

$

$

Not available

16

Toro M817002

BOLT

$

$

Not available

Toro 95-6211

Glasses-Safety

Note: Not illustrated

$

$

Currently unavailable
