53008 - Toro String Trimmer, Curved Shaft (SN: 099000001 - 099999999) (1999) CLUTCH AND HANDLE ASSEMBLY Parts Diagram

String Trimmer, Curved Shaft

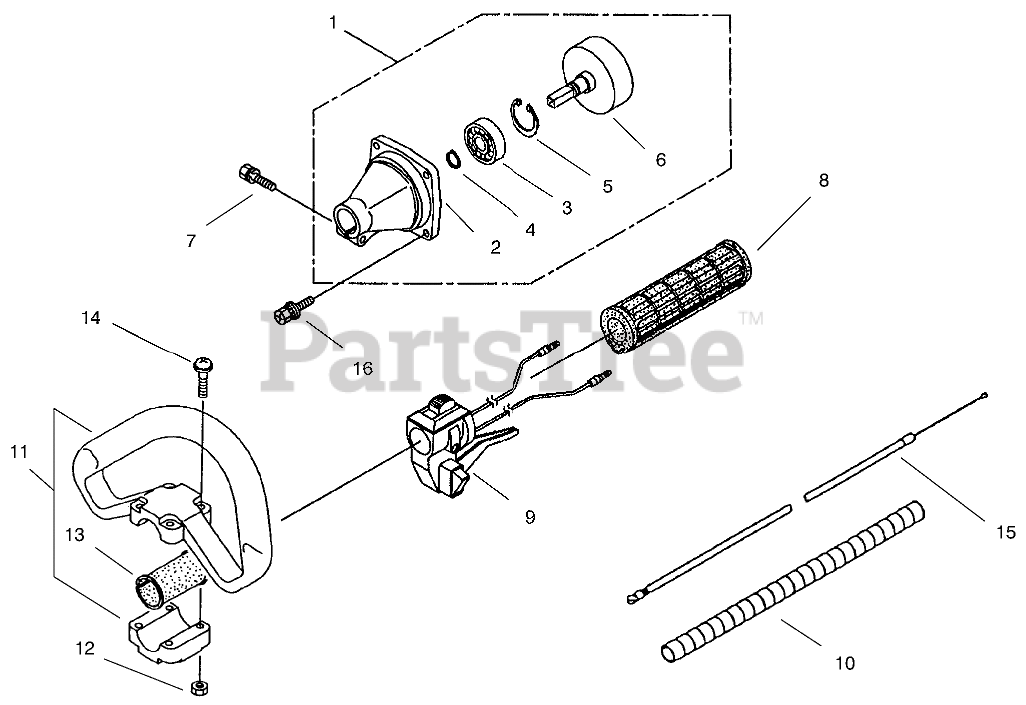

CLUTCH AND HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro M218868

Clutch Case Asm (Incl. Ref. # 2-6)

$

$

Not available

2

Toro M218869

CLUTCH HOUSING

$

$

Not available

3

Toro M012649

BEARING

$

$

Not available

4

Toro M140273

RETAINING RING

$

$

Not available

5

Toro M016732

RING - SNAP, C-SHAPED 32

$

$

Not available

6

Toro M218492

CLUTCH BELL

$

$

Not available

7

Toro M092561

BOLT

$

$

Not available

8

Toro M215995

GRIP

$

$

Not available

9

Toro M222952

THROTTLE AND SHUTOFF ASSY

$

$

Not available

10

Toro M223052

DRIVE SHAFT LINER

$

$

Not available

Toro M223069

Loop Handle Asm (Incl. Ref. # 11-14)

Note: Not illustrated

$

$

Not available

11

Toro M219032

HANDLE - LOOP

$82.99

$

Usually ships in 3-6 days

0

12

Toro M081027

NUT M5

$2.49

$

Usually ships in 3-6 days

0

13

Toro M216004

VIBRATION ISOLATOR

$

$

Not available

14

Toro M092088

SCREW

$

$

Not available

15

Toro M223051

THROTTLE WIRE

$

$

Not available

16

Toro M817002

BOLT

$2.49

$

Usually ships in 3-6 days

0

Toro 95-6211

Glasses-Safety

Note: Not illustrated

$

$

Currently unavailable
