53008 - Toro String Trimmer, Curved Shaft (SN: 099000001 - 099999999) (1999) HEAD, SHAFT AND SHIELD ASSEMBLY Parts Diagram

String Trimmer, Curved Shaft

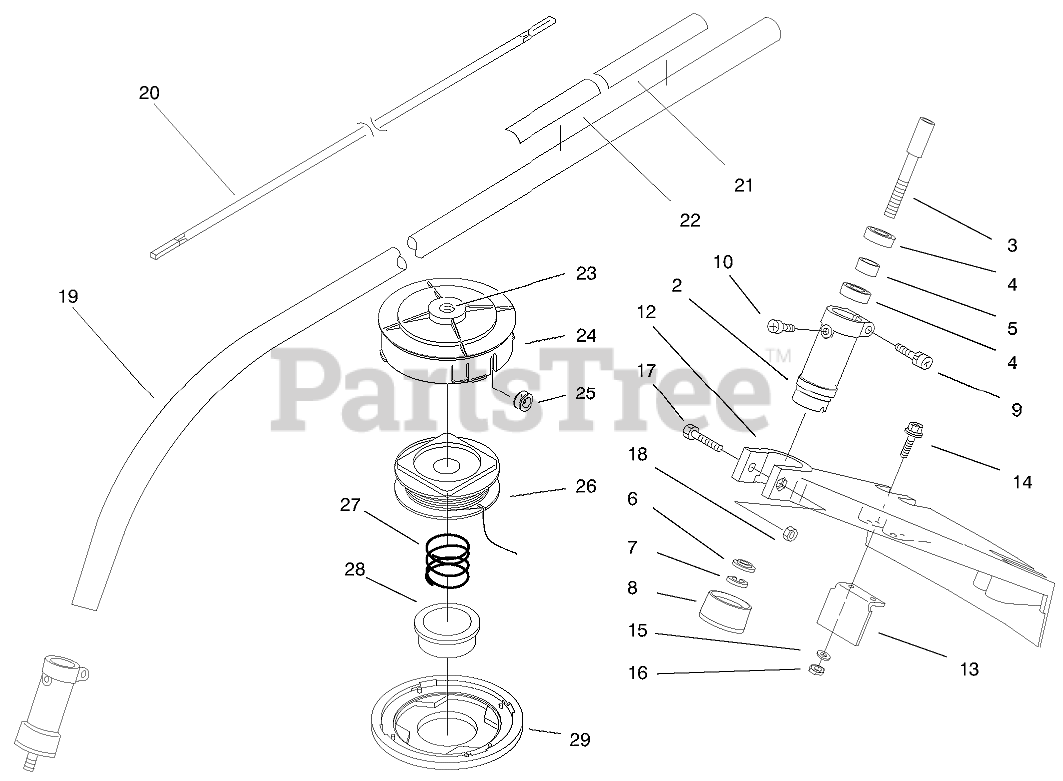

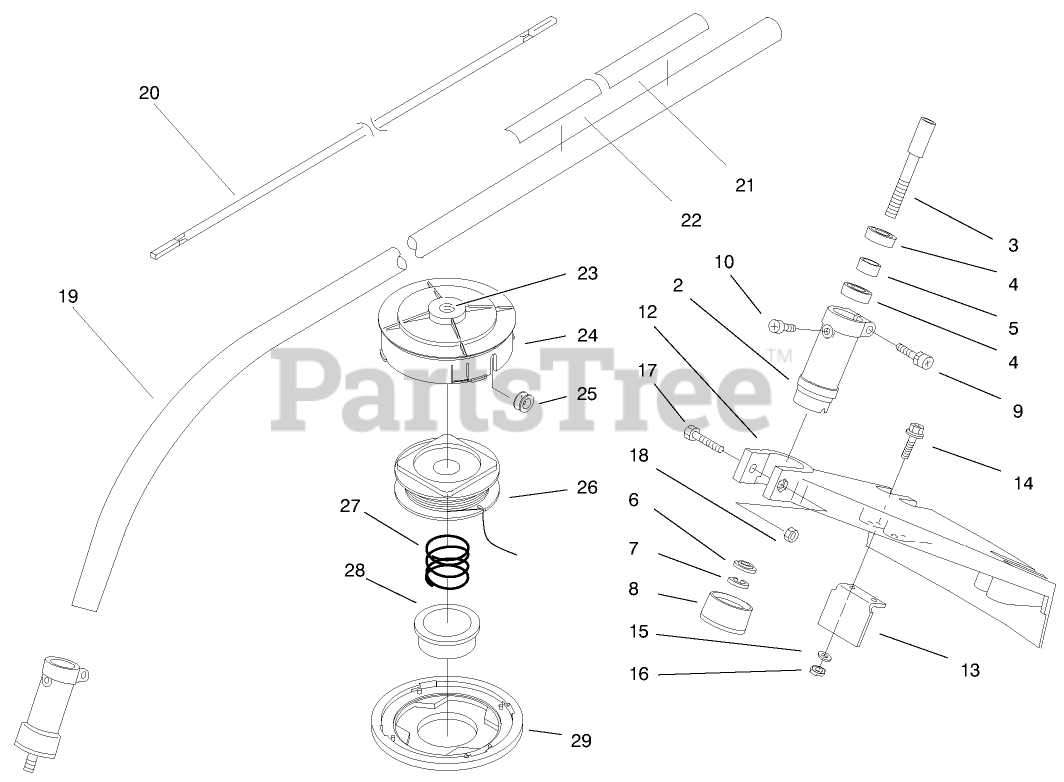

HEAD, SHAFT AND SHIELD ASSEMBLY Parts Diagram

  • Title

1

Toro M215986

Bearing Head Asm (Incl. Ref. # 2-8)

Note: Not illustrated

$

$

Not available

2

Toro M215987

BEARING HEAD

$

$

Not available

3

Toro M215988

SHAFT

$

$

Not available

4

Toro M215989

BEARING

$

$

Not available

5

Toro M215990

SPACER

$

$

Not available

6

Toro M215991

INNER CAP

$

$

Not available

7

Toro M015845

WASHER - SPRING

$

$

Not available

8

Toro M215992

OUTER CAP

$

$

Not available

9

Toro M092550

SCREW

$

$

Not available

10

Toro M089736

SCREW

$

$

Not available

11

Toro M220246

Guard Asm (Incl. Ref. #12-18)

Note: Not illustrated

$

$

Not available

12

Toro M215999

SHIELD

$

$

Not available

13

Toro M216000

STRING CUTTER

$

$

Not available

14

Toro M096043

SCREW

$

$

Not available

15

Toro M012501

WASHER - SPRING

$

$

Not available

16

Toro M081027

NUT M5

$

$

Not available

17

Toro M089559

SCREW

$

$

Not available

18

Toro M081030

NUT

$

$

Not available

19

Toro M220079

Driveshaft Tube Asm (Incl. Ref. # 22)

$

$

Not available

20

Toro M215985

DRIVE SHAFT-FLEXIBLE

$

$

Not available

21

Toro M221500

DECAL - TORO

$

$

Not available

22

Toro M221501

DECAL - CAUTION

$

$

Not available

23

Toro 99-8516

BOLT (UA-1006)

$34.99

$

In Stock, only 1 left!

0

24

Toro 95-7451

HOUSING

$56.99

$

In Stock, only 1 left!

0

25

Toro 95-7450

EYELET

$2.99

$

In Stock, Qty 5

0

26

Toro 95-7455

SPOOL W/LINE (LH)

$41.99

$

Usually ships in 3-6 days

0

Toro 95-7452

SPOOL

Note: Not illustrated

$

$

Not available

27

Toro 95-7465

SPRING

$

$

Not available

28

Toro 95-7453

BUTTON

$15.99

$

In Stock, only 1 left!

0

29

Toro 95-7454

COVER (SN-348L)

$49.99

$

In Stock, only 3 left!

0

Toro 99-8520

4" Head Asm (Incl. Ref. #24-29)

Note: Not illustrated

$

$

Not available
