53009 - Lawn-Boy Straight Shaft String Trimmer (SN: 200000001 - 200999999) (2000) CLUTCH AND HANDLE ASSEMBLY Parts Diagram

Straight Shaft String Trimmer

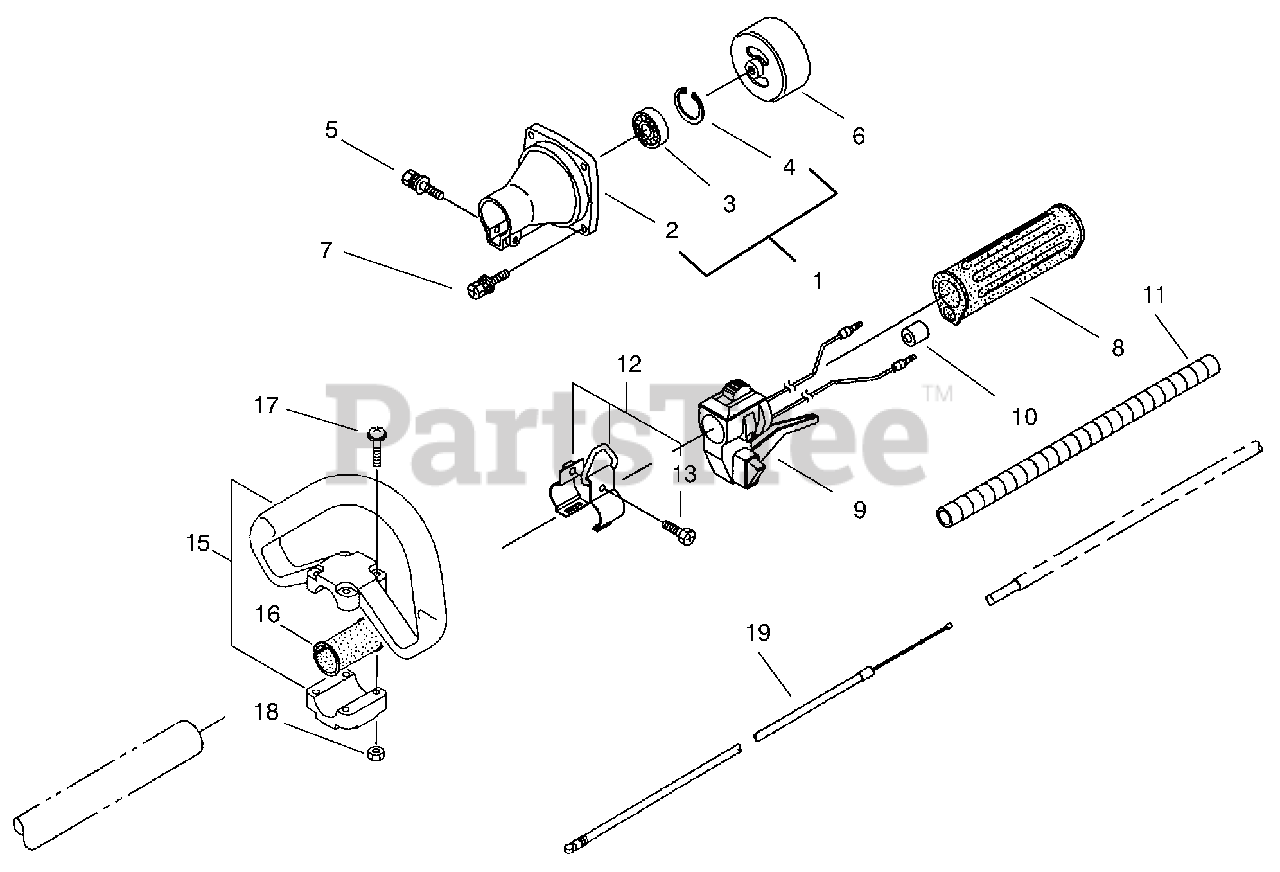

CLUTCH AND HANDLE ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy M221473

Clutch Case Asm (Incl. Ref. #2-4)

Note: Not Illustrated

$

$

Currently unavailable

2

Lawn-Boy M221474

CLUTCH HOUSING

$

$

Not available

3

Lawn-Boy M016405

BEARING

$

$

Not available

4

Lawn-Boy M013825

RETAINING RING

$

$

Not available

5

Lawn-Boy M096042

SCREW

$

$

Not available

6

Lawn-Boy M054677

DRUM - CLUTCH

$52.99

$

In Stock, only 1 left!

0

7

Lawn-Boy M817002

BOLT

$2.49

$

Usually ships in 3-6 days

0

8

Lawn-Boy M221434

GRIP - SHAFT

$

$

Not available

9

Lawn-Boy M222953

THROTTLE AND SHUTOFF ASSY

$

$

Not available

10

Lawn-Boy M214083

GUIDE - OUTER

$

$

Not available

11

Lawn-Boy M223052

DRIVE SHAFT LINER

$

$

Not available

12

Lawn-Boy M054691

Hanging Bracket Asm (Incl. Ref. #13)

$

$

Not available

13

Lawn-Boy M089738

BOLT

$

$

Not available

14

Lawn-Boy M219046

Loop Handle Asm (Incl. Ref. #15-18)

Note: Not Illustrated

$

$

Not available

15

Lawn-Boy M219032

HANDLE - LOOP

$82.99

$

Usually ships in 3-6 days

0

16

Lawn-Boy M213171

PACKING

$

$

Not available

17

Lawn-Boy M092088

SCREW

$

$

Not available

18

Lawn-Boy M081027

NUT M5

$2.49

$

Usually ships in 3-6 days

0

19

Lawn-Boy M223051

THROTTLE WIRE

$

$

Not available

Lawn-Boy 95-6122

SAFETY GLASSES (CLEAR)

Note: Not Illustrated

$

$

Not available
