53010 (53013) - Lawn-Boy Straight Shaft String Trimmer (SN: 000895001 - 000899999) (1998) ENGINE ASSEMBLY Parts Diagram

Straight Shaft String Trimmer

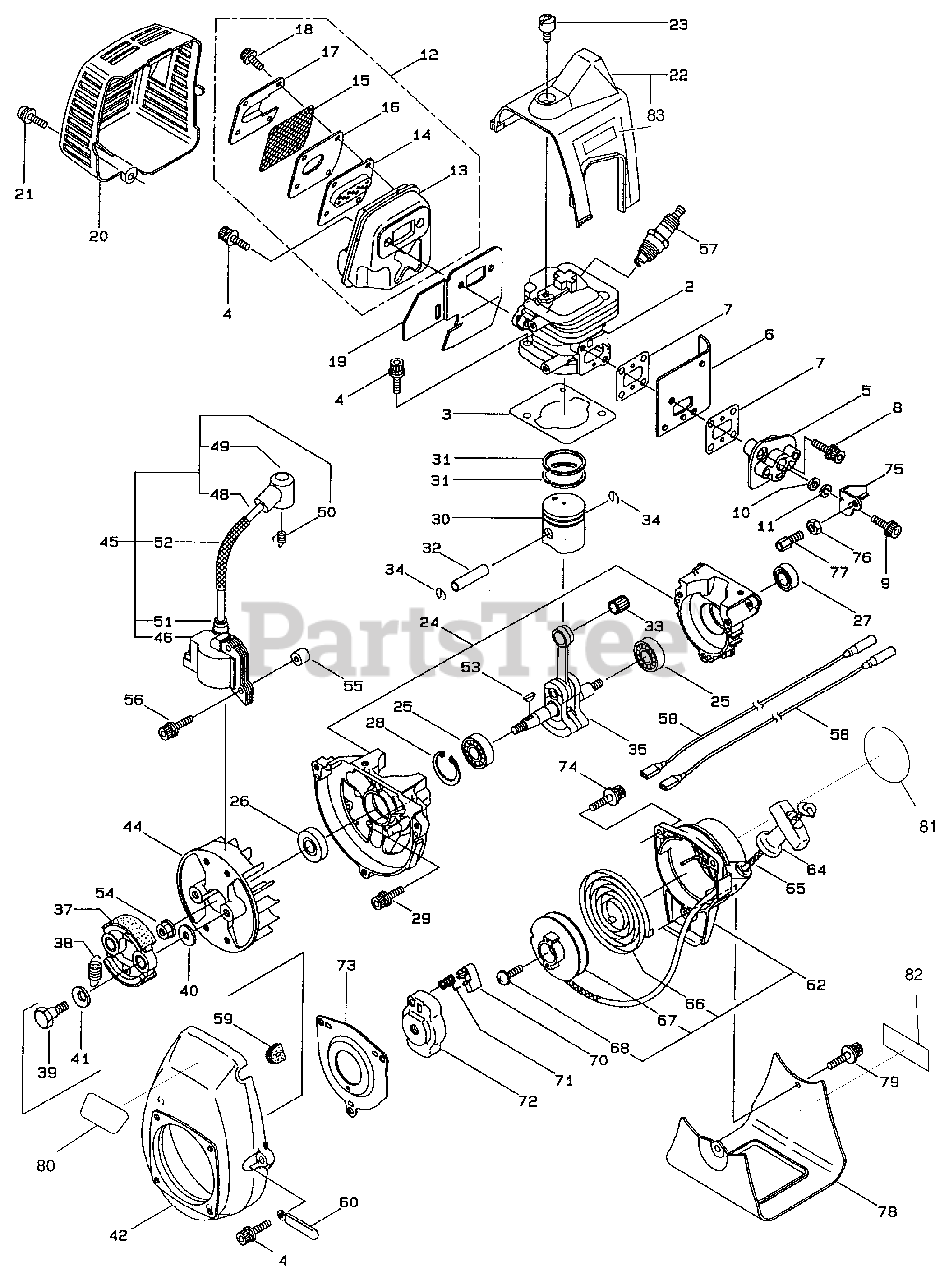

ENGINE ASSEMBLY Parts Diagram

  • Title

2

Lawn-Boy M264981

Cylinder

$

$

Not available

3

Lawn-Boy M263770

Gasket

$

$

Not available

4

Lawn-Boy M261250

Cap Screw

$2.99

$

Usually ships in 3-6 days

0

5

Lawn-Boy M265802

Insulator

$

$

Not available

6

Lawn-Boy M265794

Air Duct

$

$

Not available

7

Lawn-Boy M261171

Gasket

$

$

Not available

8

Lawn-Boy M265924

Cap Screw

$

$

Not available

9

Lawn-Boy M265925

Cap Screw

$

$

Not available

10

Lawn-Boy M012487

Washer

$

$

Not available

11

Lawn-Boy M089901

Spring Washer

$

$

Not available

12

Lawn-Boy M265104

Muffler Assembly (Incl. Ref. #13-18)

$124.99

$

Usually ships in 3-6 days

0

13

Lawn-Boy M264832

Muffler Comp.

$

$

Not available

14

Lawn-Boy M264864

Plate

$

$

Not available

15

Lawn-Boy M264835

Screen

$

$

Not available

16

Lawn-Boy M264837

Gasket

$

$

Not available

17

Lawn-Boy M264836

Tail

$

$

Not available

18

Lawn-Boy M265107

Cap Screw

$

$

Not available

19

Lawn-Boy M263777

Gasket

$

$

Not available

20

Lawn-Boy M264829

Cover-Muffler

$

$

Not available

21

Lawn-Boy M264807

Cap Screw

$

$

Not available

22

Lawn-Boy M266490

Cylinder Cover

$

$

Not available

23

Lawn-Boy M265742

Knob

$

$

Not available

24

Lawn-Boy M264312

Crankcase

$

$

Not available

25

Lawn-Boy M261181

Bearing

$

$

Not available

26

Lawn-Boy M262712

Oil Seal

$8.99

$

Usually ships in 3-6 days

0

27

Lawn-Boy M262713

Oil Seal

$

$

Not available

28

Lawn-Boy M054676

Snap Ring

$

$

Not available

29

Lawn-Boy M261612

Cap Screw

$

$

Not available

30

Lawn-Boy M264719

Piston

$

$

Not available

31

Lawn-Boy M264891

Piston Ring

$

$

Not available

32

Lawn-Boy M261036

Piston Pin

$

$

Not available

33

Lawn-Boy M263957

Bearing-Needle

$

$

Not available

34

Lawn-Boy M261576

Clip-Piston

$

$

Not available

35

Lawn-Boy M263719

Crankshaft-Connector Rod Assembly

$444.99

$

Usually ships in 3-6 days

0

37

Lawn-Boy M264026

Clutch Shoe

$

$

Not available

38

Lawn-Boy M264028

Spring-Clutch

$12.99

$

Usually ships in 3-6 days

0

39

Lawn-Boy M264505

Bolt

$

$

Not available

40

Lawn-Boy M261189

Washer

$

$

Not available

41

Lawn-Boy M261777

Wave Washer

$

$

Not available

42

Lawn-Boy M263799

Fan Cover

$

$

Not available

44

Lawn-Boy M263570

Rotor-Fan

$

$

Not available

45

Lawn-Boy M263978

Ignition Coil Assembly (Incl. Ref. #46-52)

$429.99

$

Usually ships in 3-6 days

0

46

Lawn-Boy M263977

Coil

$403.99

$

Usually ships in 3-6 days

0

48

Lawn-Boy M261071

Spark Plug Wire

$

$

Not available

49

Lawn-Boy M261074

Plug Boot

$

$

Not available

50

Lawn-Boy M261075

Connector

$

$

Not available

51

Lawn-Boy M261072

Cap

$

$

Not available

52

Lawn-Boy M261073

Insulator

$

$

Not available

53

Lawn-Boy M261076

Woodruff Key

$

$

Not available

54

Lawn-Boy M261077

Nut-Rotor

$

$

Not available

55

Lawn-Boy M261078

Spacer

$

$

Not available

56

Lawn-Boy M261256

Cap Screw

$

$

Not available

57

Lawn-Boy M261200

Spark Plug (NGK BPM6Y)

$

$

Not available

58

Lawn-Boy M261772

Wire-Coil Ground

$

$

Not available

59

Lawn-Boy M261202

Grommet

$

$

Not available

60

Lawn-Boy M264588

Clamp

$

$

Not available

62

Lawn-Boy M263808

Recoil Assembly (Incl. Ref. #63-68)

$

$

Not available

64

Lawn-Boy M261725

Starter Grip

$

$

Not available

65

Lawn-Boy M261627

Starter Rope

$

$

Not available

66

Lawn-Boy M261622

Spiral Spring

$42.99

$

Usually ships in 3-6 days

0

67

Lawn-Boy M261621

Pulley

$

$

Not available

68

Lawn-Boy M262922

Screw

$

$

Not available

70

Lawn-Boy M263473

Pawl

$16.99

$

Usually ships in 3-6 days

0

71

Lawn-Boy M263474

Return Spring

$

$

Not available

72

Lawn-Boy M263472

Pawl Case

$

$

Not available

73

Lawn-Boy M265460

Plate

$

$

Not available

74

Lawn-Boy M265726

Cap Screw

$

$

Not available

75

Lawn-Boy M264634

Stay

$

$

Not available

76

Lawn-Boy M261878

Nut

$

$

Not available

77

Lawn-Boy M265409

Adapter

$

$

Not available

78

Lawn-Boy M265755

Stand

$

$

Not available

79

Lawn-Boy M265724

Cap Screw

$3.99

$

Usually ships in 3-6 days

0

80

Lawn-Boy M266323

Decal-Toro

$

$

Not available

81

Lawn-Boy M266201

Decal-Toro (Round)

$

$

Not available

82

Lawn-Boy 25-9150

Decal-Serial

$17.99

$

Usually ships in 3-6 days

0

83

Lawn-Boy M266291

Decal-Warning

$

$

Not available

Lawn-Boy M261910

Liquid Gasket

Note: Not Illustrated

$

$

Not available

Lawn-Boy M266193

Engine Assembly

Note: Not Illustrated

$

$

Not available
