53010 (53013) - Toro Straight Shaft Trimmer (SN: 079000001 - 079999999) (1997) ENGINE ASSEMBLY Parts Diagram

Straight Shaft Trimmer

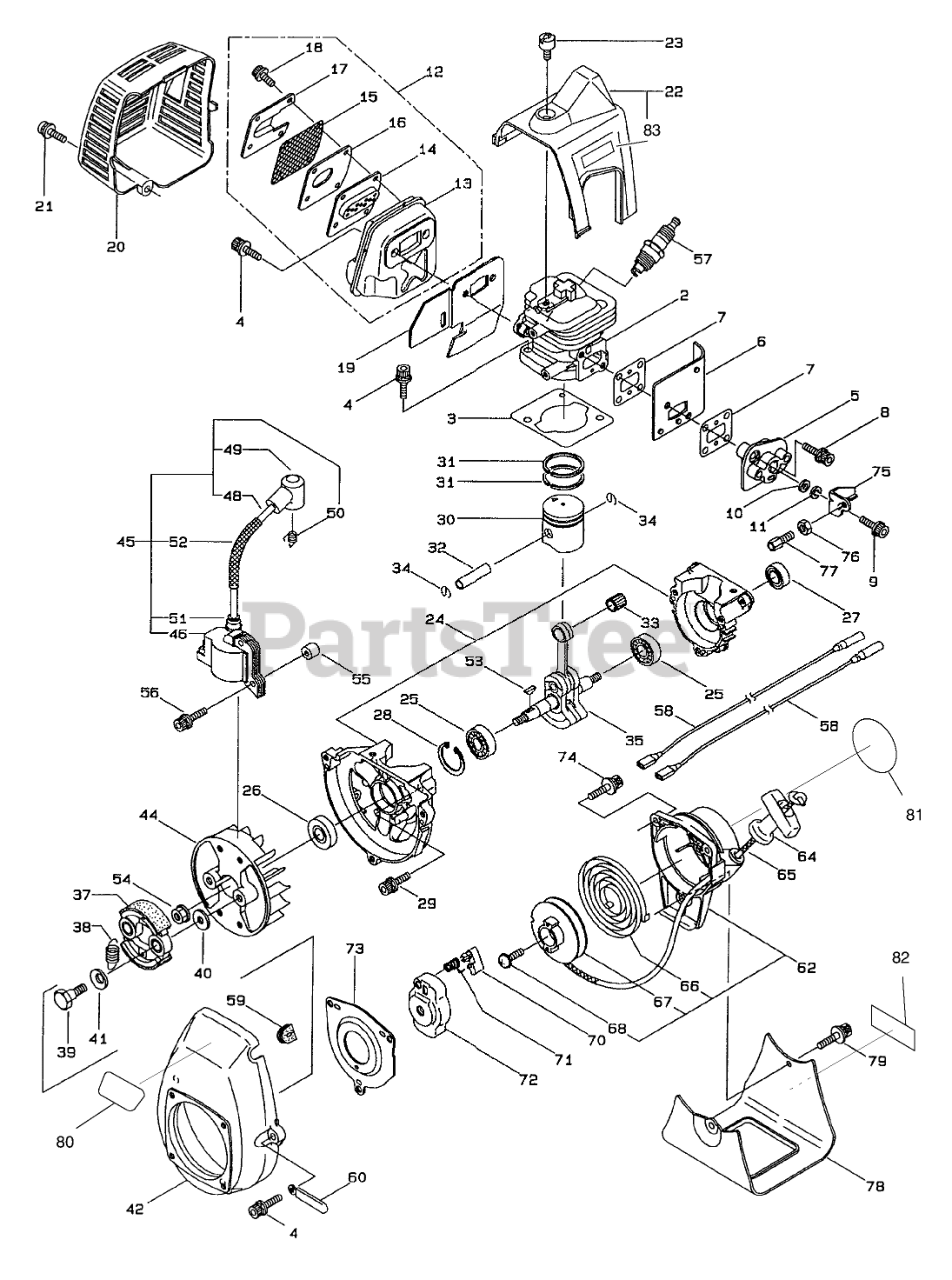

ENGINE ASSEMBLY Parts Diagram

  • Title

2

Toro M264981

CYLINDER

$

$

Not available

3

Toro M263770

GASKET

$

$

Not available

4

Toro M261250

BOLT

$2.99

$

Usually ships in 3-6 days

0

5

Toro M265802

INSULATOR

$

$

Not available

6

Toro M265794

DUCT - AIR

$

$

Not available

7

Toro M261171

GASKET

$

$

Not available

8

Toro M265924

SCREW

$

$

Not available

9

Toro M265925

CAPSCREW

$

$

Not available

10

Toro M012487

WASHER

$

$

Not available

11

Toro M089901

WASHER

$

$

Not available

12

Toro M265104

Muffler Assembly (Incl. Ref. #13-18)

$124.99

$

Usually ships in 3-6 days

0

13

Toro M264832

MUFFLER

$

$

Not available

14

Toro M264864

PLATE

$

$

Not available

15

Toro M264835

SCREEN

$

$

Not available

16

Toro M264837

GASKET

$

$

Not available

17

Toro M264836

OUTLET - EXHAUST

$

$

Not available

18

Toro M265107

CAPSCREW

$

$

Not available

19

Toro M263777

GASKET

$

$

Not available

20

Toro M264829

COVER - MUFFLER

$

$

Not available

21

Toro M264807

CAPSCREW

$

$

Not available

22

Toro M266490

CYLINDER COVER W/DECAL

$

$

Not available

23

Toro M265742

COVER - KNOB,TOP

$

$

Not available

24

Toro M264312

CRANKCASE

$

$

Not available

25

Toro M261181

BEARING

$

$

Not available

26

Toro M262712

SEAL - OIL

$8.99

$

Usually ships in 3-6 days

0

27

Toro M262713

SEAL - OIL

$

$

Not available

28

Toro M054676

RING - SNAP

$

$

Not available

29

Toro M261612

BOLT

$

$

Not available

30

Toro M264719

PISTON

$

$

Not available

31

Toro M264891

RING - PISTON

$

$

Not available

32

Toro M261036

PIN - PISTON

$

$

Not available

33

Toro M263957

BEARING - NEEDLE

$

$

Not available

34

Toro M261576

CIRCLIP

$

$

Not available

35

Toro M263719

ASM - CHANKSHAFT ROD

$444.99

$

Usually ships in 3-6 days

0

37

Toro M264026

SHOE - CLUTCH

$

$

Not available

38

Toro M264028

SPRING - CLUTCH

$12.99

$

Usually ships in 3-6 days

0

39

Toro M264505

BOLT - CLUTCH

$

$

Not available

40

Toro M261189

WASHER

$

$

Not available

41

Toro M261777

WASHER - WAVE

$

$

Not available

42

Toro M263799

COVER - FAN

$

$

Not available

44

Toro M263570

FAN - ROTOR

$

$

Not available

45

Toro M263978

Ignition Coil Assembly (Incl. Ref. #46-52)

$429.99

$

Usually ships in 3-6 days

0

46

Toro M263977

COIL

$403.99

$

Usually ships in 3-6 days

0

48

Toro M261071

CABLE - IGNITION

$

$

Not available

49

Toro M261074

CAP - PLUG

$

$

Not available

50

Toro M261075

CONNECTOR

$

$

Not available

51

Toro M261072

CAP

$

$

Not available

52

Toro M261073

TUBE

$

$

Not available

53

Toro M261076

KEY - WOODRUFF

$

$

Not available

54

Toro M261077

NUT

$

$

Not available

55

Toro M261078

SPACER

$

$

Not available

56

Toro M261256

BOLT

$

$

Not available

57

Toro M261200

SPARK PLUG

$

$

Not available

58

Toro M261772

LEAD

$

$

Not available

59

Toro M261202

GROMMET

$

$

Not available

60

Toro M264588

CLAMP

$

$

Not available

62

Toro M263808

Recoil Assembly (Incl. Ref. #63-68)

$

$

Not available

64

Toro M261725

GRIP - STARTER

$

$

Not available

65

Toro M261627

ROPE - STARTER

$

$

Not available

66

Toro M261622

SPRING - SPIRAL

$42.99

$

Usually ships in 3-6 days

0

67

Toro M261621

REEL

$

$

Not available

68

Toro M262922

SCREW

$

$

Not available

70

Toro M263473

PAWL

$16.99

$

Usually ships in 3-6 days

0

71

Toro M263474

SPRING - RETURN

$

$

Not available

72

Toro M263472

CASE - PAWL

$

$

Not available

73

Toro M265460

PLATE

$

$

Not available

74

Toro M265726

BOLT

$

$

Not available

75

Toro M264634

STAY

$

$

Not available

76

Toro M261878

NUT

$

$

Not available

77

Toro M265409

ADAPTER - SCREW

$

$

Not available

78

Toro M265755

STAND - ENGINE

$

$

Not available

79

Toro M265724

CAPSCREW

$3.99

$

Usually ships in 3-6 days

0

80

Toro M266323

DECAL - TORO

$

$

Not available

81

Toro M266201

LABEL - ENGINE

$

$

Not available

82

Toro 25-9150

REPLACEMNT SERIAL PLT

$17.99

$

Usually ships in 3-6 days

0

83

Toro M266291

DECAL - WARNING

$

$

Not available

Toro M261910

LIQUID GASKET

Note: Not illustrated

$

$

Not available

Toro M266193

ASM - ENGINE,LE230/36

Note: Not illustrated

$

$

Not available
