53010 (53013) - Toro Straight Shaft Trimmer (SN: 079000001 - 079999999) (1997) Gearcase Assembly Parts Diagram

Straight Shaft Trimmer

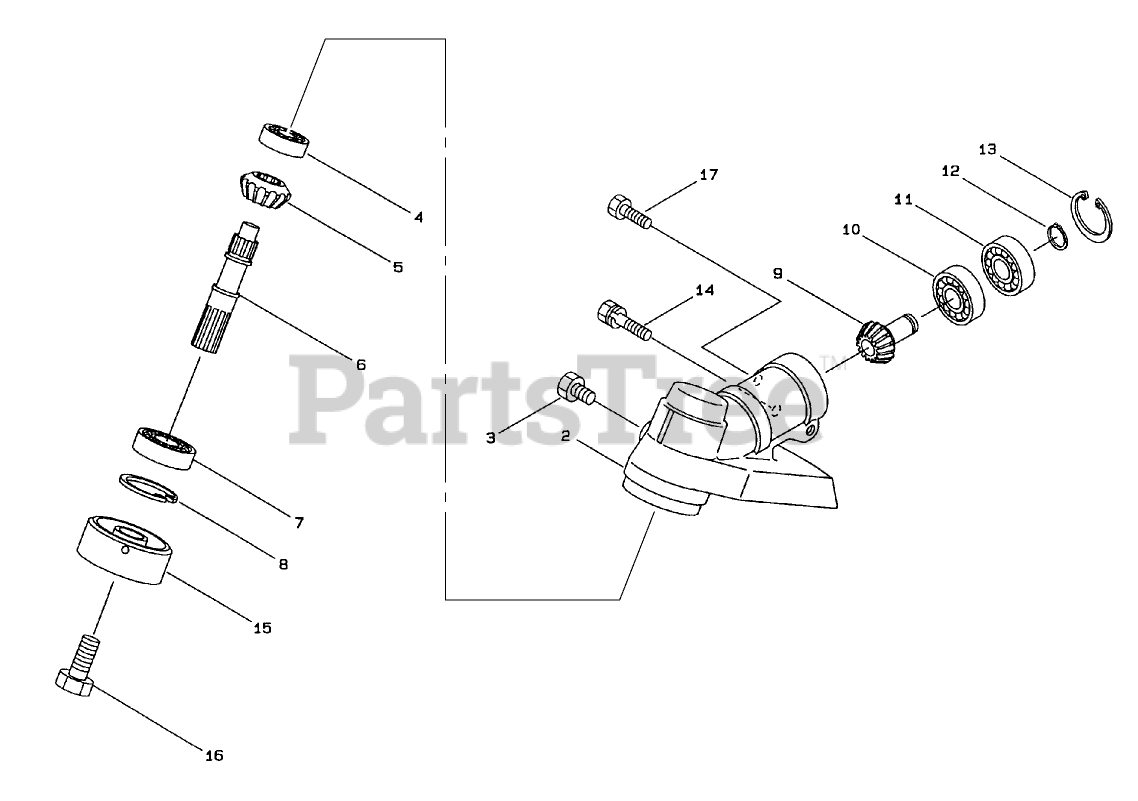

Gearcase Assembly Parts Diagram

  • Title

2

Toro M219077

DISCONTINUED

$

$

Not available

3

Toro M089884

BOLT

$

$

Not available

4

Toro M210554

BEARING

$

$

Not available

5

Toro M210555

GEAR

$126.99

$

Usually ships in 3-6 days

0

6

Toro M215762

SHAFT - BLADE

$

$

Not available

7

Toro M212999

DISCONTINUED

$

$

Not available

8

Toro M055185

RING - SNAP

$

$

Not available

9

Toro M215544

GEAR - PINION

$109.99

$

Usually ships in 3-6 days

0

10

Toro M210560

BEARING

$

$

Not available

11

Toro M140268

BEARING

$

$

Not available

12

Toro M140269

RING - SNAP

$

$

Not available

13

Toro M140270

DISCONTINUED

$

$

Not available

14

Toro M092561

BOLT

$

$

Not available

15

Toro M221467

ADAPTER - BOSS

$

$

Not available

16

Toro M221998

Bolt

$

$

Currently unavailable

17

Toro M089737

DISCONTINUED

$

$

Not available

Toro M221435

ASM - GEARCASE

Note: Not illustrated

$

$

Not available
