53010 (53013) - Toro Straight Shaft Trimmer (SN: 089005001 - 089009999) (1998) HEAD, SHAFT AND SHIELD ASSEMBLY Parts Diagram

Straight Shaft Trimmer

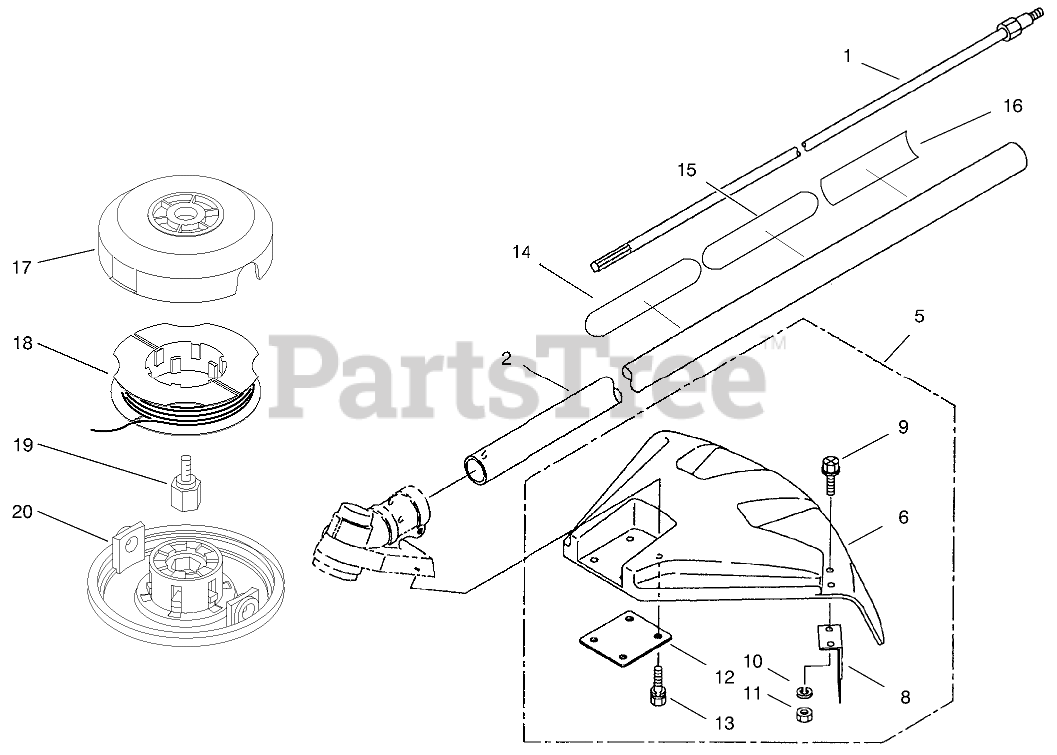

HEAD, SHAFT AND SHIELD ASSEMBLY Parts Diagram

  • Title

1

Toro M220064

ASM - DRIVESHAFT

$146.99

$

Usually ships in 3-6 days

0

2

Toro M221753

Driveshaft Tube Assembly (Incl. Ref. #14,15)

$

$

Not available

5

Toro M221436

Safety Cover Assembly (Incl. Ref. # 6-13)

$

$

Not available

6

Toro M221403

COVER - SATETY

$87.99

$

Usually ships in 3-6 days

0

8

Toro M221438

CUTTER - STRING

$22.99

$

Usually ships in 3-6 days

0

9

Toro M092560

BOLT

$

$

Not available

10

Toro M012501

WASHER - SPRING

$

$

Not available

11

Toro M081027

NUT M5

$2.49

$

Usually ships in 3-6 days

0

12

Toro M221469

PLATE

$

$

Not available

13

Toro M092579

BOLT

$

$

Not available

14

Toro M221502

DECAL - CAUTION

$

$

Not available

15

Toro M221501

DECAL - CAUTION

$

$

Not available

16

Toro M221500

DECAL - TORO

$

$

Not available

17

Toro 99-8504

CAP

$

$

Not available

18

Toro 99-8505

SPOL W/ LINE

$

$

Not available

19

Toro 99-8506

MOUNTING STUD

$

$

Not available

20

Toro 99-8507

INDEXING BASE

$

$

Not available

Toro 99-8508

5" Head Assembly (Incl. Ref. #17-20)

Note: Not illustrated

$161.99

$

Usually ships in 3-6 days

0

Toro M221437

String Cutter Assembly (Incl. Ref. #8-11)

Note: Not illustrated

$

$

Not available
