53011 (53005) - Lawn-Boy Straight Shaft String Trimmer (SN: 000895001 - 000899999) (1998) ENGINE ASSEMBLY Parts Diagram

Straight Shaft String Trimmer

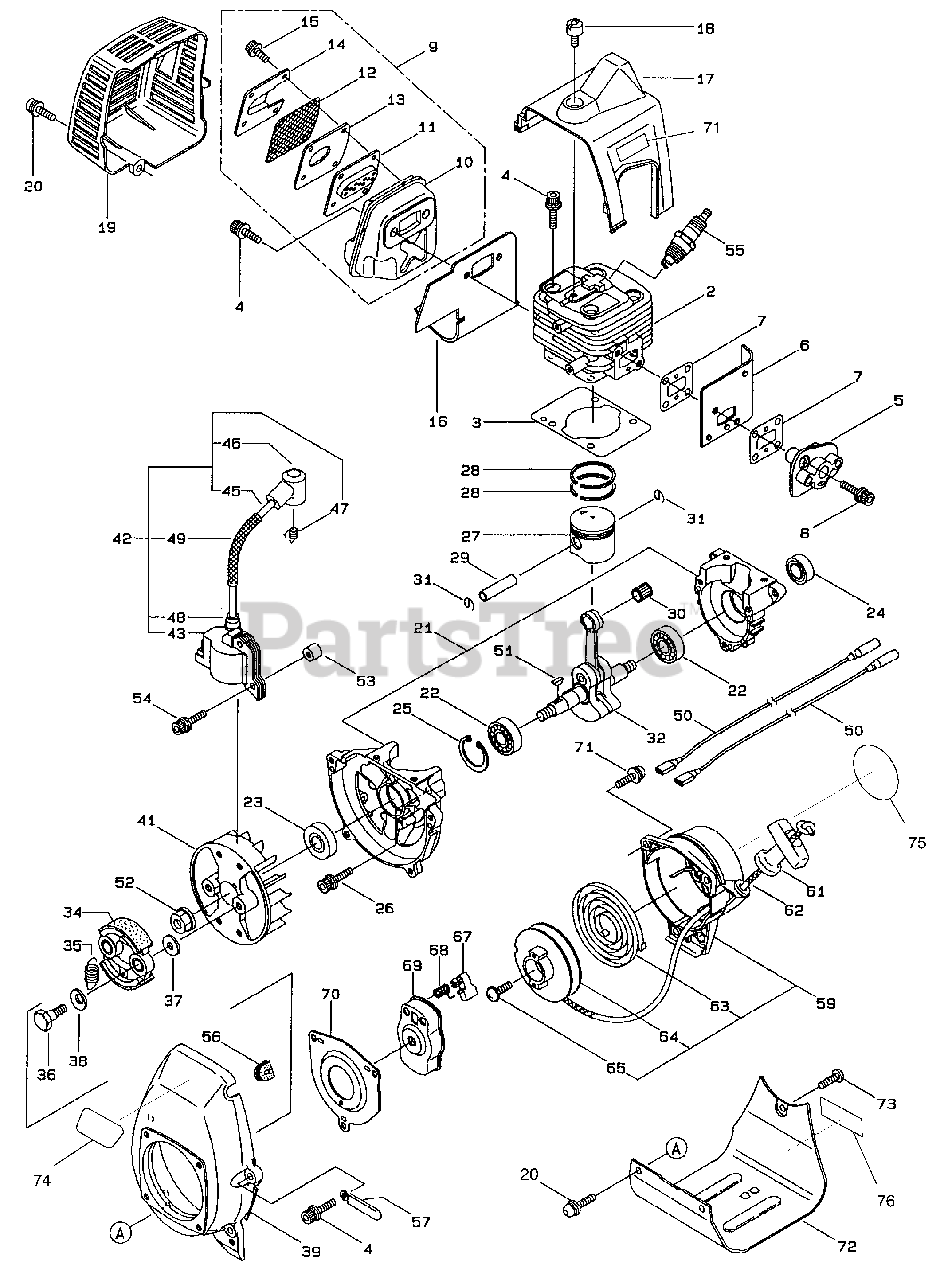

ENGINE ASSEMBLY Parts Diagram

  • Title

2

Lawn-Boy M264989

Cylinder

$470.99

$

Usually ships in 3-6 days

0

3

Lawn-Boy M265001

Gasket

$

$

Not available

4

Lawn-Boy M261250

Cap Screw

$2.99

$

Usually ships in 3-6 days

0

5

Lawn-Boy M265802

Insulator

$

$

Not available

6

Lawn-Boy M265470

Air Duct

$

$

Not available

7

Lawn-Boy M261171

Gasket

$

$

Not available

8

Lawn-Boy M265924

Cap Screw

$

$

Not available

9

Lawn-Boy M264993

Muffler Assembly (Incl. Ref. #10-15)

$157.99

$

Usually ships in 3-6 days

0

10

Lawn-Boy M265063

Muffler

$

$

Not available

11

Lawn-Boy M264864

Plate

$

$

Not available

12

Lawn-Boy M264835

Screen

$

$

Not available

13

Lawn-Boy M264837

Gasket

$

$

Not available

14

Lawn-Boy M264836

Tail

$

$

Not available

15

Lawn-Boy M265107

Cap Screw

$

$

Not available

16

Lawn-Boy M265133

Gasket

$

$

Not available

17

Lawn-Boy M266491

Cylinder Cover

$

$

Not available

18

Lawn-Boy M265742

Knob

$

$

Not available

19

Lawn-Boy M265004

Muffler Cover

$

$

Not available

20

Lawn-Boy M264807

Cap Screw

$

$

Not available

21

Lawn-Boy M265006

Crankcase

$297.99

$

Usually ships in 3-6 days

0

22

Lawn-Boy M261491

Bearing

$

$

Not available

23

Lawn-Boy M261492

Oil Seal

$

$

Not available

24

Lawn-Boy M261386

Oil Seal

$

$

Not available

25

Lawn-Boy M055185

Snap Ring

$

$

Not available

26

Lawn-Boy M261612

Cap Screw

$

$

Not available

27

Lawn-Boy M265012

Piston

$

$

Not available

28

Lawn-Boy M261496

Piston Ring

$

$

Not available

29

Lawn-Boy M261497

Piston Pin

$

$

Not available

30

Lawn-Boy M261037

Bearing-Needle

$

$

Not available

31

Lawn-Boy M261576

Clip-Piston

$

$

Not available

32

Lawn-Boy M265197

Crankcase-Connector Rod Assembly

$503.99

$

Usually ships in 3-6 days

0

34

Lawn-Boy M264026

Clutch Shoe

$

$

Not available

35

Lawn-Boy M264028

Spring-Clutch

$14.99

$

Usually ships in 3-6 days

0

36

Lawn-Boy M264505

Bolt

$

$

Not available

37

Lawn-Boy M261189

Washer

$

$

Not available

38

Lawn-Boy M261777

Wave Washer

$

$

Not available

39

Lawn-Boy M266158

Fan Cover

$

$

Not available

41

Lawn-Boy M261356

Rotor-Fan

$

$

Not available

42

Lawn-Boy M261301

Ignition Coil Assembly (Incl. Ref. #43-49)

$

$

Not available

43

Lawn-Boy M261302

Coil

$

$

Not available

45

Lawn-Boy M261071

Spark Plug Wire

$

$

Not available

46

Lawn-Boy M261074

Plug Boot

$

$

Not available

47

Lawn-Boy M261075

Connector

$

$

Not available

48

Lawn-Boy M261072

Cap

$

$

Not available

49

Lawn-Boy M261073

Insulator

$

$

Not available

50

Lawn-Boy M261772

Wire-Coil Ground

$

$

Not available

51

Lawn-Boy M261076

Woodruff Key

$

$

Not available

52

Lawn-Boy M261417

Nut-Rotor

$

$

Not available

53

Lawn-Boy M261078

Spacer

$

$

Not available

54

Lawn-Boy M261256

Cap Screw

$

$

Not available

55

Lawn-Boy M261200

Spark Plug (NGK BPM6Y)

$

$

Not available

56

Lawn-Boy M261202

Grommet

$

$

Not available

57

Lawn-Boy M264588

Clamp

$

$

Not available

59

Lawn-Boy M265019

Recoil Assembly (Incl. Ref. #60-65)

$

$

Not available

61

Lawn-Boy M261725

Starter Grip

$

$

Not available

62

Lawn-Boy M261724

Starter Rope

$

$

Not available

63

Lawn-Boy M261721

Spiral Spring

$

$

Not available

64

Lawn-Boy M261720

Pulley

$

$

Not available

65

Lawn-Boy M262922

Screw

$

$

Not available

67

Lawn-Boy M263477

Pawl

$18.99

$

Usually ships in 3-6 days

0

68

Lawn-Boy M261728

Return Spring

$

$

Not available

69

Lawn-Boy M263476

Pawl Case

$

$

Not available

70

Lawn-Boy M264999

Plate

$

$

Not available

71

Lawn-Boy M266291

Decal-Warning

$

$

Not available

72

Lawn-Boy M266025

Stand

$

$

Not available

73

Lawn-Boy M266190

Screw

$

$

Not available

74

Lawn-Boy M266323

Decal-Toro

$

$

Not available

75

Lawn-Boy M266211

Decal-Toro (Round)

$

$

Not available

76

Lawn-Boy 25-9150

Decal-Serial

$20.99

$

Usually ships in 3-6 days

0

Lawn-Boy M261910

Liquid Gasket

Note: Not Illustrated

$

$

Not available

Lawn-Boy M266204

Engine Assembly

Note: Not Illustrated

$

$

Not available
