53011 (53005) - Toro Straight Shaft Trimmer (SN: 089000001 - 089050000) (1998) HEAD, SHAFT AND SHIELD ASSEMBLY Parts Diagram

Straight Shaft Trimmer

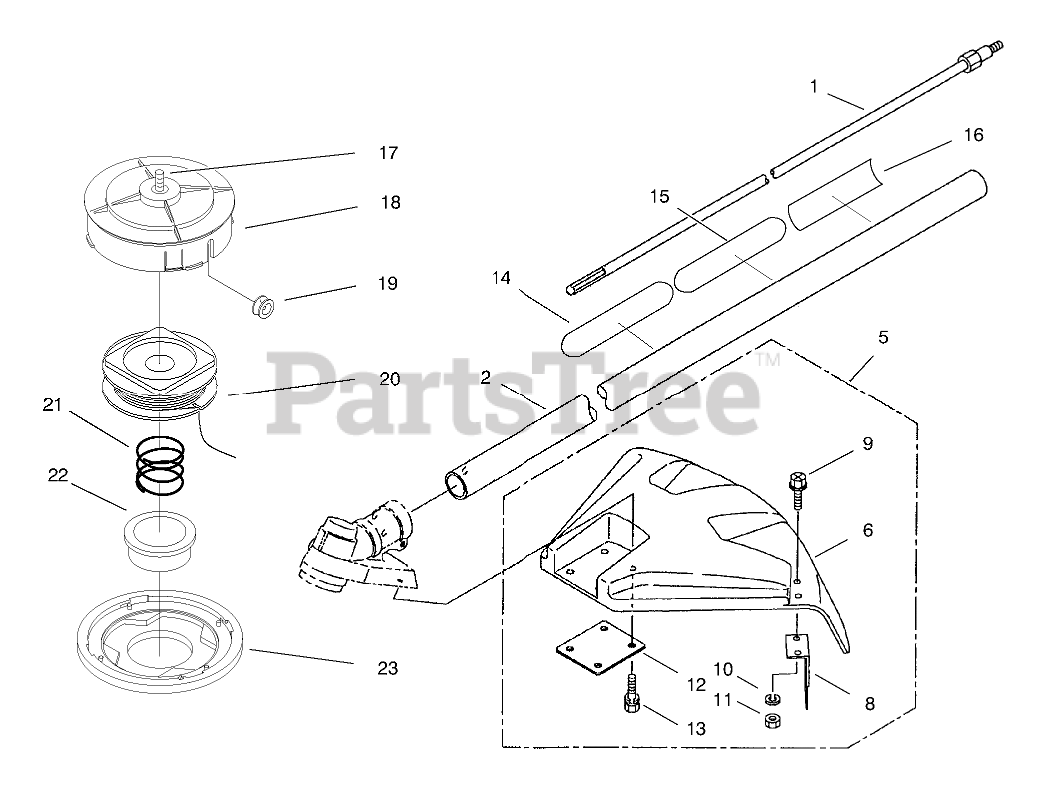

HEAD, SHAFT AND SHIELD ASSEMBLY Parts Diagram

  • Title

1

Toro M219268

ASM - DRIVESHAFT

$129.99

$

Usually ships in 3-6 days

0

2

Toro M221753

Driveshaft Tube Assembly (Incl. Ref. #14, 15)

$

$

Not available

5

Toro M221436

Safety Cover Assembly (Incl. Ref. #6-13)

$

$

Not available

6

Toro M221403

COVER - SATETY

$87.99

$

Usually ships in 3-6 days

0

8

Toro M221438

CUTTER - STRING

$22.99

$

Usually ships in 3-6 days

0

9

Toro M092560

BOLT

$

$

Not available

10

Toro M012501

WASHER - SPRING

$

$

Not available

11

Toro M081027

NUT M5

$2.49

$

Usually ships in 3-6 days

0

12

Toro M221469

PLATE

$

$

Not available

13

Toro M092579

BOLT

$

$

Not available

14

Toro M221502

DECAL - CAUTION

$

$

Not available

15

Toro M221501

DECAL - CAUTION

$

$

Not available

16

Toro M221500

DECAL - TORO

$

$

Not available

17

Toro 95-7468

BOLT

$

$

Not available

18

Toro 95-7451

HOUSING

$51.99

$

Usually ships in 3-6 days

0

19

Toro 95-7450

EYELET

$2.99

$

In Stock, Qty 9

0

20

Toro 95-7455

SPOOL W/LINE (LH)

$36.99

$

Usually ships in 3-6 days

0

Toro 95-7452

SPOOL

Note: Not illustrated

$37.99

$

Usually ships in 3-6 days

0

21

Toro 95-7465

SPRING

$

$

Not available

22

Toro 95-7453

BUTTON

$14.99

$

In Stock, only 1 left!

0

23

Toro 95-7454

COVER (SN-348L)

$43.99

$

In Stock, only 3 left!

0

Toro 95-4424

4" Head Assembly (Incl. Ref. #17-23)

Note: Not illustrated

$

$

Not available

Toro M221437

String Cutter Assembly (Incl. Ref. #8-11)

Note: Not illustrated

$

$

Not available
