53011 (53005) - Toro Straight Shaft Trimmer (SN: 089005001 - 089009999) (1998) CARBURETOR AND FUEL ASSEMBLY Parts Diagram

Straight Shaft Trimmer

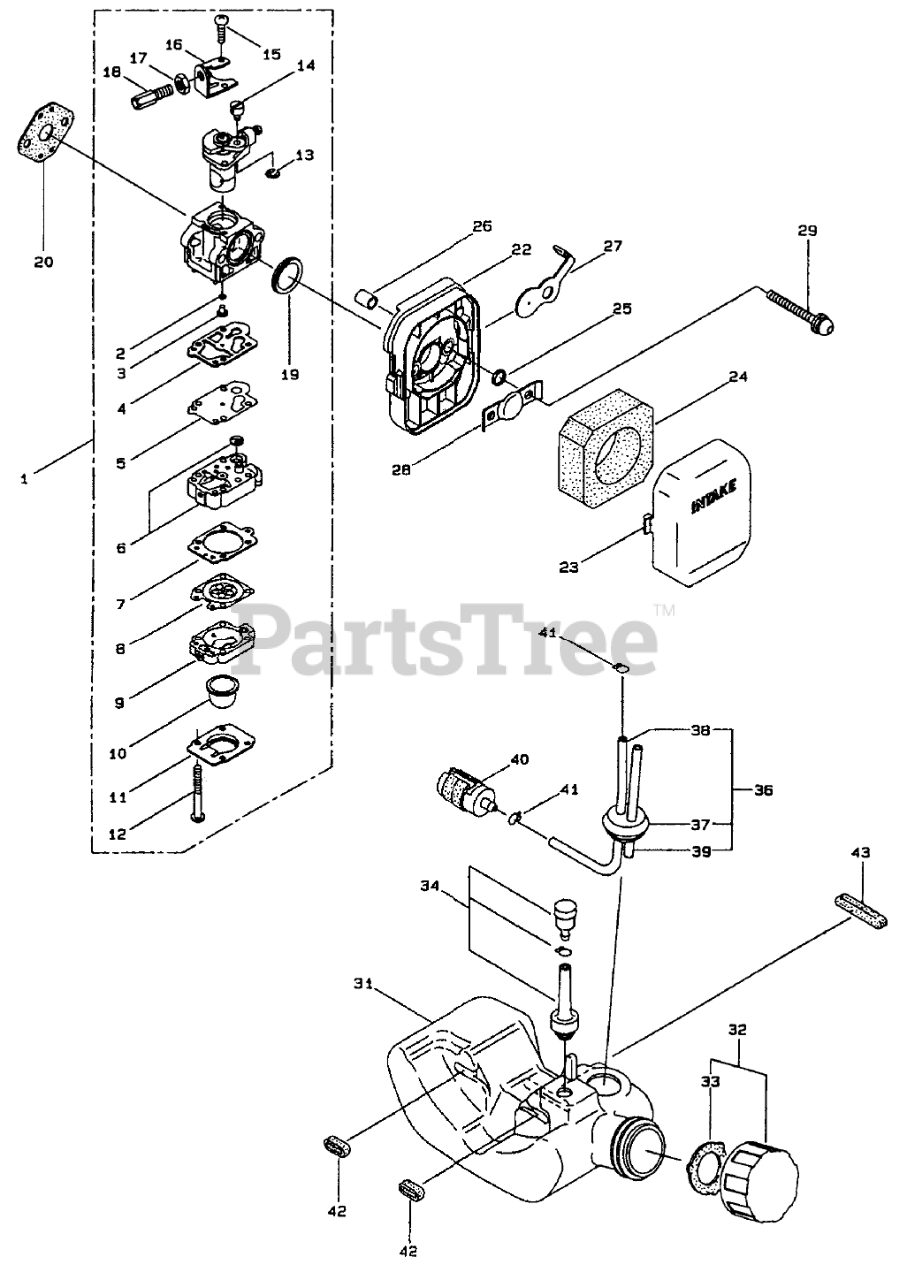

CARBURETOR AND FUEL ASSEMBLY Parts Diagram

  • Title

1

Toro M266150

Carburetor Assembly (Incl. Ref. # 2-19)

$462.99

$

Usually ships in 3-6 days

0

2

Toro M261871

O-RING

$7.49

$

Usually ships in 3-6 days

0

3

Toro M266462

JET - MAIN #41.5

$

$

Not available

4

Toro M262995

GASKET (NC)

$17.99

$

Usually ships in 3-6 days

0

5

Toro M262994

PUMP - DIAPHRAGM (NC)

$

$

Not available

6

Toro M264155

PUMP - BODY (NC)

$

$

Not available

7

Toro M262993

GASKET (NC)

$

$

Not available

8

Toro M261873

ASM - DIAPHRAGM

$

$

Not available

9

Toro M262991

PURGE - BODY (NC)

$

$

Not available

10

Toro M261874

PRIMER

$22.99

$

In Stock, only 1 left!

0

11

Toro M262992

PLATE - COVER (NC)

$

$

Not available

12

Toro M262996

SCREW (NC)

$

$

Not available

13

Toro M261876

E-RING

$

$

Not available

14

Toro M261658

SWIVEL

$

$

Not available

15

Toro M261875

Screw
(Superseded to M260607)

$

$

Not available

16

Toro M264677

BRACKET

$40.99

$

Usually ships in 3-6 days

0

17

Toro M261878

NUT

$

$

Not available

18

Toro M263994

ADJUSTER

$

$

Not available

19

Toro M261657

PACKING

$

$

Not available

20

Toro M261864

GASKET

$5.49

$

Usually ships in 3-6 days

0

22

Toro M263005

HOUSING

$

$

Not available

23

Toro M262998

COVER

$

$

Not available

24

Toro M263006

ELEMENT

$

$

Not available

25

Toro M263000

WASHER

$

$

Not available

26

Toro M263001

SLEEVE

$

$

Not available

27

Toro M266423

VALVE - CHECK

$

$

Not available

28

Toro M263003

PLATE

$

$

Not available

29

Toro M264016

CAPSCREW

$

$

Not available

31

Toro M265032

TANK - FUEL

$

$

Not available

32

Toro M264784

Fuel Tank Cap Assembly (Incl. Ref. # 34)

$24.99

$

Usually ships in 3-6 days

0

33

Toro M261105

PACKING

$4.49

$

In Stock, only 1 left!

0

34

Toro M261696

ASM - BREATHER

$

$

Not available

36

Toro M265867

Fuel Pipe Assembly (Incl. Ref. # 38-40)

$

$

Not available

37

Toro M265869

GROMMET

$16.99

$

Usually ships in 3-6 days

0

38

Toro M261690

PIPE - FUEL

$16.99

$

Usually ships in 3-6 days

0

39

Toro M263038

PIPE - RETURN

$2.99

$

Usually ships in 3-6 days

0

40

Toro M261797

ASM - FUEL FILTER

$

$

Not available

41

Toro M261117

CLIP

$

$

Not available

42

Toro M264318

PAD

$

$

Not available

43

Toro M263824

PAD

$

$

Not available
